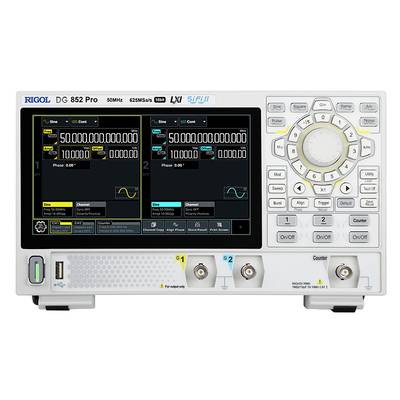

A function generator with a digital display showing two waveforms. Controls and connections are located underneath.

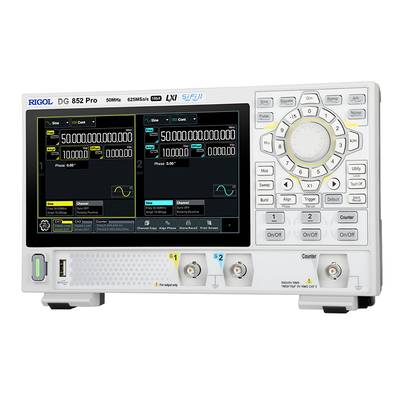

Function generator with digital display, showing signal waveforms and phase alignment. Multiple buttons for control.

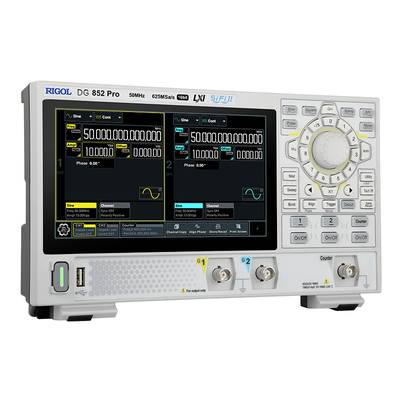

'Rigol DG 852 Pro Signal Generator with dual screens, displaying signal waveforms and settings. Control elements located on the right.'

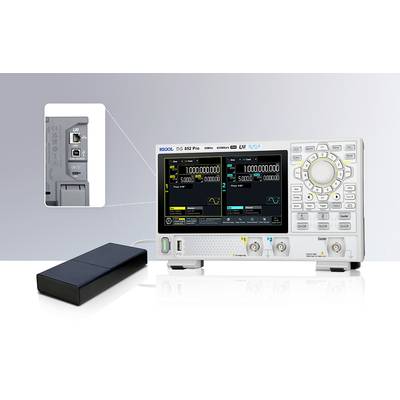

The image shows a function generator with a display and keypad. An inset highlights the connections. The panel displays frequency and amplitude settings.

A digital oscilloscope mounted on a black, mechanical arm displays two sinusoidal signals on its screen.

A hand operates an oscilloscope with a 7-inch screen. The display shows technical data and waveforms.

Rigol DG852 Pro Mains-powered 1 µHz - 50 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary, Noise-7

1/8

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 494.96 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Arbitrary Function Generator

16-bit vertical resolution
Sample rate 625 MSa/s
Display 17.l8 cm (7") Touch Screen, 1024 x 600

Technical specifications

16-bit vertical resolution
625 MSa/s sample rate
Dimensions depth 80 mm
7" touchscreen, 1024 x 600

Frequency range: 1 µHz - 50 MHz

Frequency range (sine): 1 μHz - 50 MHz

Frequency range square wave: 1 μHz - 40 MHz

ARB frequency range: 1 µHz - 15 MHz

Internal modulation: AM, FM, PM, ASK, FSK, PSK, PWM, SUM

Dim: (W x H) 266 mm x 165 mm

Weight: 1.78 kg

Height: 165 mm

Width: 266 mm

Max. frequency: 50 MHz

: Manufacturer's standards (no certificate)

No. of channels: 2-channel

Interfaces: USB device
USB host
LAN

Voltage supply: Mains

Signal output types: Sinus
Rectangle
Ramp
Pulse
Arbitrary
Noise

Type: DG852 Pro

Min. frequency: 1 µHz

Product type: Mains-powered

Documents & Downloads

Datasheet

Datasheet 3046558 Rigol DG852 Pro Mains-powered 1 µHz - 50 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary, Noise

User & Safety Instructions

User & Safety Instructions 3046558 Rigol DG852 Pro Mains-powered 1 µHz - 50 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary, Noise

Warranty Terms

Warranty Terms 3046558 Rigol DG852 Pro Mains-powered 1 µHz - 50 MHz 2-channel Sinus, Rectangle, Ramp, Pulse, Arbitrary, Noise

Description

The function/arbitrary wave generator of the DG800 Pro series offers a scanning rate of up to 625 MSa/s and 2 Mpts/CH memory depth (standard). It is a cost-effective function/arbitrary waveform generator function/arbitrary waveform generator, which has several functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, Analogue/digital modulator and counter.
