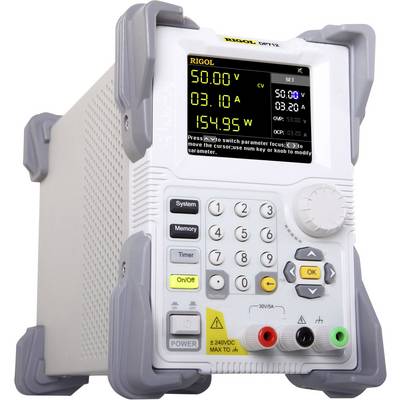

Rigol DP712 Bench PSU (adjustable voltage) 0 - 50 0 - 3 A 150 W RS232 remote controlled, OVP, programmable No. of output
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 310.08 / piece)
€ 310.08
plus VAT.
14-day return policy included
Highlights & Details
LAB. P/S UNIT DP712
- No. of outputs 1 x
- 0 - 50 / 0 - 3 A
- 150 W
- RS232
- remote controlled, OVP, programmable
Technical specifications
- Type
DP712
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
1 x
150 W
- Technology
Linear regulated PSU
- Interfaces
RS232
- Features
remote controlled
OVP
programmable
- Dim
(L x W x H) 332 x 140 x 202 mm
Manufacturer's standards (no certificate)
- Input voltage
115 V AC
240 V AC
- Weight
6.9 kg
- Output
4 mm socket
- Output voltage (max.)
50 V
- Output voltage (min.)
0 V
- Max. output current
3 A
- Output current (min.)
0 A
- Load balance
<0.01% + 2 mV
- Mains supply
IEC 320 C14
- Mains control
0.01% + 2 mV
- Width
140 mm
- Height
202 mm
- Length
332 mm
- Residual ripple
3 mVpp
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1517921 Rigol DP712 Bench PSU (adjustable voltage) 0 - 50 0 - 3 A 150 W RS232 remote controlled, OVP, programmable No. of output
User & Safety Instructions
User & Safety Instructions 1517921 Rigol DP712 Bench PSU (adjustable voltage) 0 - 50 0 - 3 A 150 W RS232 remote controlled, OVP, programmable No. of output
User & Safety Instructions 1517921 Rigol DP712 Bench PSU (adjustable voltage) 0 - 50 0 - 3 A 150 W RS232 remote controlled, OVP, programmable No. of output
User & Safety Instructions 1517921 Rigol DP712 Bench PSU (adjustable voltage) 0 - 50 0 - 3 A 150 W RS232 remote controlled, OVP, programmable No. of output
Warranty Terms
Warranty Terms 1517921 Rigol DP712 Bench PSU (adjustable voltage) 0 - 50 0 - 3 A 150 W RS232 remote controlled, OVP, programmable No. of output
Description
ThisDP712 is a linear controlled laboratory power supply unit with a large clear color TFT display. On the back of the serial RS232 interface, the device can be programd and can be controlled by remote. In order to prevent incorrect conditions or external access to the control unit to prevent the front panel electronically locked.
Features
- Highly responsive protection functions: OVP (<10 ms), OCP, OTP
- Real-time measurement and display of the outgoing parameter (V, A, W)
- Very low ripple< 500 µVrms
- Very good response to a load or change of mains supply
- Height Display and setting resolution of 10 mV/10 mA, high resolution optionally expandable (1 mV / 1 mA)
- Fan cooled
- Sense port
- 8.89 cm color display
- Trigger and timing functions optionally expandable
- This text is machine translated.
Scope of delivery
- Power cord
- User manual.
Hints
RS232-interface cable not included in delivery. The latest drivers and software versions can be downloaded free of charge from the manufacturer.
