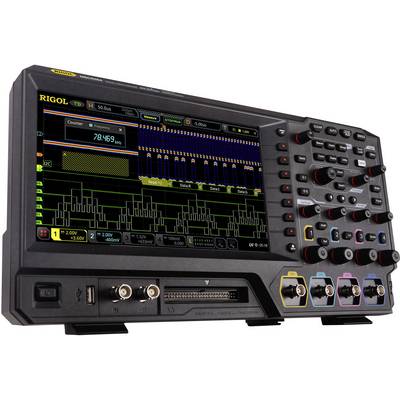

Rigol MSO5204 Digital 200 MHz 8 GS/s 100 MP 8 Bit 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Rigol MSO5204 Digital 200 MHz 8 GS/s 100 MP 8 Bit 1 pc(s)
- 200 MHz
- No. of analogue inputs 4
Technical specifications
- 16 digital inputs (PLA 2216 required - not included)
- Displays
LCD
- Screen size
9 Zoll (22,86cm)
- Vertical deflection
1 mV/div - 10 V/div
- Input impedance
1 MΩ ±1 %
- Input coupling
AC or DC
- Power supply (details)
100 V - 240 V
- Dim
(L x W x H) 130 x 367 x 200 mm
- Weight
3.5 kg
- Height
200 mm
- Length
130 mm
- Width
367 mm
- Display
1024 x 600
- No. of analogue inputs
4
Manufacturer's standards (no certificate)
- Interfaces
LAN
USB
- Reading category
CAT I
- Type
MSO5204
- Bandwidth
200 MHz
- Channel memory depth
100 MP
- Resolution
8 Bit
- Channel sample rate
8 GS/s
- Product type
Digital
Documents & Downloads
Datasheet
Datasheet 1883455 Rigol MSO5204 Digital 200 MHz 8 GS/s 100 MP 8 Bit 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1883455 Rigol MSO5204 Digital 200 MHz 8 GS/s 100 MP 8 Bit 1 pc(s)
User & Safety Instructions 1883455 Rigol MSO5204 Digital 200 MHz 8 GS/s 100 MP 8 Bit 1 pc(s)
Conformity certificate
Conformity certificate 1883455 Rigol MSO5204 Digital 200 MHz 8 GS/s 100 MP 8 Bit 1 pc(s)
Description
The model MSO5204 is a 200 MHz 4-channel digital oscilloscope with 8 GS/sec/Channel sample rate and with excellent properties such as: a very large memory depth up to 200 MioPkt as well as integrated serial bus triggering and a 9-inch touch color display, for optimum display of measured signals. LAN, USB and HDMI control are standard, as well as many math functions.
This text is machine translated.
This text is machine translated.
Features
- Automatic measurement of 41 waveform parameters; full memory hardware measurement functionA variety of triggers and decodes for serial protocolsUp to 450,000 frames with hardware real-time and continuous waveform recording and playback capabilities9-inch (22.86cm) capacitive multi-touch screen, 256-level intensity level displayUnique online upgrade offerInnovative and filigree industrial design, easy to useIntegrated 7 independant instruments in 1: Digital oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, Frequency counter, protocol analyzer
Scope of delivery
- Basic device
- Power cord
- 4 x probes PVP2350 350 MHz
- Quick guide
- Driver
- Calibration certificate
Hints
The memory depth per channel is, total memory due to the used channels.Including option package MSO5000-BND, valid till 31.12.2022
