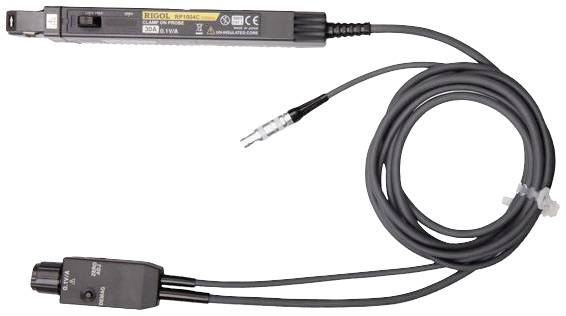

Rigol RP1004C Clamp meter
EAN:
Part number:
Item no:
Number
Total (€ 4,861.34 / piece)
€ 4,861.34
plus VAT.
14-day return policy included
Highlights & Details
RP1004C
- Requires the RP1000P power supply for the supply
Technical specifications
- Product type
Clamp meter
- Amperage reading range DC (min.)
5 mA
- A DC reading range (max.)
30 A
- A AC reading range (min.)
5 mA
- Amperage reading range AC (max.)
30 A
- Frequency range
DC 100 MHz
- Interfaces
BNC
- Power supply (details)
RP1000P
- Height
18 mm
- Width
40 mm
- Length
175 mm
- Weight
240 g
Manufacturer's standards (no certificate)
- Current reading
AC/DC
- Type
RP1004C
- Dim
(L x W x H) 175 x 40 x 18 mm
- Interfaces
BNC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2615543 Rigol RP1004C Clamp meter
Warranty Terms
Warranty Terms 2615543 Rigol RP1004C Clamp meter
Description
This current probe can be connected directly to a BNC input connector of a waveform meter measuring device. By clamping the sensor head onto a conductor to be measured, the probe can easily detect the current waveforms.
This text is machine translated.
This text is machine translated.
Features
- Highly accurate current detectionSimple current measurementSimple protection function when the input is too high
Scope of delivery
- 1 x clamp-on ammeter
System requirements
- RP1000P supply is required. Can be used for all Rigol oscilloscopes
