1/3
Rittal 2243.605 19" wall cabinet (W x H x D) 600 x 212 x 373 mm 3 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
Total (€ 343.70 / piece)
€ 343.70
plus VAT.
Technical specifications
- Product type
19" wall cabinet
- Rack unit
3 U
- Width
600 mm
- Height
212 mm
- Depth
373 mm
- Material
Safety glass
Steel
- Dim
(W x H x D) 600 x 212 x 373 mm
- Weight
0.000
- Factory colour
Grey-white (RAL 7035)
- Wireless charging
No
Grey
600
Other
212 mm
373 mm
7035
1
15 t
Steel
IP55
Powder coating
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 629069 Rittal 2243.605 19" wall cabinet (W x H x D) 600 x 212 x 373 mm 3 U Grey-white (RAL 7035)
Description

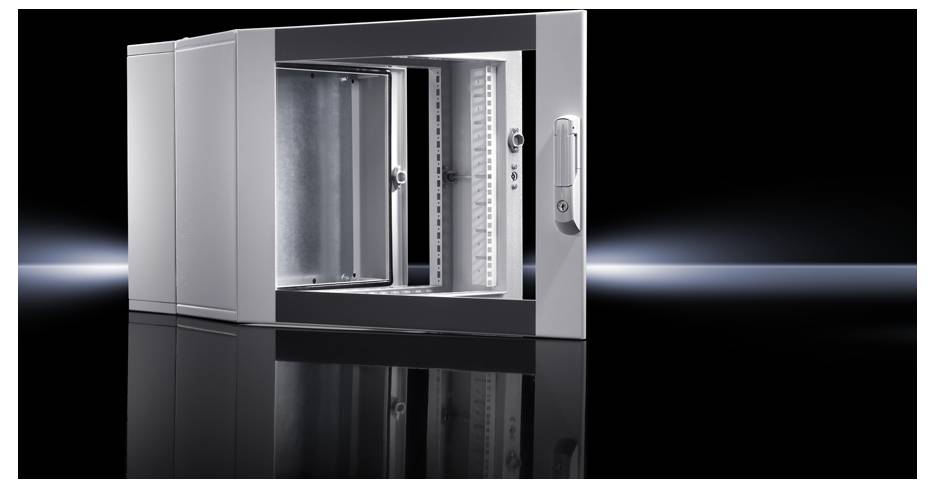

Wall casing with optimum accessibility through swivelling part.
This text is machine translated.
This text is machine translated.
Features
- Case: Steel sheet, 1.5 mm
- Swivel frame: steel sheet
- Front door: Einscheiben-Sicherheitsglas, 3 mm
- Housing and swivel frame: powder-coated
- Housing and swivel frame: RAL 7035
- Front door: silver
Scope of delivery
- Wall part
- Swivelling part with 25 mm hole grid in front and back frame
- Design view door
- Wall-mounted unit: Flange plate, closed at the top and bottom
- Wall-mounted unit: Mounting plate enclosed
- Swivel unit with 2 19'' profile rails
- Mini-comfort grip
- - 3524E safety lock
Hints
