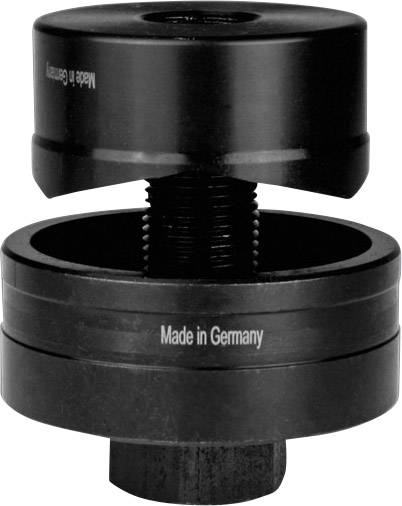

Rittal 4055581 Sheetmetal punch set
EAN:
Part number:
Item no:
Highlights & Details
Gap Sheetmetal punch set metric, for steel plate, 6-piece M 12/16/20/25/32/40
Technical specifications
- FOR THREAD: M12 / M16 / M20 / M25 / M32 / M40
- Ø holes: 12.5 mm / 16.2 mm / 20.4 mm / 25.4 mm / 32.5 mm / 40.5 mm
- Product type
Sheetmetal punch set
- Material suitability
Steel plate
Documents & Downloads
Security datasheet
Security datasheet 1588366 Rittal 4055581 Sheetmetal punch set
Signal word
Danger
GHS / H Statements
- H 318: Causes serious eye damage
- H 410: Highly toxic to aquatic life, with long-lasting effects
- H 411: Toxic to aquatic life, with long-lasting effects
GHS / P Statements
- P 102: Keep away from children
- P 273: Avoid release into the environment
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
- P 305+351+338: CONTACT WITH EYES: Rinse cautiously with water for several minutes. Remove contact lenses if applicable/possible. Continue rinsing
- P 310: Contact Poison Control Center or seek medical advice immediately
- P 391: Collect spillage
- P 501: Dispose of contents/container at …
Description
Gap Sheetmetal punch set metric, for steel plate, 6-piece M 12/16/20/25/32/40

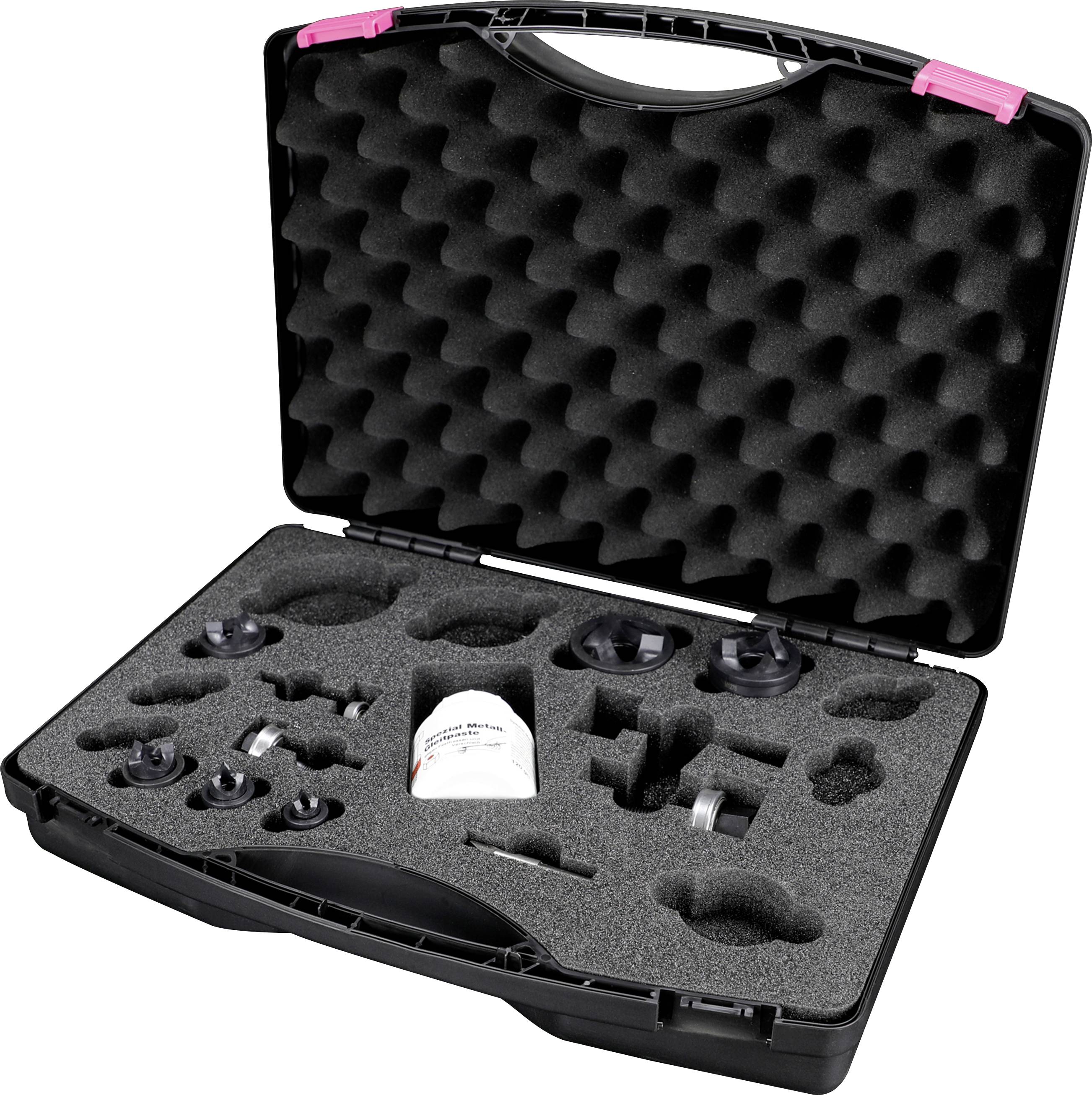

Scope of delivery
- 6 Matrices
- 6 stamps
- Traction screw with ball bearing Ø 6 x 40 mm
- Traction screw with ball bearing Ø 9.5 x 50 mm
- Traction screw with ball bearing Ø 19 x 55 mm
- HSS Predrill Ø 10 mm
- 1 can of grease paste
- Plastic case
Hints
This text is machine translated.
What kind of Punches are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
