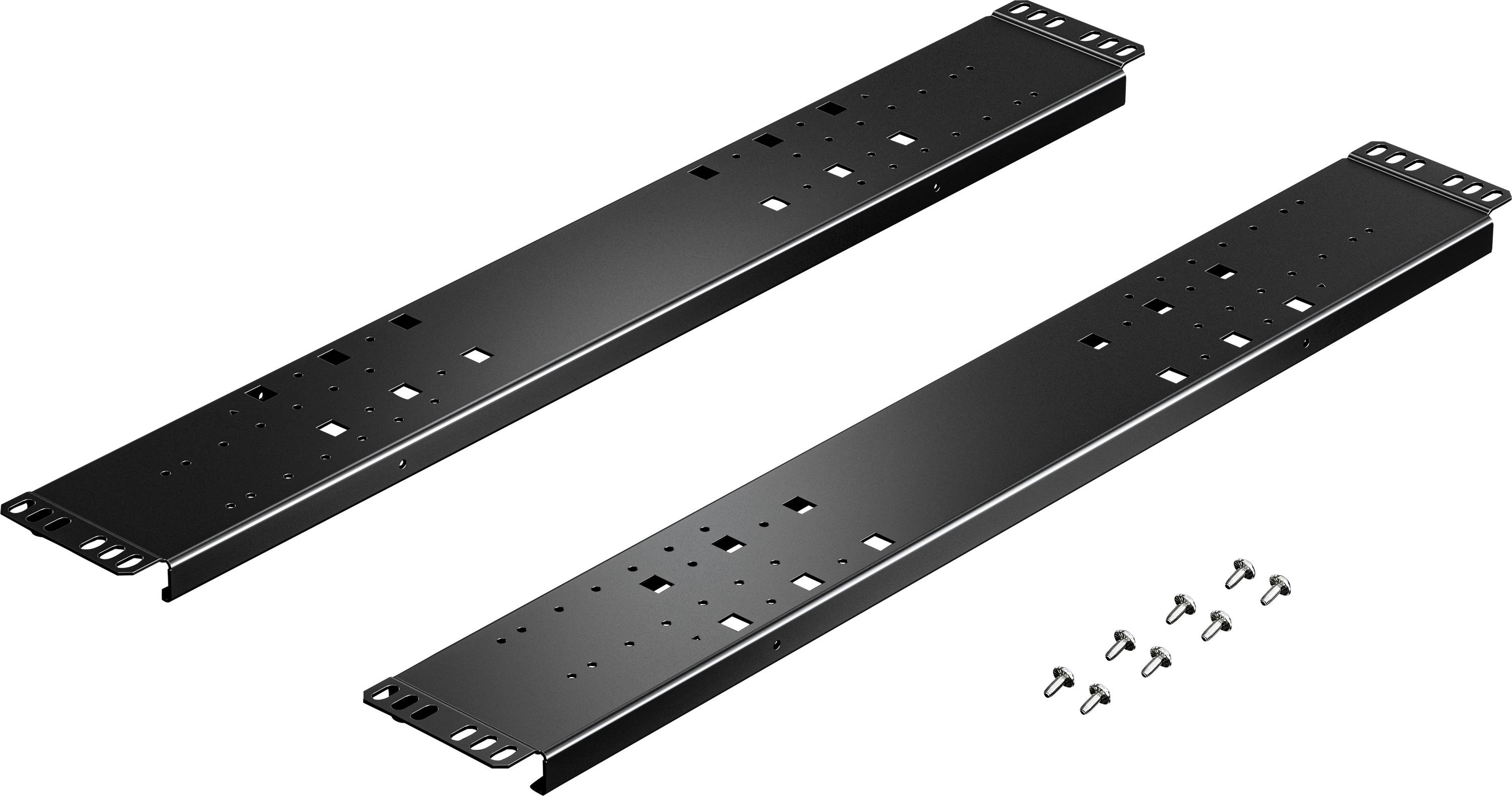

Rittal 5302168 19 inch Server rack cabinet rails Rail set Black (RAL 9005)
EAN:
Part number:
Item no:
Number (Package size 2 pc(s))
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Technical specifications
- Material: Steel plate
- Net weight: 6.1 kg
- Gross weight: 6.3 kg
- Surface: Painted
- Suitable for: Housing type VX IT
- Width = 800 mm
- Benefits: Symmetrical or asymmetric expansion possible
- More room for cable management or integration of a liquid cooling unit (LCU) with one-sided, asymmetric (laterally offset) installation
- Ideal for the integration of inch profile rails for the alternative expansion with 21"-, 23"-, or 24"-components
- In order to increase the energy efficiency of an integrated rack air conditioning system, the area around the inch mounting level can be dimmed by means of air deflectors, thus allowing the cooling air flow to be more targeted and reducing the air flow
- Colour RAL 9005
- Load capacity: The maximum load capacity of a mounting level on this cross traverse is 7,500 N per mounting level or 15,000 N per cabinet.
- Design: For VX IT 19"-profile rail dynamic
- Product type
Server rack cabinet rails
- Features
Rail set
- Suitable for server rack cabinet (inch)
19 inch
- Material
Steel plate
- Content
2 pc(s)
- Factory colour
Black (RAL 9005)
- Rack size
483 mm (19")
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386831 Rittal 5302168 19 inch Server rack cabinet rails Rail set Black (RAL 9005)
Description
VX IT cross traverse for 19" dynamic, for the deep and wide-variable mounting of the imperial profile rails, dynamic, below in 800 mm wide VX IT network / server cabinets.
For the depth and width variable mounting of the imperial profile rails, dynamic, below in 800 mm wide VX IT network/server cabinets.
This text is machine translated.
For the depth and width variable mounting of the imperial profile rails, dynamic, below in 800 mm wide VX IT network/server cabinets.
This text is machine translated.
