Rittal 7391.000 19" rack (W x H x D) 550 x 1499.5 x 750 mm 31 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Rittal distribution frame data rack 31 HE 7391.000
Technical specifications
- Product type
19" rack
- Rack unit
31 U
- Width
550 mm
- Height
1499.5 mm
- Depth
750 mm
- Material
Steel
- Dim
(W x H x D) 550 x 1499.5 x 750 mm
- Factory colour
Grey-white (RAL 7035)
- Rack size
483 mm (19")
- Product type description
Rack
Grey
550
14995 mm
750 mm
7035
150 t
Steel
Powder coating
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 629106 Rittal 7391.000 19" rack (W x H x D) 550 x 1499.5 x 750 mm 31 U Grey-white (RAL 7035)
Description

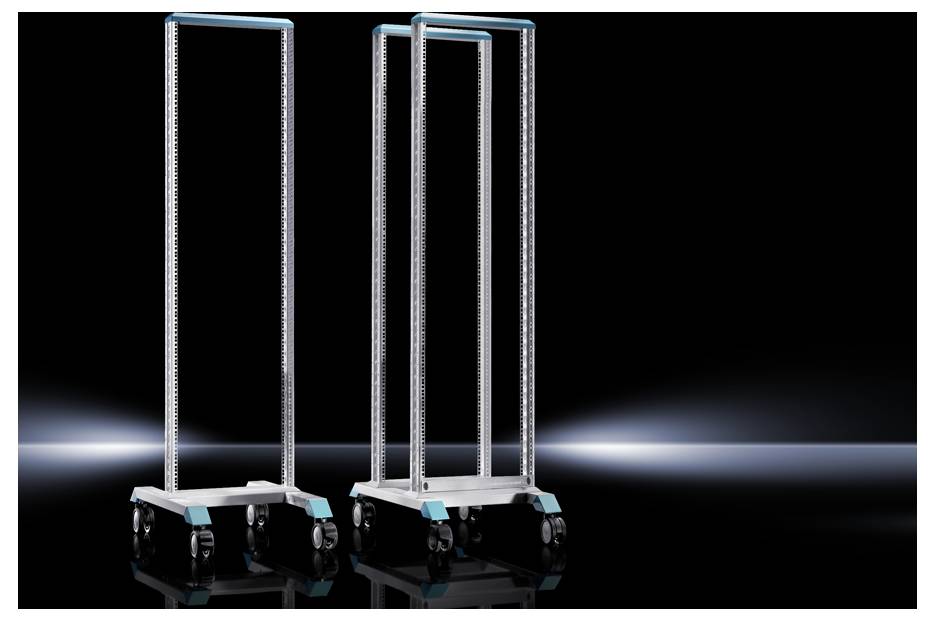

Warp-profile frame, welded, of 2 mm steel sheet, with integrated 482.6 mm (19")-punching as well as round and square holes in the 44.45 mm (HE-grid) for recording of cabling systems and 482.6 mm (19") components. The frame is on a gekantetem sheet steel base with die-cast zinc feet in the grid of 50 mm depth-adjustable. The base provides the recording option a second 482.6 mm (19")- mounting level, an opportunity for floor anchoring and fixing possibilities for levelling feet and wheels. Unlimited can be connected in series.
This text is machine translated.
This text is machine translated.
Features
- Case:
- -Profile Frame, Base: steel sheet
- Base: die-cast zinc
- Color:
- -Profile Frame, Base: RAL 7035
- Aperture, Feet: RAL 5018
Scope of delivery
- Warp-profile frame with 482.6 mm (19 '') - perforation
- Sturdy base with integrated feet with the possibility of floor anchoring
- Incl. mounting accessories
Hints
Please provide a phone number when placing your order, to allow us to arrange for a delivery date.
