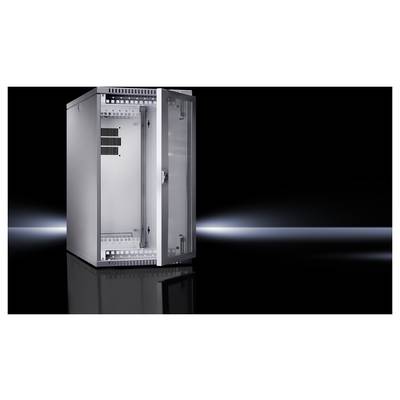

Rittal 7501.000 19" server rack cabinet (W x H x D) 300 x 550 x 600 mm 5 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 234.45 / piece)
€ 234.45
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Rittal 48.3 cm (19 ") vertical box 5 HE 300 x 550 x 600 mm
- Steel plate
- Window ESG 3 mm
Technical specifications
- Product type
19" server rack cabinet
- Rack unit
5 U
- Width
300 mm
- Height
550 mm
- Depth
600 mm
- Material
Safety glass
Steel
- Dim
(W x H x D) 300 x 550 x 600 mm
- Weight
16.8 kg
- Factory colour
Grey-white (RAL 7035)
- Rack size
483 mm (19")
- Cable length
0 cm
- Wireless charging
No
- Height
5 U
Grey
300
Other
540 mm
600 mm
7035
1
45 t
Steel
IP20
Powder coating
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 993531 Rittal 7501.000 19" server rack cabinet (W x H x D) 300 x 550 x 600 mm 5 U Grey-white (RAL 7035)
User & Safety Instructions
User & Safety Instructions 993531 Rittal 7501.000 19" server rack cabinet (W x H x D) 300 x 550 x 600 mm 5 U Grey-white (RAL 7035)
Description
Compact 482.6 mm (19 ") enclosure for small networks as a universal wall-, under-counter or desktop use case.
Features
- Volume: 121.28 dm³
- 482.6 mm (19 " ) -housing, each with a front and rear mounting level.
- Glazed front door, a fix side panel, one plugged, removable, back panel plugged, removable, with opening for cable entry, prepared for accepting a fan unit.
- Glazed door, side and rear wall with safety locking 12321
- Roof and floor with ventilation slots and cut-out-embossing for cable entry. 4 plastic bases, self-adhesive attached.
Scope of delivery
- Network cabinets with a mounting level each
- Glazed front
- Standing side panel
- Inserted side panel
- Inserted rear wall.
Hints
Please provide a phone number when placing your order, to allow us to arrange for a delivery date.
