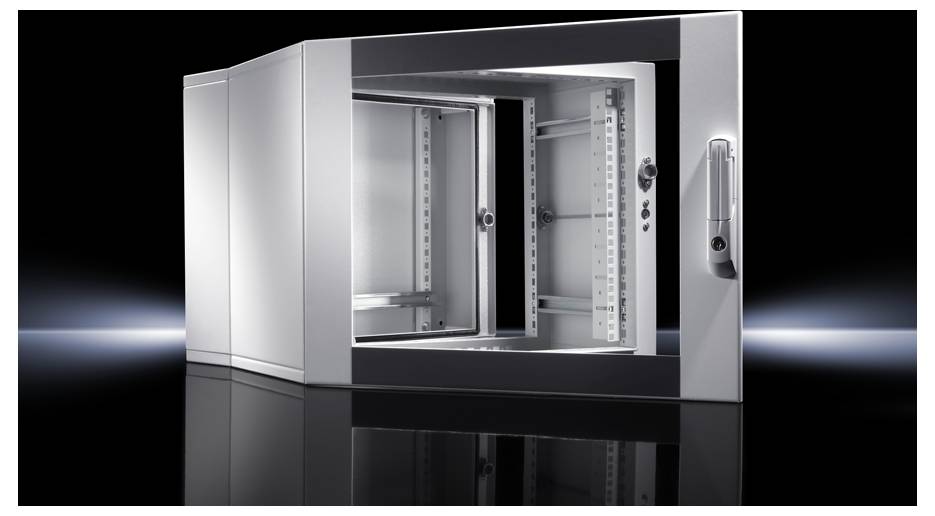

Rittal 7706.135 19" server rack cabinet (W x H x D) 600 x 345 x 473 mm 6 U Grey-white (RAL 7035)
EAN:
Part number:
Item no:
Total (€ 516.81 / piece)
€ 516.81
plus VAT.
14-day return policy included
Technical specifications
- Product type
19" server rack cabinet
- Rack unit
6 U
- Width
600 mm
- Height
345 mm
- Depth
473 mm
- Material
Safety glass
Steel
- Dim
(W x H x D) 600 x 345 x 473 mm
- Weight
26.400
- Factory colour
Grey-white (RAL 7035)
- Rack size
483 mm (19")
Grey
600
Other
345 mm
473 mm
7035
1
30 t
Steel
IP55
Powder coating
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 629225 Rittal 7706.135 19" server rack cabinet (W x H x D) 600 x 345 x 473 mm 6 U Grey-white (RAL 7035)
Description
Wall casing with optimum accessibility through swivelling part.
This text is machine translated.
This text is machine translated.
Features
- Case:
- Wall and swivel part: steel sheet, 1.5 mm
- The point of view of the disc: Einscheiben-Sicherheitsglas, 3 mm
- - Powder-coated
- Color:
- Wall and swivel part: RAL 7035
- - View door: RAL 7035/7015 (slate gray)
Scope of delivery
- Wall part
- Swivelling part with 25 mm hole grid in front and back frame
- Design view door
- Wall-mounted unit: Flange plate, closed at the top and bottom
- Wall-mounted unit: 2 vertical mounting rails
- Wall-mounted unit: C-section profile rail is horizontal, for interception
- Swivel unit with 2 19'' profile rails, infinitely adjustable depth
- - 4 10 mm wall attachment holder 10mm
- Mini-comfort grip
- - 3524E safety lock
Hints
Please provide a phone number when placing your order, to allow us to arrange for a delivery date.
