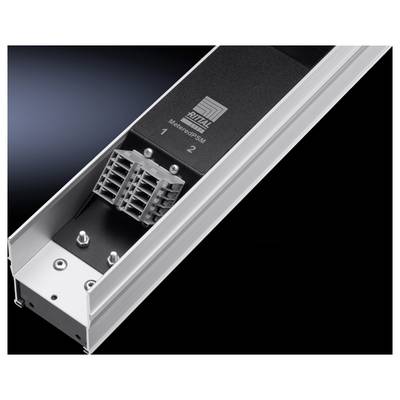

Rittal 7856.010 19 inch PG socket Surge protection Aluminium
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Technical specifications
- Product type
Server rack cabinet busbar
- Features
Surge protection
- Suitable for server rack cabinet (inch)
19 inch
- Socket type
PG socket
- Amperage
16 A
- Cable length
3 m
- Material
Metal
- Content
1 pc(s)
- Factory colour
Aluminium
- Height
1895 mm
- Rack size
483 mm (19")
- Type
For 1200 mm Cabinet Height
- Weight
0.000
16 A
Aluminium
FALSE
Anodised
FALSE
Other
FALSE
FALSE
Metal
IP20
FALSE
Matt
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 971983 Rittal 7856.010 19 inch PG socket Surge protection Aluminium
Description
The rapidly increasing power demand of modern IT structures requires sophisticated solutions for power distribution in the racks. The resulting additional consumption of outlet locations will be provided. The wiring and installation costs are greatly reduced by the new "Intelligent power distribution system from Rittal. The modular system allows a basic configuration of the racks by a vertical carrier rail with 3-phase supply. In the carrier rail, the various plug-in modules can be engaged for the supply of the active components. And this during operation, since the carrier profile is developed contact protected. The different modules,Schuko, IEC320 etc
can be mixed into the carrier rail. That can also easily realized from non-electrician by a contact-protected Plug & Play system.
can be mixed into the carrier rail. That can also easily realized from non-electrician by a contact-protected Plug & Play system.
Features
- 3-phase structure with a max. Current of 3 x 16 A
- In addition, may be a redundant power supply 3-phase with 3 x 16 A follows.
- The redundant circuit is completely separated from the 3 phases of the carrier rail
- Each plug-in module accesses to the carrier rail from a phase, depending on the insertion direction of feed A or a redundant supply B
- Modules can be upgraded during operation.
- Plug-in modules can be fitted with a built-in overcurrent protection, this with high current only the module concerned is switched off. The other modules remain in operation
- Overvoltage protection is integrated into the inlet
- Carrier rail can be integrated in the vertical frame profile of the flexRack (i) without addition.
Scope of delivery
- Power rails with connection socket
- Mounting materials
- Operating instructions.
Hints
Please order the necessary supply cables specially. It can connect up to 2 cables for power supply.
