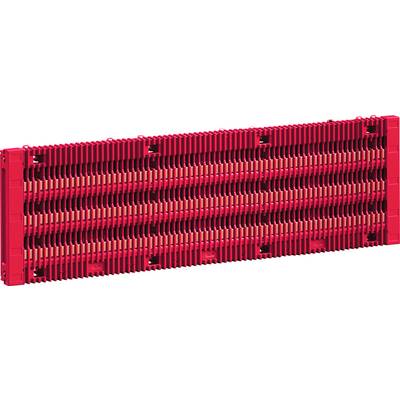

Rittal 9360088 RiLineX board 550 A, 3-pin, 60 mm, incl. busbars 30x5 mm, B: 705 mm Busbar module Copper 1 pc(s)

RiLineX complete board 800 A incl. busbars 30 x 10 mm. Length 705 mm for 800 mm wide cabinets. Quick and easy arrangement of several boards via RiLineX connector without that the short-circuit resistance is reduced. A cable routing (e.g. from control lines) can also take place in the rear area of the board, WAS enables additional flexibility with the system design. Completely digital product data leads to significant time savings in planning and documentation. The board is approved for IEC 61439 and UL 508 and can be mounted horizontally, vertically or above the top. The system can also be easily expanded. It is suitable for applications with alternating current up to 1000 V AC as well as direct current up to 1500 V DC and thus offers a versatile solution for different applications. The delivery package includes a pre-assembled board including busbars

This text is machine translated.
