Buy Rittal AX 1304.000 Switchboard cabinet 600 x 600 x 210 Stainless steel Stainless steel 1 pc(s) Piece

Silver metal filing cabinet with two round locks in the top left corner. Simple, industrial design.

A silver locking system with a round, pink-rimmed lock on a metallic background. 'RITTAL' is written at the top.

Interior view of a metal cabinet with angle brackets and screw connections, demonstrating the robust construction and mounting capability.

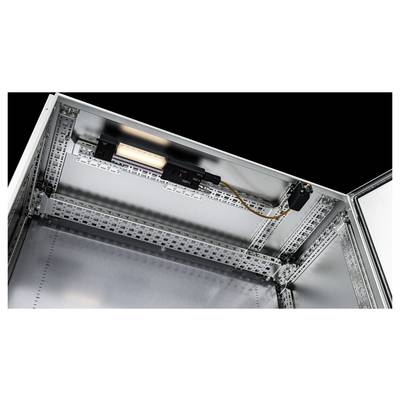

An open electrical cabinet shows installed lighting at the top, surrounded by metal structures and wiring.

Abstract image with geometric shapes in silver and black. Rectangles and a curved surface create a modern, minimalist look.

A metal container with an open top reveals an assembly kit inside. Focus is on robust, high-gloss polished craftsmanship.

Rittal AX 1304.000 Switchboard cabinet 600 x 600 x 210 Stainless steel Stainless steel 1 pc(s) Piece-6

A metal enclosure with a scale on the inner side, a screw, and an earthing symbol indicating electrical safety.

An open electrical cabinet with a green and yellow earthing cable attached to a metal plate reveals the internal wiring.

Close-up of a metallic surface with a bevelled edge and a rectangular cut-out displaying a gleaming lustre.

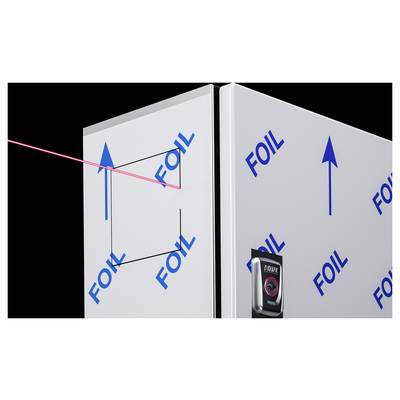

'A laser cuts a square opening into a metallic plate with a foil inscription. An electrical component is visible.'

Metal casing with a gleaming surface, mounted on a vertical pole with brackets. Focus on industrial aesthetics.

A tablet displays a file management app. An open server rack stands in the background. A QR code is visible.

1/13

Packaging type

Piece

Product type

Switchboard cabinet

Material

Stainless steel

Width

600 mm

Height

600 mm

Datasheet (PDF)

Fast track dispatch on Wed, 7 Oct

202 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 827.73 / piece)

€ 827.73

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Door: Stainless steel, foamed-in PU seal all around
Mounting plate: Steel sheet
Closure: Zinc die-cast nickel-plated, double bit stainless steel insert

Packaging type: Piece

Product type: Switchboard cabinet

Features: wallmount option

Material: Stainless steel

: IP66

Factory colour: Stainless steel

Type: 1-door

Width: 600 mm

Height: 600 mm

Dimensions: 600 x 600 x 210 mm

Weight: 23.5 kg

Content: 1 pc(s)

Type: AX 1304.000

Dim: (W x H x D) 600 x 600 x 210 mm

Manufacturer part #: 1304000

Depth: 210 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2250986 Rittal AX 1304.000 Switchboard cabinet 600 x 600 x 210 Stainless steel Stainless steel 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2250986 Rittal AX 1304.000 Switchboard cabinet 600 x 600 x 210 Stainless steel Stainless steel 1 pc(s) Piece

Description

Perfection with system. The new AX, stainless steel compact control cabinet offers maximum data quality and uniformity in engineering as well as flexibility and safety in assembly and interior design.

This text is machine translated.

Scope of delivery

Housing with door(s), opening angle 130°
Mounting plate
3 mm double bit lock
This text is machine translated.
