Rittal AX 6315.450 Fitting bracket 130 x 210 x 500 x 500 x 500 Steel plate, Aluminium, Plastic Light grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fitting bracket
Material
Steel plate
Aluminium
Plastic
IP rating
IP55
Width
500 mm
Datasheet (PDF)
Number
Total (€ 402.52 / piece)
€ 402.52
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Material:
- Housing: Steel sheet
- Door: Steel sheet, foamed-in PU seal all around
- Aluminium front plate
- Cover caps: Plastic
- Packaging type
Piece
- Product type
Fitting bracket
- Features
with handle bar
- Material
Steel plate
Aluminium
Plastic
IP55
- Factory colour
Light grey
- Length
210 mm
- Width
500 mm
- Height
500 mm
- (Ø)
130 mm
- Dimensions
210 x 500 x 500 mm
- Weight
16.8 kg
- Content
1 pc(s)
- Type
AX 6315.450
- Dim
(Ø x H) 130 mm x 500 mm
- Manufacturer part #
6315450
- Depth
500 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2251093 Rittal AX 6315.450 Fitting bracket 130 x 210 x 500 x 500 x 500 Steel plate, Aluminium, Plastic Light grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2251093 Rittal AX 6315.450 Fitting bracket 130 x 210 x 500 x 500 x 500 Steel plate, Aluminium, Plastic Light grey 1 pc(s) Piece
Description

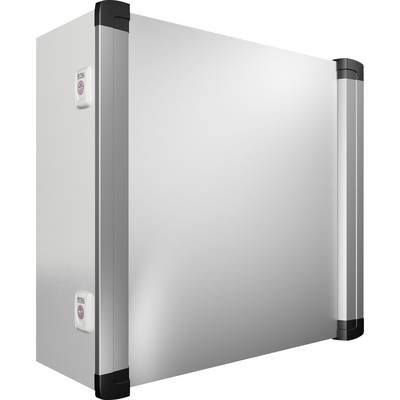

The operating housing with grip strips based on AX, steel plate, with support arm cut-out Ø 130 mm suitable for the support arm system CP 60/120/180, service access optionally from the front or rear, aluminum front plate for processing easily dismantled.
Note:
It is possible to change the support arm connection and door stop by turning the housing
Optional: Support arm connection Ø 130 mm, pre-formed off-center in the reinforcement plate, can be drilled easily
Locking systems for service access from the rear: Locking insert, interchangeable with mini comfort handle AX, locking inserts 27 mm, version A.
Locking systems for service access from the front: Locking insert, can be replaced by sealing inserts 27 mm, version A.
This text is machine translated.
Note:
It is possible to change the support arm connection and door stop by turning the housing
Optional: Support arm connection Ø 130 mm, pre-formed off-center in the reinforcement plate, can be drilled easily
Locking systems for service access from the rear: Locking insert, interchangeable with mini comfort handle AX, locking inserts 27 mm, version A.
Locking systems for service access from the front: Locking insert, can be replaced by sealing inserts 27 mm, version A.
This text is machine translated.
Scope of delivery
- Housing with break-out and reinforcement for support arm connection Ø 130 mm
- Front with max. outbreak, covered by easy to process 3 mm aluminum front plate
- Side handles with end caps
- Molded internal extension bracket with system holes
- Sash lock with 3 mm double bit insert
