Rittal AX 6320.150 Fitting bracket 650 x 450 x 155 Steel plate, Aluminium, Plastic Grey (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fitting bracket
Material
Steel plate
Aluminium
Plastic
Width
650 mm
Height
450 mm
Content
1 pc(s)
Number
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
Technical specifications
- Material: Housing: Steel sheet
- Door: Steel sheet, circulating foamed PU-sealing
- Aluminium front plate
- Cover caps: Plastic
- Net weight: 13.25 kg
- Gross weight: 13.7 kg
- Surface: Housing and door: Dip-primed, externally powder coated, textured finish
- Gripper strip: Natural anodized
- Front panel: Natural anodized
- Dimensions: Width 650 mm
- Height: 450 mm
- Depth: 155 mm
- Colour: Housing and door: RAL 7035
- Gripper strip: Natural anodized
- Front panel: Natural anodized
- Cover caps: Similar to RAL 7024
- IK code: IK08
- Base material: Steel sheet
- Base color RAL 7035
- Design: Service access from behind
- NEMA 1 protection
- NEMA 12
- Product type
Fitting bracket
- Material
Steel plate
Aluminium
Plastic
- Factory colour
Grey (RAL 7035)
- Type
Service access from behind
- Width
650 mm
- Height
450 mm
- Weight
13.25 kg
- Content
1 pc(s)
- Type
AX 6320.150
- Dim
(W x H x D) 650 x 450 x 155 mm
- Manufacturer part #
6320150
- Depth
155 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386657 Rittal AX 6320.150 Fitting bracket 650 x 450 x 155 Steel plate, Aluminium, Plastic Grey (RAL 7035) 1 pc(s)
Description

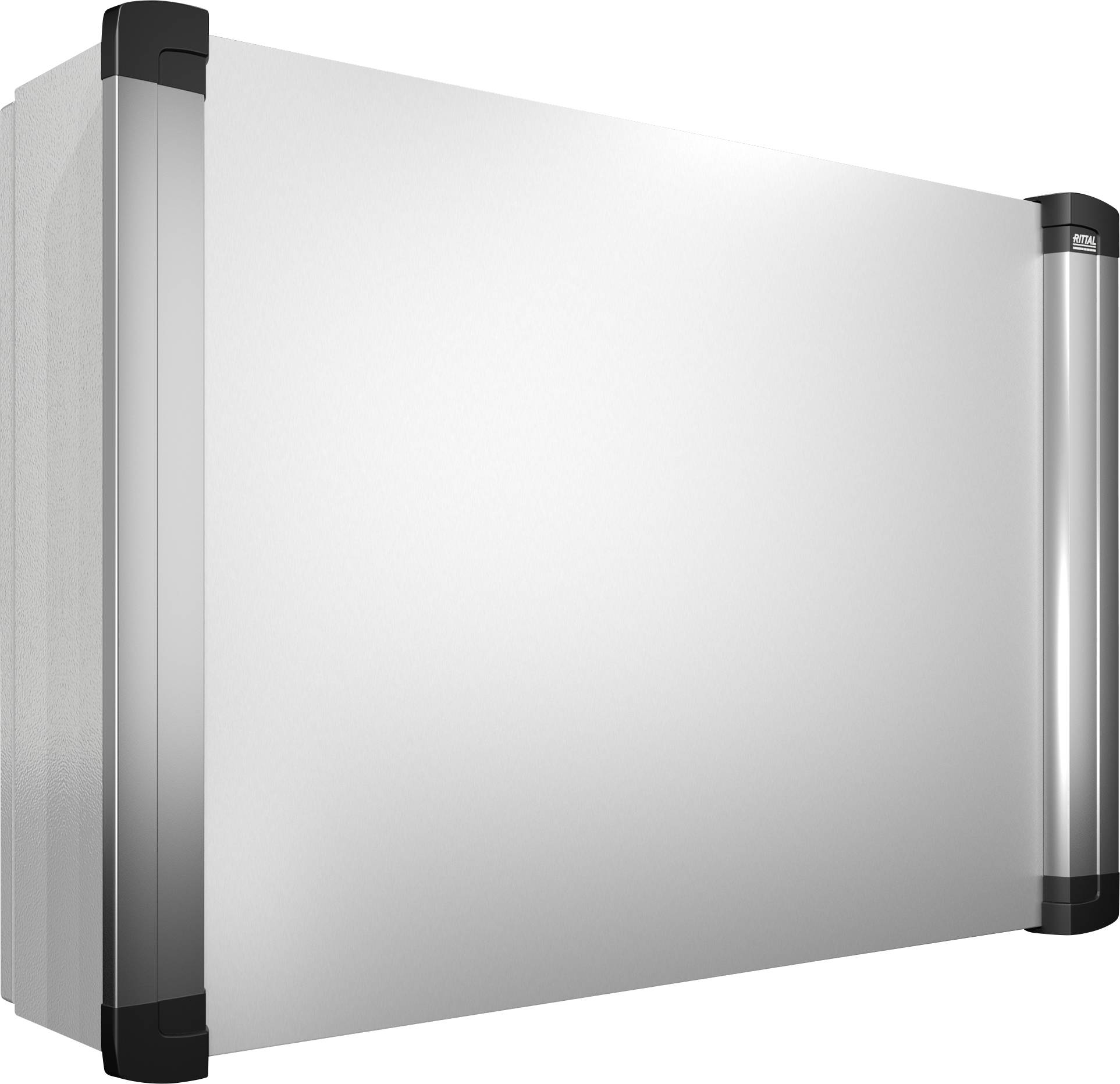

AX operating housing with handle bars, BHT: 650x450x155mm, steel sheet, aluminum handle bars, service access from behind
The operating case with handle bars based on AX, steel plate, with support arm cut-out Ø 130 mm matching the support arm system CP 60/120/180, service access from behind, aluminum front plate for machining easily removable, protection class IP55.
This text is machine translated.
The operating case with handle bars based on AX, steel plate, with support arm cut-out Ø 130 mm matching the support arm system CP 60/120/180, service access from behind, aluminum front plate for machining easily removable, protection class IP55.
