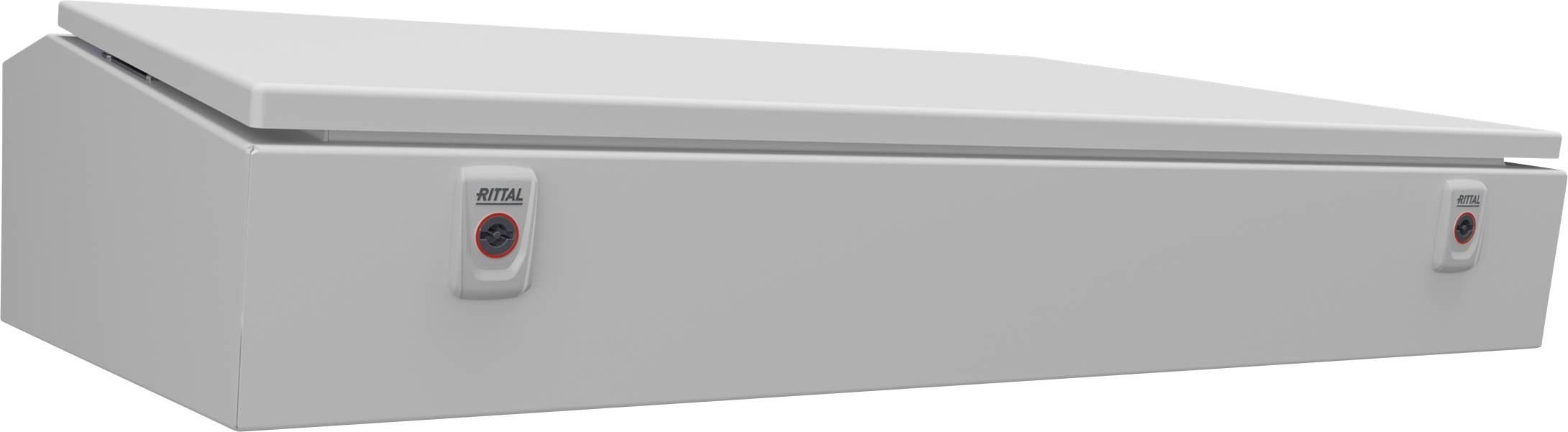

Rittal CX 6711.000 Desk casing (body) (W x H) 800 mm x 200 mm Steel plate Grey (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Material
Steel plate
IP rating
IP55
Width
800 mm
Height
200 mm
Content
1 pc(s)
Number
Total (€ 449.58 / piece)
€ 449.58
plus VAT.
Technical specifications
- Material: Housing: Steel sheet 1.5 mm
- Desk lid: Sheet steel 2.0 mm,circulating foamed PU-sealing
- Net weight: 25 kg
- Gross weight: 27 kg
- Surface: Housing and cover: Dip-primed, externally powder coated, textured finish
- Dimensions: Width 800 mm
- Colour RAL 7035
- IK code: IK10
- Base material: Steel sheet
- Design: Middle part
- Seal: Design lock: Pre-driver
- Number of closures: 2
- Locking insert: 3 mm double bit
- Number of closures: 2
- Design closure: Preliminary driver
- Locking insert: 3 mm double bit
- Height front 130 mm
- Height at rear 200 mm
- Protection class IP according to IEC 60 529:IP 55
- Features
Double sided ward
- Material
Steel plate
IP55
- Factory colour
Grey (RAL 7035)
- Width
800 mm
- Height
200 mm
- Height (min.)
130 mm
- Content
1 pc(s)
- Dim
(W x H) 800 mm x 200 mm
- Type
CX 6711.000
- Weight
25 kg
Grey
800 mm
200 mm
745 mm
7035
1
Steel
IP55
Powder coating
Middle part
12
- UKCA
yes
- Product type
Desk casing (body)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386747 Rittal CX 6711.000 Desk casing (body) (W x H) 800 mm x 200 mm Steel plate Grey (RAL 7035) 1 pc(s)
Description
CX desk system, console part, B: 800 mm
Four widths form the bridge for a two- or three-part setup of the CX desk system.
This text is machine translated.
Four widths form the bridge for a two- or three-part setup of the CX desk system.
This text is machine translated.
