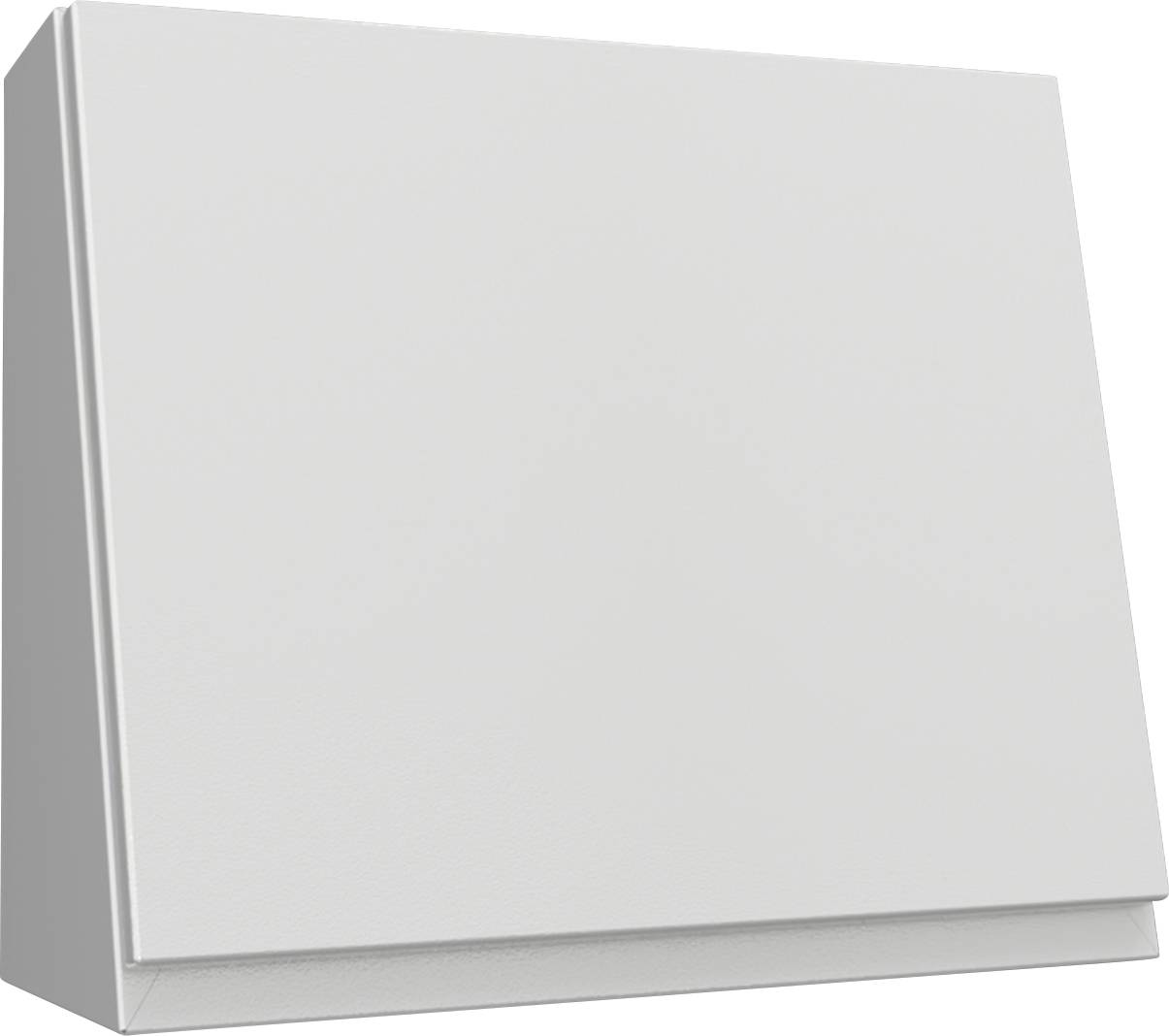

Rittal CX 6720.000 Desk casing (top) (W x H) 600 mm x 515 mm Steel plate Grey (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Desk casing (top)
Material
Steel plate
IP rating
IP55
Width
600 mm
Height
515 mm
Number
Total (€ 402.52 / piece)
€ 402.52
plus VAT.
14-day return policy included
Technical specifications
- Material: Housing: Steel sheet 1.5 mm
- Door: Steel sheet, 2.0 mm, circulating foamed PU-sealing
- Net weight: 15 kg
- Gross weight: 16.8 kg
- Surface: Housing and door: Dip-primed, externally powder coated, textured finish
- Dimensions: Width 600 mm
- Height: 515 mm
- Top depth 125 mm
- Depth down: 245 mm
- Colour RAL 7035
- IK code: IK10
- Base material: Steel sheet
- Design: Upper part
- Seal: Design lock: Pre-driver
- Number of closures: 2
- Locking insert: 3 mm double bit
- Top depth 125 mm
- Depth down: 245 mm
- Number of closures: 2
- Design closure: Preliminary driver
- Locking insert: 3 mm double bit
- Protection class IP according to IEC 60 529:IP 55
- Product type
Desk casing (top)
- Features
Double sided ward
- Material
Steel plate
IP55
- Factory colour
Grey (RAL 7035)
- Width
600 mm
- Height
515 mm
- Dimensions
Tiefe unten: 245 mm; Tiefe oben: 125 mm
- Content
1 pc(s)
- Dim
(W x H) 600 mm x 515 mm
- Weight
15 kg
- Type
CX 6720.000
Grey
600 mm
515 mm
245 mm
7035
1
Steel
IP55
Powder coating
Cover
12
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386750 Rittal CX 6720.000 Desk casing (top) (W x H) 600 mm x 515 mm Steel plate Grey (RAL 7035) 1 pc(s)
Description
CX desk system, console top for 3-piece structure, B: 600 mm, steel plate
Four widths offer the best conditions for individual monitoring and a three-part setup of the CX desk system.
This text is machine translated.
Four widths offer the best conditions for individual monitoring and a three-part setup of the CX desk system.
This text is machine translated.
