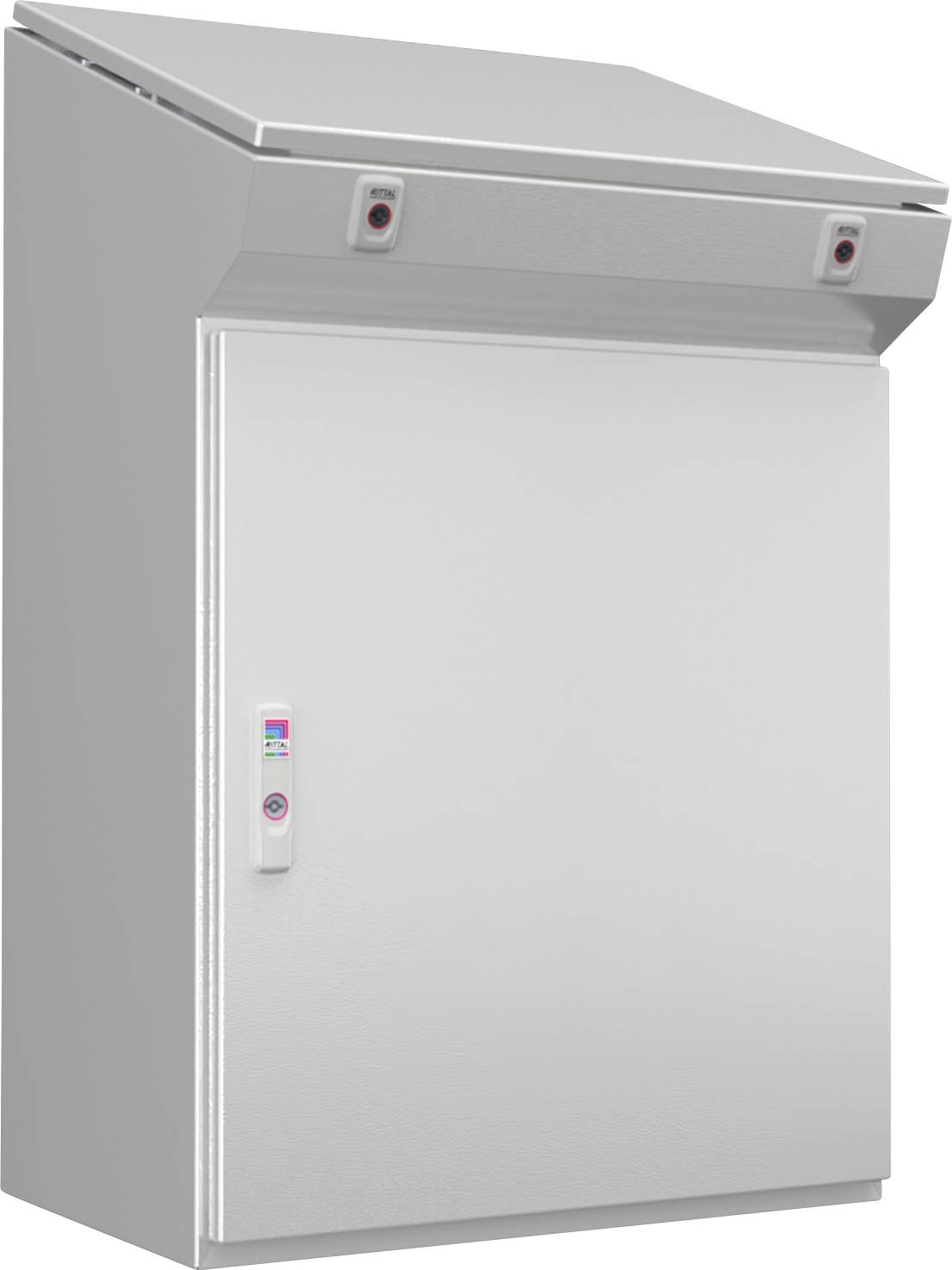

Rittal CX 6746.000 Free-standing desk (W x H) 600 mm x 970 mm Steel plate Grey (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Free-standing desk
Material
Steel plate
IP rating
IP55
Width
600 mm
Height
970 mm
Number
Total (€ 600.84 / piece)
€ 600.84
plus VAT.
14-day return policy included
Technical specifications
- Material: Housing: Steel sheet 1.5 mm
- Door and panel lid: Steel sheet 2.0 mm,circulating foamed PU-sealing
- Mounting plate: Steel sheet, 2.5 mm
- Net weight: 45 kg
- Gross weight: 48.875 kg
- Surface: Housing, cover and door: Dip-primed, externally powder coated, textured paint
- Galvanised mounting plate
- Dimensions: Width 600 mm
- Height: 970 mm
- Top depth 495 mm
- Depth down: 400 mm
- Colour RAL 7035
- Mounting plate dimensions (W x H) 520 x 900 mm
- IK code: IK10
- Number of doors: 1
- Base material: Steel sheet
- Design: Standing desk
- Top depth 495 mm
- Depth down: 400 mm
- Protection class IP according to IEC 60 529:IP 55
- Product type
Free-standing desk
- Material
Steel plate
IP55
- Factory colour
Grey (RAL 7035)
- Type
1 door
- Front panel size
(W x H) 520 mm x 900 mm
- Width
600 mm
- Height
970 mm
- Dimensions
Tiefe unten: 400 mm; Tiefe oben: 495 mm
- Content
1 pc(s)
- Dim
(W x H) 600 mm x 970 mm
- Weight
45 kg
- Type
CX 6746.000
Grey
600 mm
970 mm
400 mm
7035
1
Steel
IP55
Powder coating
Desk console
12
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386756 Rittal CX 6746.000 Free-standing desk (W x H) 600 mm x 970 mm Steel plate Grey (RAL 7035) 1 pc(s)
Description
CX Stand, BHT:600x970x400 mm, sheet steel
One-piece stand console for control and monitoring, with large mounting plate and high protection class IP 55 in four different widths.
This text is machine translated.
One-piece stand console for control and monitoring, with large mounting plate and high protection class IP 55 in four different widths.
This text is machine translated.
