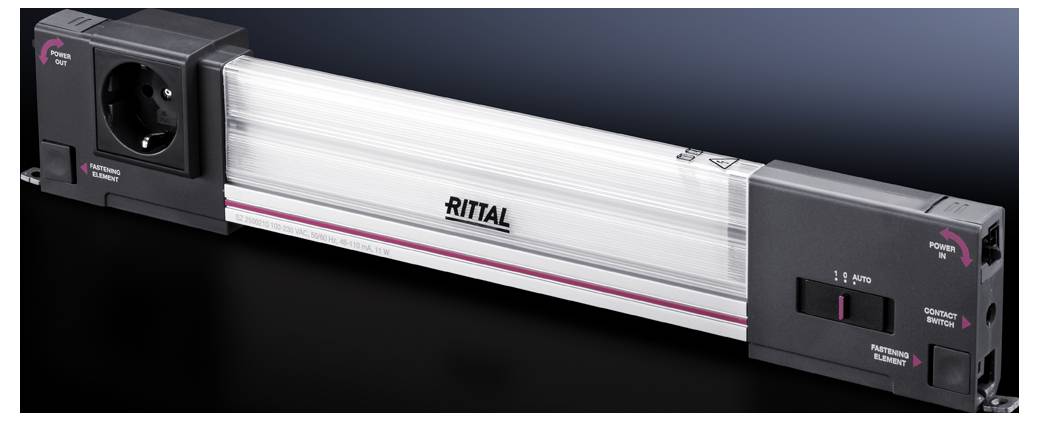

Rittal Industrial LED indicator light 2500.210 EEC: F (A - G) Neutral white 11 W 900 lm 240 V AC (L x W x H) 437 x 80 x
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Operating voltage
240 V AC
Power
11 W
Colour temperature type
4000 K
Luminous flux (Φ)
900 lm
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
Only 4 Piece(s) available
LED system light
Highlights & Details
- Optimum illumination in the entire control cabinet
- Optional mounting with clip or screw attachment
Technical specifications
- Product type
Industrial LED indicator light
- Type
2500.210
- Features
incl. switch (ON/OFF/AUTO)
incl. PG socket
90-degree swivel jack
Light diffusion adjustment
- Operating voltage
240 V AC
- Min. operating voltage
100 V AC
- Max. operating voltage
240 V AC
- Operating voltage
100 - 240 V AC
11 W
- Factory colour
Neutral white
- Colour temperature type
4000 K
- Luminous flux (Φ)
900 lm
- Connection
Jack connector
- Material
Plastic
Aluminium
IP20
- Protection class
IP20
II
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Length
437 mm
- Width
80 mm
- Height
44 mm
- Dim
(L x W x H) 437 x 80 x 44 mm
- RoHS-compliant
Yes
F (A - G)
- Weight
0.621
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1577718 Rittal Industrial LED indicator light 2500.210 EEC: F (A - G) Neutral white 11 W 900 lm 240 V AC (L x W x H) 437 x 80 x
Information
Information 1577718 Rittal Industrial LED indicator light 2500.210 EEC: F (A - G) Neutral white 11 W 900 lm 240 V AC (L x W x H) 437 x 80 x
Description
Intelligent lighting, tuned to the geometry of the control cabinet through special optical cover
With Fresnel structure. Can be mounted horizontally and vertically in the cabinet without loss of space, existing rails or chassis can be easily overbuilt. Tool-free quick assembly by latching hook system in 25 mm hole pattern, simply snap in and secure. Simple through-wiring via Plug & Play.
This text is machine translated.
With Fresnel structure. Can be mounted horizontally and vertically in the cabinet without loss of space, existing rails or chassis can be easily overbuilt. Tool-free quick assembly by latching hook system in 25 mm hole pattern, simply snap in and secure. Simple through-wiring via Plug & Play.
This text is machine translated.
Scope of delivery
- Incl. Mounting screws
