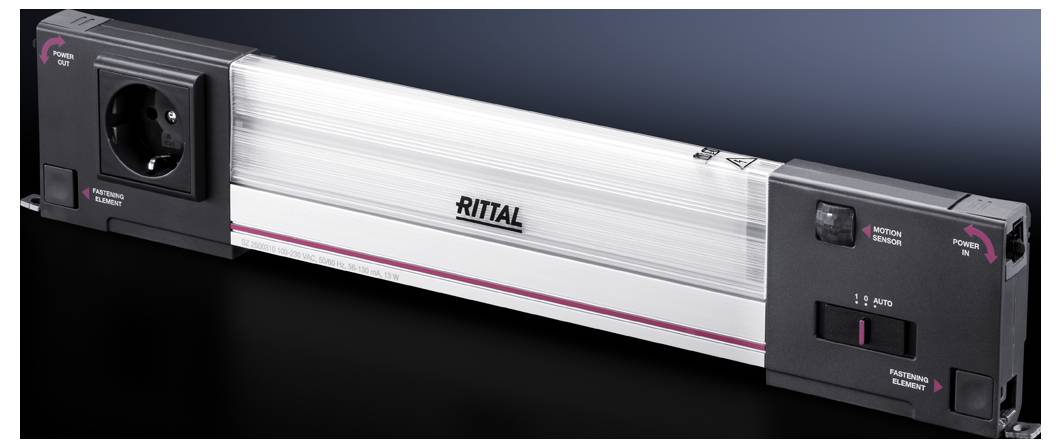

Rittal Industrial LED indicator light 2500.310 EEC: E (A - G) Neutral white 13 W 1200 lm 240 V AC (L x W x H) 437 x 85 x
EAN:
Part number:
Item no:
Product type
Industrial LED indicator light
Operating voltage
240 V AC
Power
13 W
Colour temperature type
4000 K
Luminous flux (Φ)
1200 lm
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
14-day return policy included
LED system light
Highlights & Details
- Optimum illumination in the entire control cabinet
- Optional mounting with clip or screw attachment
Technical specifications
- Product type
Industrial LED indicator light
- Type
2500.310
- Features
incl. switch (ON/OFF/AUTO)
incl. PG socket
incl. motion detector
90-degree swivel jack
Light diffusion adjustment
Light direction adjustment
- Operating voltage
240 V AC
- Min. operating voltage
100 V AC
- Max. operating voltage
240 V AC
- Operating voltage
100 - 240 V AC
13 W
- Factory colour
Neutral white
- Colour temperature type
4000 K
- Luminous flux (Φ)
1200 lm
- Connection
Jack connector
- Material
Plastic
Aluminium
IP20
- Protection class
IP20
II
- Min. temperature
-20 °C
- Max. temperature
+55 °C
- Length
437 mm
- Width
85 mm
- Height
37 mm
- Dim
(L x W x H) 437 x 85 x 37 mm
- RoHS-compliant
Yes
E (A - G)
- Weight
0.695
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1577719 Rittal Industrial LED indicator light 2500.310 EEC: E (A - G) Neutral white 13 W 1200 lm 240 V AC (L x W x H) 437 x 85 x
Information
Information 1577719 Rittal Industrial LED indicator light 2500.310 EEC: E (A - G) Neutral white 13 W 1200 lm 240 V AC (L x W x H) 437 x 85 x
Description
Intelligent lighting, tuned to the geometry of the control cabinet through special optical cover
With Fresnel structure. Can be mounted horizontally and vertically in the cabinet without loss of space, existing rails or chassis can be easily overbuilt. Tool-free quick assembly by latching hook system in 25 mm hole pattern, simply snap in and secure. Simple through-wiring via Plug & Play.
This text is machine translated.
With Fresnel structure. Can be mounted horizontally and vertically in the cabinet without loss of space, existing rails or chassis can be easily overbuilt. Tool-free quick assembly by latching hook system in 25 mm hole pattern, simply snap in and secure. Simple through-wiring via Plug & Play.
This text is machine translated.
Scope of delivery
- Incl. Mounting screws
