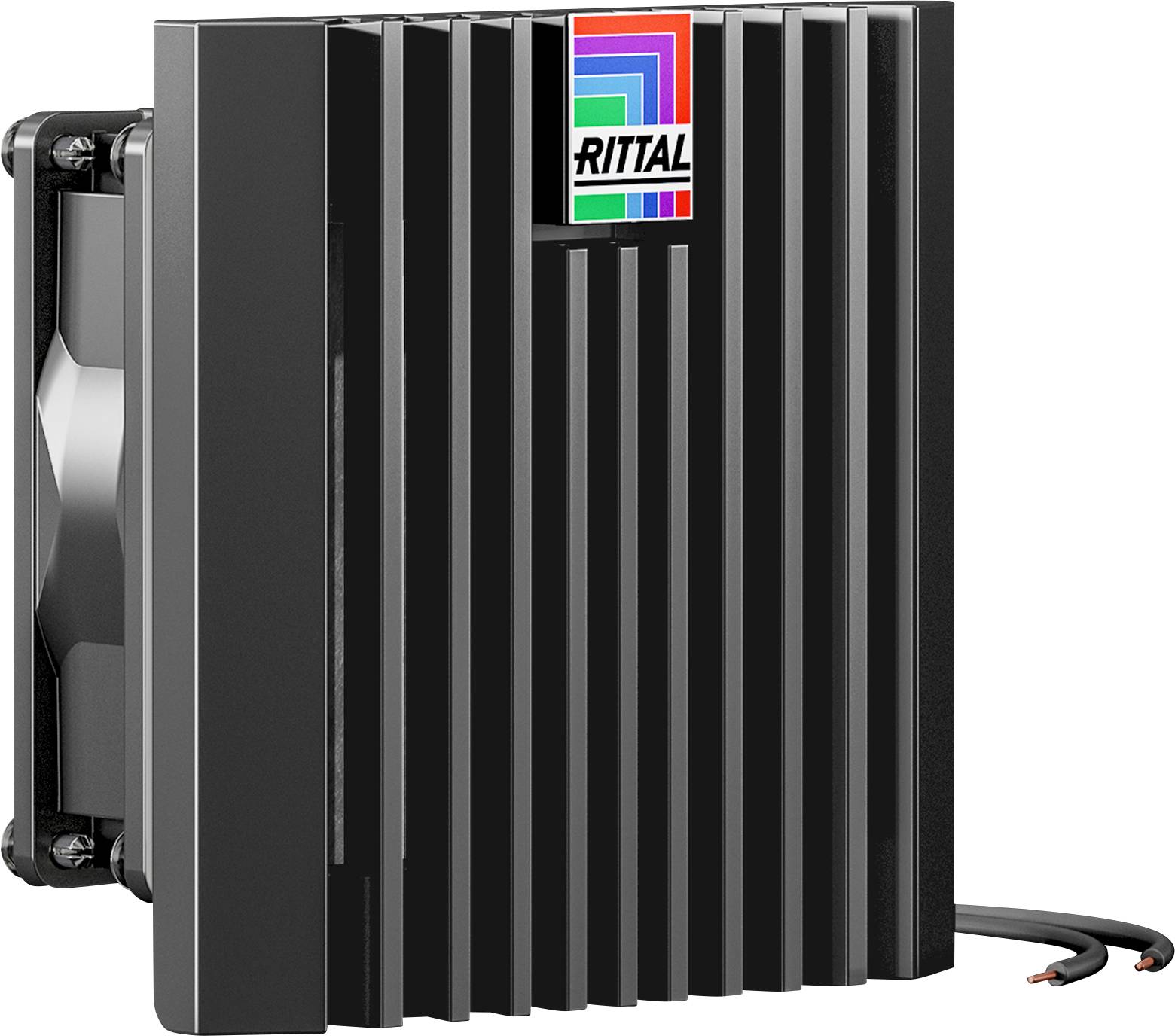

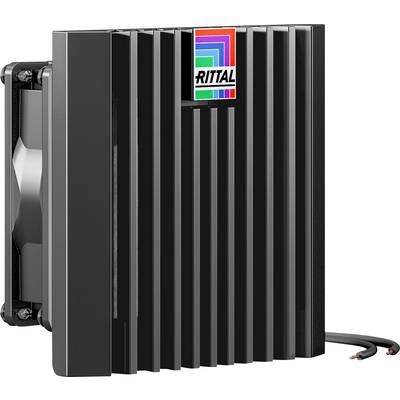

Rittal SK 3237.708 Fan and filter 230 V 11.1 W, 13 W (W x H x D) 116.5 x 116.5 x 64.5 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan and filter
Operating voltage
230 V
Power
11.1 W
13 W
Noise emission (max.)
47 dBa
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
Technical specifications
- Material: plastic
- Net weight: 0.45 kg
- Gross weight: 0.468 kg
- Dimensions: Width 116.5 mm
- Height: 116.5 mm
- Depth: 64.5 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
- Installation without any tools
- Colour RAL 9005
- Design: Wall-mounting
- Rated operating voltage 230 V, 1~, 50 Hz/60 Hz
- Sound pressure level: At 50 Hz: 42 dB(A)
- At 60 Hz 47 dB(A)
- Operating temperature range --15°C...55°C.
- Nominal capacity Pel: At 50 Hz: 13 W.
- At 60 Hz 11.1 W
- Rated current max.: At 50 Hz: 0.1 A
- At 60 Hz 0.09 A
- Storage temperature range -30°C...70°C.
- Fuse: Circuit breaker / safety fuse 2 A
- Protection class NEMA: Type 12 with nonwoven filter
- Type 3
- Type 3R with fleece filter and water spray hood
- Fan: Axial, split pole motor
- Air flow free-blowing (with fleece filter): At 50 Hz: 20 m³/h.
- At 60 Hz: 25 m³/h
- Installation depth: 46 mm
- Mounting cut-out width: 92 mm
- Outbreak - Height 92 mm
- Air power with associated outlet filter incl. nonwoven filter: At 50 Hz: 15 m³/h.
- At 60 Hz: 18 m³/h
- IP to IEC 60 529: IP54 with nonwoven filter
- IP56 with fleece filter and jet-water hood
- Packaging type
Piece
- Product type
Fan and filter
- Type
SK 3237.708
- Features
incl. filter
- Operating voltage
230 V
- Max. current consumption
0.1 A
11.1 W
13 W
- Noise emission (max.)
47 dBa
- Air flow rate
25 m³/h
20 m³/h
- Compatible with
Rittal
- Factory colour
Black (RAL 9005)
- Min. temperature
-15 °C
- Max. temperature
+55 °C
IP54
IP56
- Width
116.5 mm
- Height
116.5 mm
- Depth
64.5 mm
- Dim
(W x H x D) 116.5 x 116.5 x 64.5 mm
- Weight
0.45 kg
- Content
1 pc(s)
Snap mounting
Black
116.5 mm
116.5 mm
64.5 mm
9005
FALSE
1
TRUE
IP54
TRUE
TRUE
FALSE
FALSE
TRUE
TRUE
12
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386686 Rittal SK 3237.708 Fan and filter 230 V 11.1 W, 13 W (W x H x D) 116.5 x 116.5 x 64.5 mm Piece 1 pc(s)
Description
SK Blue e+ filter fan, 20/25 m³/h, 230 V, 1~, 50 Hz/60 Hz, BHT 116.5 x 116.5 x 64.5 mm, RAL 9005
Complete fan unit for tool-free assembly on surfaces. Air flow from 20 - 1,160 m³/h, protection class standard IP 54.
This text is machine translated.
Complete fan unit for tool-free assembly on surfaces. Air flow from 20 - 1,160 m³/h, protection class standard IP 54.
This text is machine translated.
