Rittal SK 3238.400 Filter (W x H x D) 148.5 x 148.5 x 34.2 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Filter
Width
148.5 mm
Height
148.5 mm
Depth
34.2 mm
Number
Total (€ 80.66 / piece)
€ 80.66
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 0.15 kg
- Gross weight: 0.217 kg
- Dimensions: Width 148.5 mm
- Height: 148.5 mm
- Depth: 34.2 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- EMC
- Weighs 0.17 kg
- Protection class NEMA: Type 12 with nonwoven filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter and spray water hood
- Mounting cut-out width: 124 mm
- Outbreak - Height 124 mm
- IP to IEC 60 529: IP54 with nonwoven filter
- IP56 with fleece filter and jet-water hood
- Packaging type
Piece
- Product type
Filter
- Type
SK 3238.400
- Features
EMC
- Compatible with
Rittal
- Factory colour
Grey (RAL 7035)
IP54
IP56
- Width
148.5 mm
- Height
148.5 mm
- Depth
34.2 mm
- Dim
(W x H x D) 148.5 x 148.5 x 34.2 mm
- Weight
0.15 kg
- Content
1 pc(s)
Grey
148.5 mm
148.5 mm
34.2 mm
TRUE
Plastic
IP54
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386668 Rittal SK 3238.400 Filter (W x H x D) 148.5 x 148.5 x 34.2 mm Piece 1 pc(s)
Description

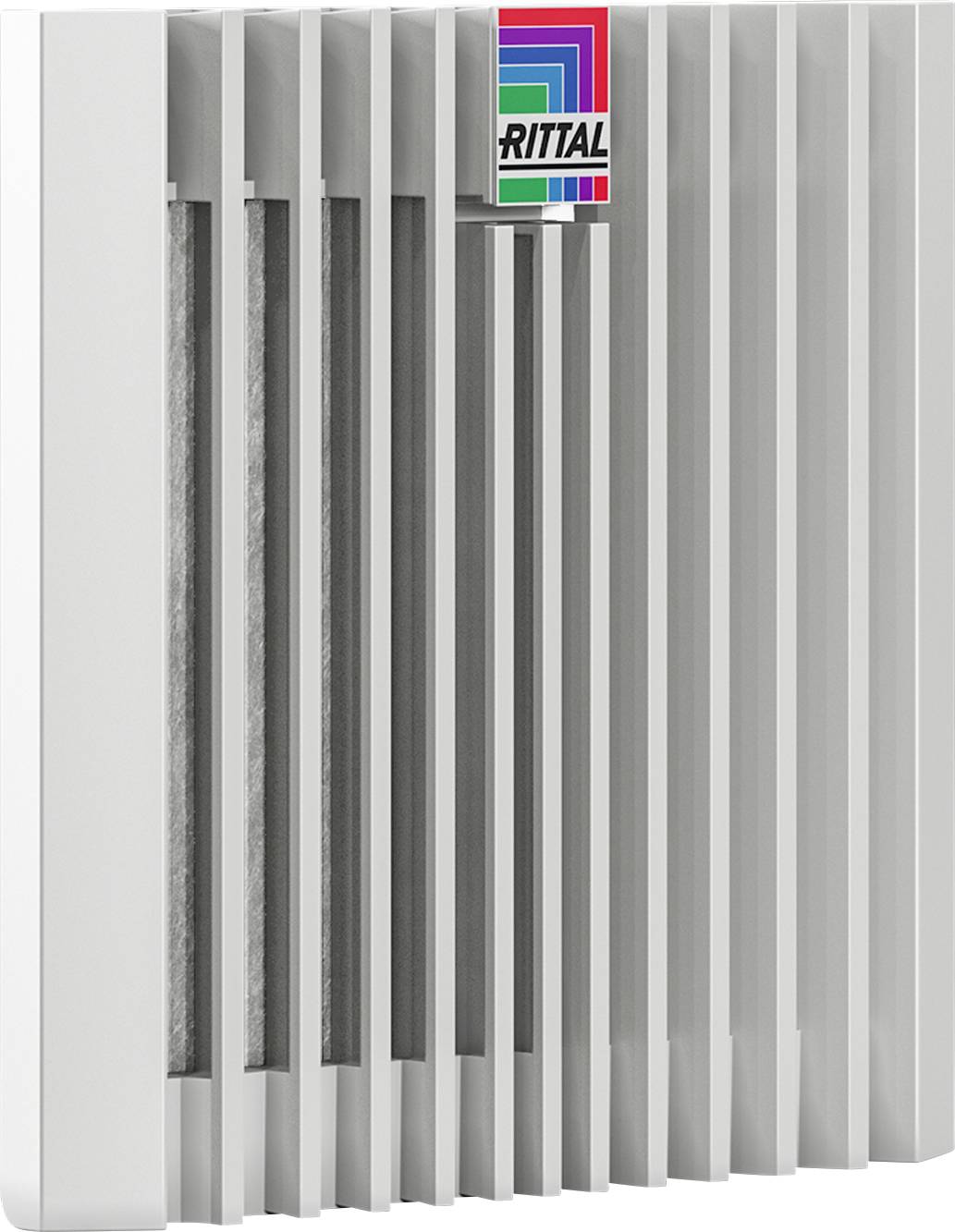

SK Blue e+ outlet filter, EMC, for filter fan 32388.8xx, BH 148.5 x 148.5 mm, RAL 7035
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
