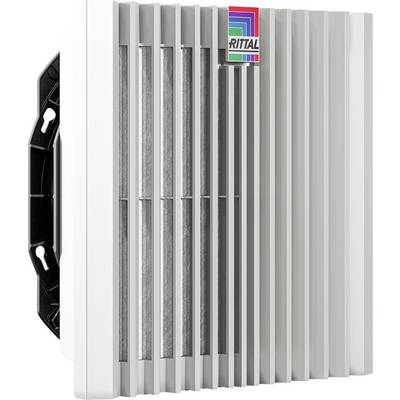

Rittal SK 3240.724 Fan and filter 24 V DC 10.1 W (W x H x D) 255 x 255 x 129 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan and filter
Operating voltage
24 V DC
Power
10.1 W
Noise emission (max.)
48 dBa
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Technical specifications
- Material: plastic
- Net weight: 1.97 kg
- Gross weight: 2.178 kg
- Dimensions: Width 255 mm
- Height: 255 mm
- Depth: 129 mm
- Benefit: Highest air output by pleated filter in the delivery state
- Easy change of filter through a new opening mechanism at the lamellar grid
- Faster mounting on the cabinet by optimized latching hooks
- Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- Rated operating voltage 24 V (DC)
- Sound pressure level: At DC 48 dB(A)
- Operating temperature range --30°C...55°C.
- Rated power Pel: At DC 10.1 W
- Rated current max.: At DC 0.42 A.
- Storage temperature range -30°C...70°C.
- Fuse: Circuit breaker / safety fuse 2 A
- NEMA protection class: Type 12 with nonwoven filter/wrinkle filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter/folding filter and spray water hood
- Fan: Diagonal, DC motor
- Air flow free-blowing (with nonwoven filter): At DC: 175 m³/h.
- Installation depth: 108 mm
- Mounting cut-out width: 224 mm
- Outbreak - Height 224 mm
- Air power with associated outlet filter incl. nonwoven filter: At DC: 130 m³/h.
- Air flow free-blowing (with folded filter): At DC: 218 m³/h.
- IP rating according to IEC 60 529:IP54 with fleece filter/folding filter
- IP55 with folded filter and absorption mat
- IP56 with fleece filter/line filter and jet-water hood
- Air output with associated outlet filter including creased filter: At DC: 191 m³ / h.
- Packaging type
Piece
- Product type
Fan and filter
- Type
SK 3240.724
- Features
incl. filter
- Operating voltage
24 V DC
- Max. current consumption
0.42 A
10.1 W
- Noise emission (max.)
48 dBa
- Air flow rate
218 m³/h
- Compatible with
Rittal
- Factory colour
Grey (RAL 7035)
- Min. temperature
-30 °C
- Max. temperature
+55 °C
IP54
IP55
IP56
- Width
255 mm
- Height
255 mm
- Depth
129 mm
- Dim
(W x H x D) 255 x 255 x 129 mm
- Weight
1.97 kg
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386687 Rittal SK 3240.724 Fan and filter 24 V DC 10.1 W (W x H x D) 255 x 255 x 129 mm Piece 1 pc(s)
Description
SK Blue e+ Filter fan, 218 m³/h, 24 V (DC), BHT 255 x 255 x 129 mm, RAL 7035
Complete fan unit for tool-free assembly on surfaces. Air flow from 20 - 1,160 m³/h, protection class standard IP 54.
This text is machine translated.
Complete fan unit for tool-free assembly on surfaces. Air flow from 20 - 1,160 m³/h, protection class standard IP 54.
