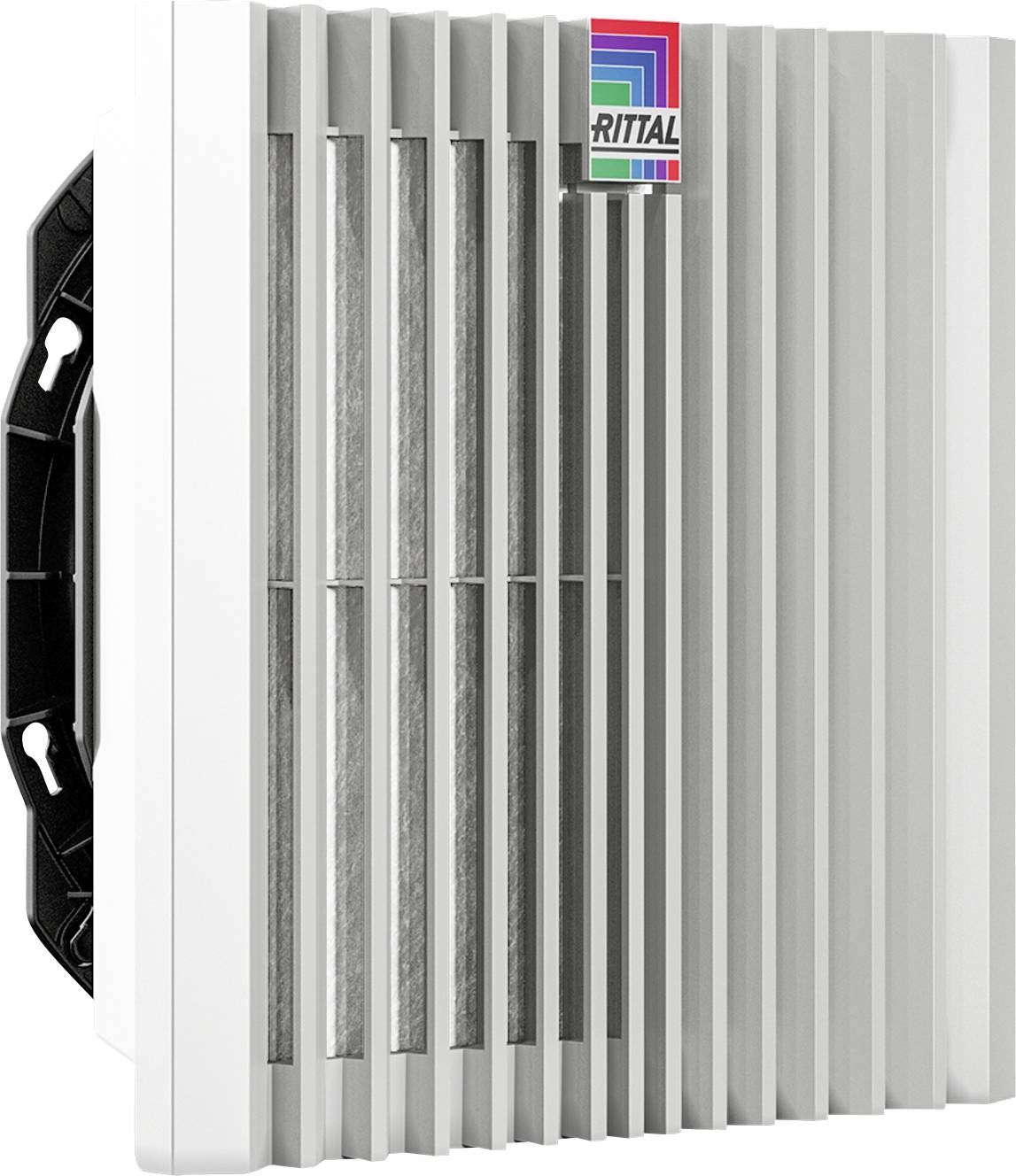

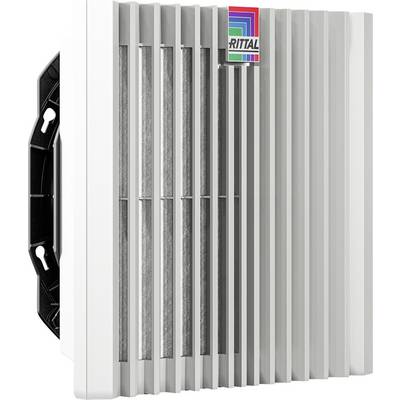

Rittal SK 3240.800 Fan and filter 230 V 37.3 W, 33.1 W (W x H x D) 255 x 255 x 129 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan and filter
Operating voltage
230 V
Power
37.3 W
33.1 W
Noise emission (max.)
45 dBa
Number
Total (€ 273.11 / piece)
€ 273.11
plus VAT.
Technical specifications
- Material: plastic
- Net weight: 2.16 kg
- Gross weight: 2.362 kg
- Dimensions: Width 255 mm
- Height: 255 mm
- Depth: 129 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- EMC
- Rated operating voltage 230 V, 1~, 50 Hz/60 Hz
- Sound pressure level: At 50 Hz: 48 dB(A)
- At 60 Hz 45 dB(A)
- Operating temperature range --30°C...55°C.
- Nominal capacity Pel: At 50 Hz: 33.1 W.
- At 60 Hz 37.3 W
- Rated current max.: At 50 Hz: 0.2 A
- At 60 Hz 0.21 A
- Storage temperature range -30°C...70°C.
- Fuse: Circuit breaker / safety fuse 2 A
- Protection class NEMA: Type 12 with nonwoven filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter and spray water hood
- Fan: Diagonal, split pole motor
- Air flow free-blowing (with fleece filter): At 50 Hz: 175 m³/h.
- At 60 Hz: 157 m³/h
- Installation depth: 108 mm
- Mounting cut-out width: 224 mm
- Outbreak - Height 224 mm
- Air power with associated outlet filter incl. nonwoven filter: At 50 Hz: 130 m³/h.
- At 60 Hz: 112 m³/h
- IP to IEC 60 529: IP54 with nonwoven filter
- IP56 with fleece filter and jet-water hood
- Packaging type
Piece
- Product type
Fan and filter
- Type
SK 3240.800
- Features
EMC
- Operating voltage
230 V
- Max. current consumption
0.21 A
37.3 W
33.1 W
- Noise emission (max.)
45 dBa
- Air flow rate
157 m³/h
175 m³/h
- Compatible with
Rittal
- Factory colour
Grey (RAL 7035)
- Min. temperature
-30 °C
- Max. temperature
+55 °C
IP54
IP56
- Width
255 mm
- Height
255 mm
- Depth
129 mm
- Dim
(W x H x D) 255 x 255 x 129 mm
- Weight
2.16 kg
- Content
1 pc(s)
Snap mounting
Grey
255 mm
255 mm
129 mm
7035
FALSE
1
TRUE
IP54
TRUE
TRUE
FALSE
FALSE
TRUE
TRUE
12
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386720 Rittal SK 3240.800 Fan and filter 230 V 37.3 W, 33.1 W (W x H x D) 255 x 255 x 129 mm Piece 1 pc(s)
Description
SK Blue e+ filter fan, EMC, 175/157 m³/h, 230 V, 1~, 50 Hz/60 Hz, BHT 255 x 255 x 129 mm, RAL 7035
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air flow from 20 - 900 m³/h, protection class standard IP 54.
This text is machine translated.
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air flow from 20 - 900 m³/h, protection class standard IP 54.
