Rittal SK 3243.400 Filter (W x H x D) 323 x 323 x 44.7 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Filter
Width
323 mm
Height
323 mm
Depth
44.7 mm
Type
SK 3243.400
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 0.94 kg
- Gross weight: 0.941 kg
- Dimensions: Width 323 mm
- Height: 323 mm
- Depth: 44.7 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- EMC
- Weighs 0.79 kg
- Protection class NEMA: Type 12 with nonwoven filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter and spray water hood
- Mounting cut-out width: 292 mm
- Outbreak - Height 292 mm
- IP to IEC 60 529: IP54 with nonwoven filter
- IP56 with fleece filter and jet-water hood
- Product type
Filter
- Type
SK 3243.400
- Features
EMC
- Compatible with
Rittal
- Factory colour
Grey (RAL 7035)
IP54
IP56
- Width
323 mm
- Height
323 mm
- Depth
44.7 mm
- Dim
(W x H x D) 323 x 323 x 44.7 mm
- Weight
0.94 kg
- Content
1 pc(s)
Grey
323 mm
323 mm
44.7 mm
TRUE
Plastic
IP54
TRUE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386671 Rittal SK 3243.400 Filter (W x H x D) 323 x 323 x 44.7 mm 1 pc(s)
Description

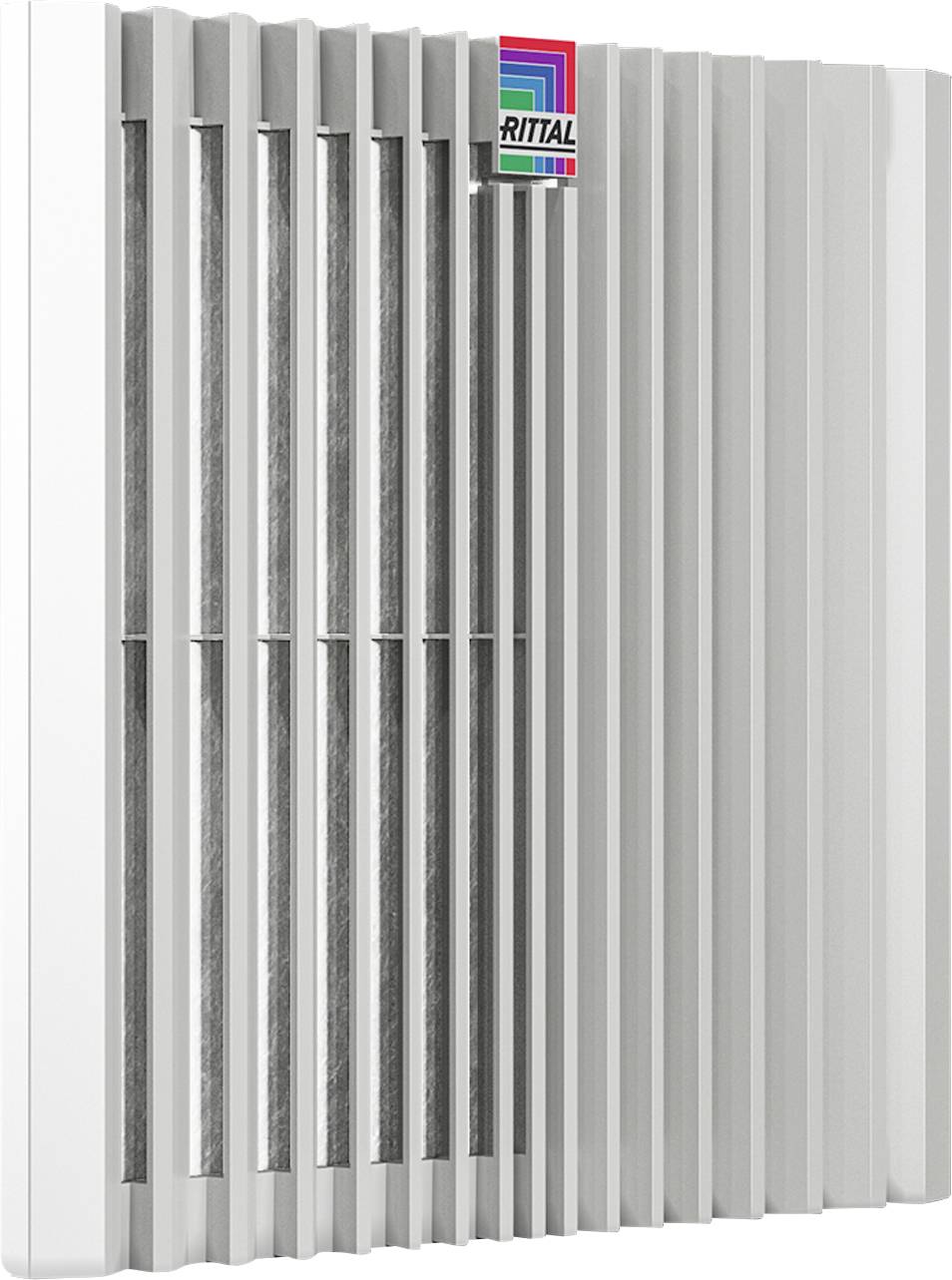

SK Blue e+ outlet filter, EMC, for filter fan 3243.8xx/3244.8xx/3245.8xx, BH 323 x 323 mm, RAL 7035
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
For ventilation through convection, one outlet filter can be used in both the lower and upper areas of the control cabinet.
This text is machine translated.
