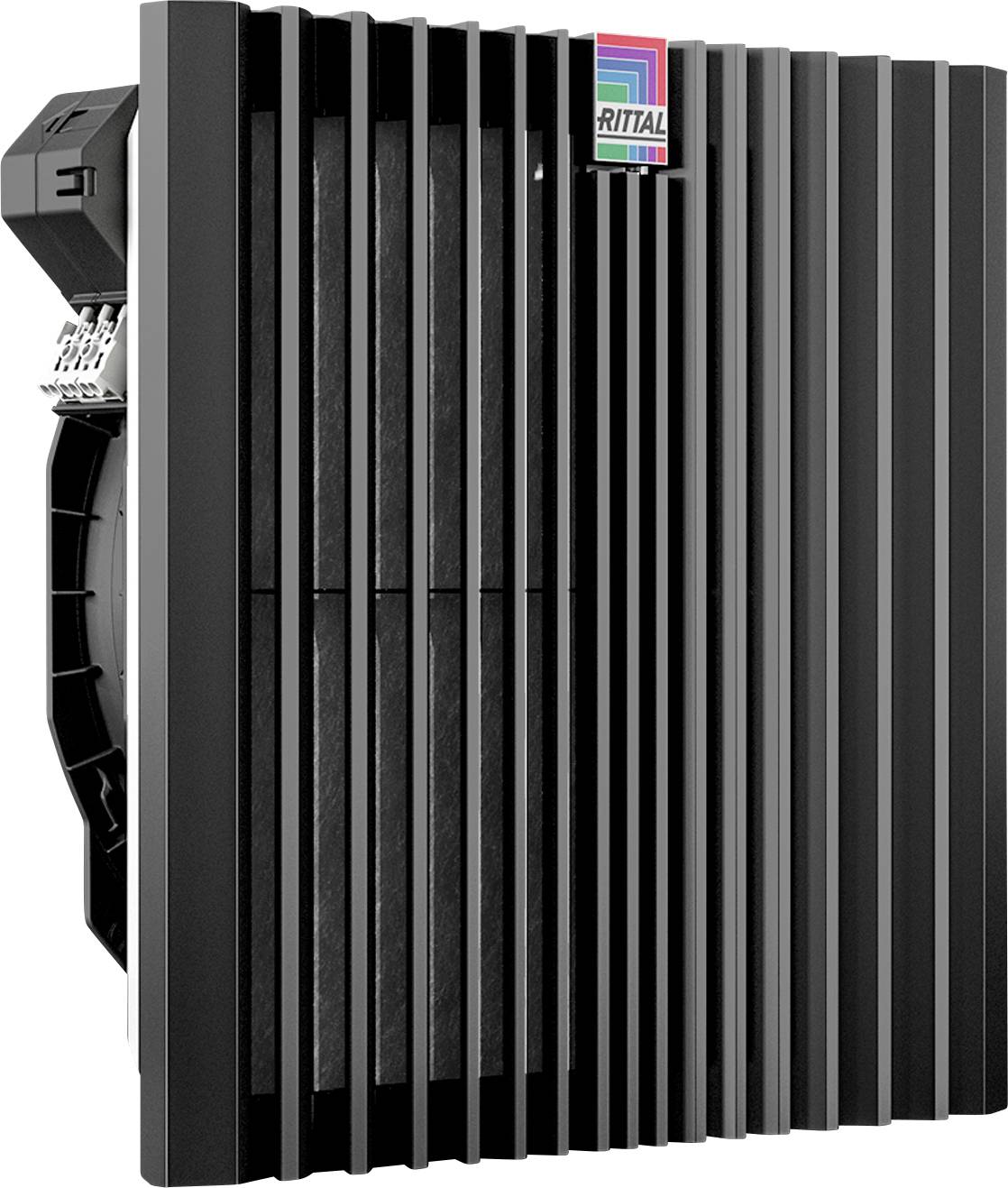

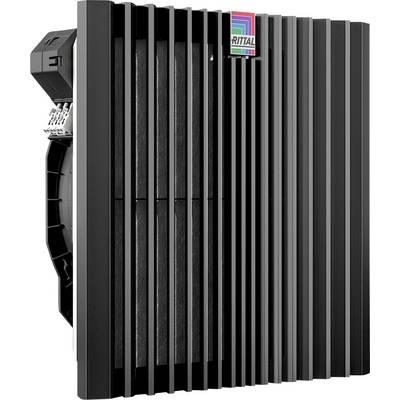

Rittal SK 3243.708 Fan and filter 230 V 106.4 W, 77.7 W (W x H x D) 323 x 323 x 144.5 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan and filter
Operating voltage
230 V
Power
106.4 W
77.7 W
Noise emission (max.)
65 dBa
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Technical specifications
- Material: plastic
- Net weight: 4 kg
- Gross weight: 4.297 kg
- Dimensions: Width 323 mm
- Height: 323 mm
- Depth: 144.5 mm
- Benefit: Highest air output by pleated filter in the delivery state
- Easy change of filter through a new opening mechanism at the lamellar grid
- Faster mounting on the cabinet by optimized latching hooks
- Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
- Installation without any tools
- Colour RAL 9005
- Design: Wall-mounting
- Rated operating voltage 230 V, 1~, 50 Hz/60 Hz
- Sound pressure level: At 50 Hz: 62 dB(A)
- At 60 Hz 65 dB(A)
- Operating temperature range --30°C...55°C.
- Nominal capacity Pel: At 50 Hz: 77.7 W.
- At 60 Hz 106.4 W
- Rated current max.: At 50 Hz: 0.39 A
- At 60 Hz 0.47 A
- Storage temperature range -30°C...70°C.
- Fuse: Circuit breaker / safety fuse 4 A
- NEMA protection class: Type 12 with nonwoven filter/wrinkle filter
- Type 3
- Type 3R
- Type 4
- Type 4X with fleece filter/folding filter and spray water hood
- Fan: Diagonal, 1~ capacitor motor
- Air flow free-blowing (with fleece filter): At 50 Hz: 540 m³/h.
- At 60 Hz: 590 m³/h
- Installation depth: 124 mm
- Mounting cut-out width: 292 mm
- Outbreak - Height 292 mm
- Air power with associated outlet filter incl. nonwoven filter: At 50 Hz: 444 m³/h.
- At 60 Hz: 498 m³/h
- Air performance free-blowing (with folded filter): At 50 Hz: 625 m³/h.
- At 60 Hz: 716 m³/h
- IP rating according to IEC 60 529:IP54 with fleece filter/folding filter
- IP55 with folded filter and absorption mat
- IP56 with fleece filter/line filter and jet-water hood
- Air output with associated outlet filter including creased filter: At 50 Hz: 565 m³/h.
- At 60 Hz: 645 m³/h
- Packaging type
Piece
- Product type
Fan and filter
- Type
SK 3243.708
- Features
incl. filter
- Operating voltage
230 V
- Max. current consumption
0.47 A
106.4 W
77.7 W
- Noise emission (max.)
65 dBa
- Air flow rate
716 m³/h
625 m³/h
- Compatible with
Rittal
- Factory colour
Black (RAL 9005)
- Min. temperature
-30 °C
- Max. temperature
+55 °C
IP54
IP55
IP56
- Width
323 mm
- Height
323 mm
- Depth
144.5 mm
- Dim
(W x H x D) 323 x 323 x 144.5 mm
- Weight
4 kg
- Content
1 pc(s)
Snap mounting
Black
323 mm
323 mm
144.5 mm
9005
FALSE
1
FALSE
IP54
TRUE
TRUE
FALSE
FALSE
TRUE
TRUE
12
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386700 Rittal SK 3243.708 Fan and filter 230 V 106.4 W, 77.7 W (W x H x D) 323 x 323 x 144.5 mm Piece 1 pc(s)
Description
SK Blue e+ filter fan, 625/716 m³/h, 230 V, 1~, 50 Hz/60 Hz, BHT 323 x 323 x 144.5 mm, RAL 9005
Complete fan unit for tool-free assembly on surfaces. Air flow from 20 - 1,160 m³/h, protection class standard IP 54.
This text is machine translated.
Complete fan unit for tool-free assembly on surfaces. Air flow from 20 - 1,160 m³/h, protection class standard IP 54.
