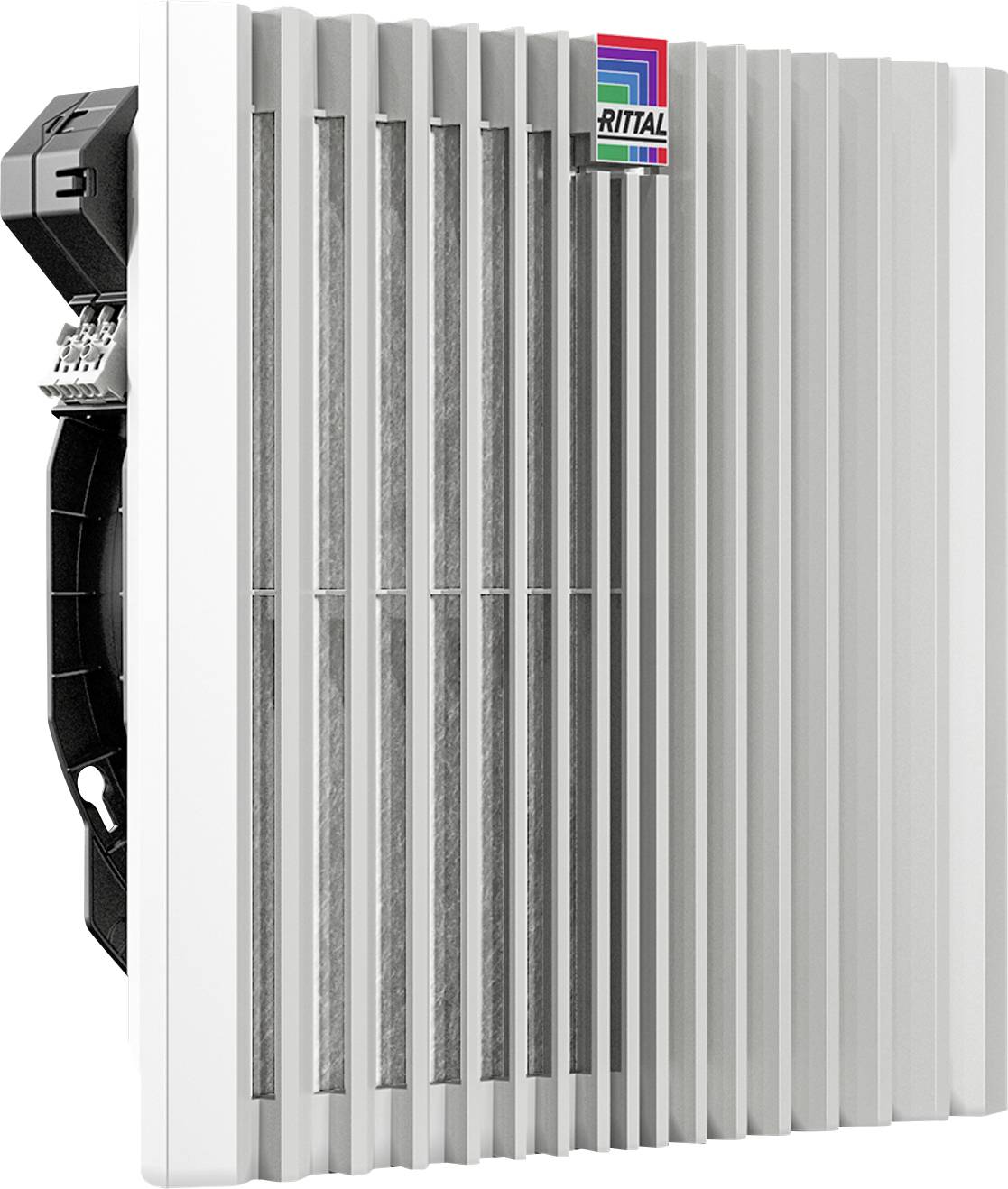

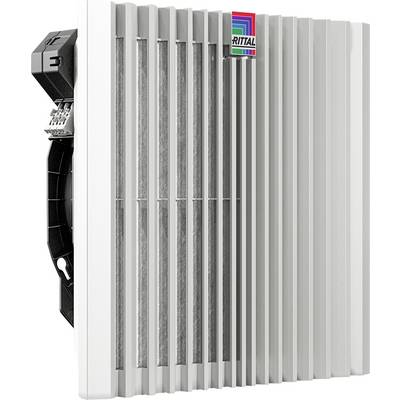

Rittal SK 3245.810 Fan and filter 174.6 W (W x H x D) 323 x 323 x 156 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan and filter
Power
174.6 W
Noise emission (max.)
72 dBa
Width
323 mm
Number
Total (€ 738.66 / piece)
€ 738.66
plus VAT.
14-day return policy included
Blue e+ EMC filter fan 931 m³/h, 100 V-130 V, RAL 7035
Technical specifications
- Material: plastic
- Dimensions: Width 323 mm
- Height: 323 mm
- Depth: 156 mm
- Benefit: Easy filter change through a new opening mechanism on the louver grid
- Faster mounting on the cabinet by optimized latching hooks
- Diagonal fan technology provides for a more even and constant ventilation of the control cabinet through higher pressure stability
- Installation without any tools
- Colour RAL 7035
- Design: Wall-mounting
- EMC
- Rated operating voltage 100 V - 130 V, 1~, 50 Hz/60 Hz
- Sound pressure level: At 50 Hz: 72 dB(A)
- Operating temperature range --25°C...55°C.
- Nominal capacity Pel: At 50 Hz: 174.6 W.
- Rated current max.: At 50 Hz: 2.52 A
- Storage temperature range -25°C...70°C.
- Protection class NEMA: Type 12 with nonwoven filter
- Type 3
- Type 3R with fleece filter and water spray hood
- Fan: Diagonal, EC-motor
- Air flow free-blowing (with fleece filter): At 50 Hz: 931 m³/h.
- Installation depth: 136 mm
- Mounting cut-out width: 292 mm
- Outbreak - Height 292 mm
- Air power with associated outlet filter incl. nonwoven filter: At 50 Hz: 728 m³/h.
- Interfaces: 0 - 10 V/PWM input
- Speed output
- Protection class IP according to IEC 60 529: IP51 with fleece filter
- IP56 with fleece filter and jet-water hood
- Packaging type
Piece
- Product type
Fan and filter
- Type
SK 3245.810
- Features
EMC
- Min. operating voltage
100 V
- Max. operating voltage
130 V
- Operating voltage
100 - 130 V
- Max. current consumption
2.52 A
174.6 W
- Noise emission (max.)
72 dBa
- Air flow rate
931 m³/h
- Compatible with
Rittal
- Factory colour
Grey (RAL 7035)
- Min. temperature
-25 °C
- Max. temperature
+55 °C
IP51
IP56
- Width
323 mm
- Height
323 mm
- Depth
156 mm
- Dim
(W x H x D) 323 x 323 x 156 mm
- Weight
0.000
- Content
1 pc(s)
Snap mounting
Grey
323 mm
323 mm
156.5 mm
7035
AC
FALSE
1
TRUE
IP54
TRUE
TRUE
FALSE
FALSE
931 m³/h
TRUE
TRUE
12
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386729 Rittal SK 3245.810 Fan and filter 174.6 W (W x H x D) 323 x 323 x 156 mm Piece 1 pc(s)
Description
SK Blue e+ Filter fan, EMC, 931 m³/h, 100 V - 130 V, 1~, 50 Hz/60 Hz, BHT 323 x 323 x 156.5 mm, RAL 7035
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air flow from 20 - 900 m³/h, protection class standard IP 54.
This text is machine translated.
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air flow from 20 - 900 m³/h, protection class standard IP 54.
