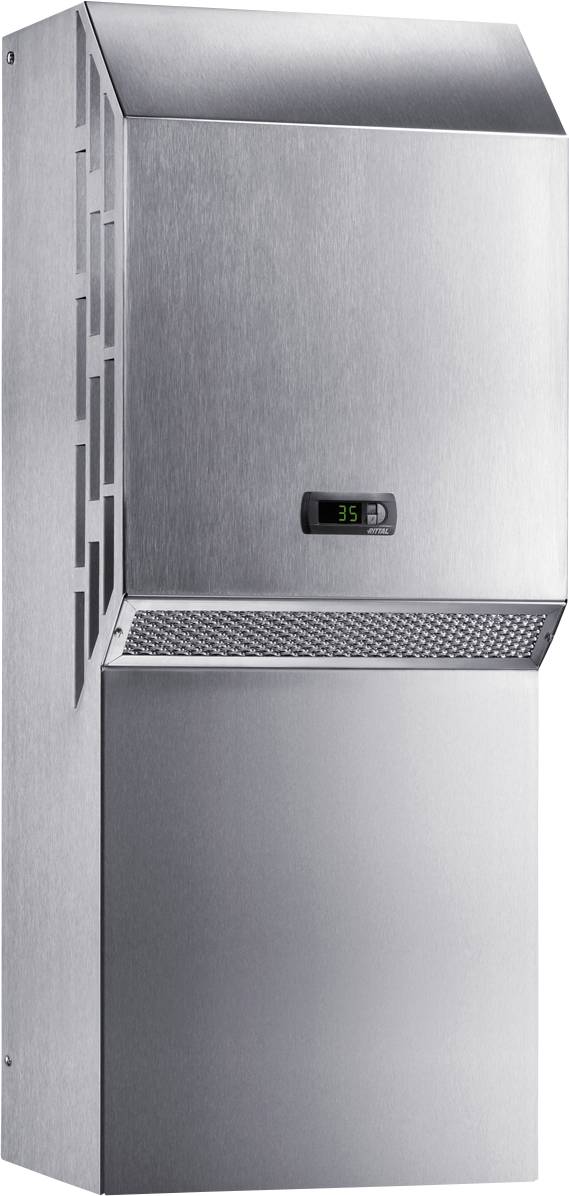

Rittal SK 3305.514 Cooler 115 V 1 kW (W x H x D) 405 x 1020 x 358 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cooler
Operating voltage
115 V
Power
1 kW
Width
405 mm
Height
1020 mm
Number
Total (€ 4,172.27 / piece)
€ 4,172.27
plus VAT.
14-day return policy included
Technical specifications
- Material: Stainless steel 1.4404 (AISI 316L)
- Net weight: 69.25 kg
- Gross weight: 71.75 kg
- Dimensions: Width 405 mm
- Height: 1,020 mm
- Depth: 358 mm
- Benefit: Network-enabled with the IoT interface via Blue e IoT adapter for cooling devices starting with 500 W cooling power with e-Comfort controller
- Colour RAL 7001
- Design: Wall-mounting
- Air flow (free-blowing): External circuit: 805 m³/h.
- Internal circuit: 585 m³/h.
- Rated operating voltage 115 V, 1~, 50 Hz/60 Hz
- Temperature control: E-Comfort controller (factory setting +35 °C)
- Operating temperature range -10°C...55°C.
- Refrigerant/Coolant: Refrigerant: R-513A
- Quantity: 0.61 kg
- Global Warming Potential (GWP): 631
- CO2 equivalent (CODOS e): 0.38 t
- Rated power Pel: Rated power L35 L35/50 Hz: 0.87 kW
- Rated power L35 L35/60 Hz: 0.96 kW
- Rated power L35 L50/50 Hz: 0.91 kW
- Rated power L35 L50/60 Hz: 1 kW
- Rated current max.: At 50 Hz: 11.5 A
- At 60 Hz 12.5 A
- Starting current (max.): At 50 Hz: 26 A
- At 60 Hz 28 A
- Total cooling power according to DIN EN 14511: Cooling power L35 L35/50 Hz: 1.6 kW
- Cooling performance L35 L35/60 Hz: 1.73 kW
- Cooling performance L35 L50/50 Hz: 1.18 kW
- Cooling performance L35 L50/60 Hz: 1.26 kW
- Energy efficiency ratio (EER) 50/60 Hz L35 L35: Cooling rate L35 L35 (EER) 50 Hz: 1.83
- Cooling power L35 L35 (EER) 60 Hz: 1.79
- Protection class IP according to EN 60 529: External circuit IP 34
- Internal circuit IP 55
- Storage temperature range -40°C...70°C.
- Setting range 20 °C...50 °C
- Permissible operating pressure (p max.): 25 bar
- Fuse: Transformer circuit breaker: 14...20 A
- NEMA 4X PROTECTION RATING
- Product type
Cooler
- Type
SK 3305.514
- Features
Fan
- Operating voltage
115 V
- Max. current consumption
28 A
1 kW
- Air flow rate
805 m³/h
585 m³/h
- Compatible with
Rittal
- Factory colour
Grey (RAL 7001)
- Min. temperature
+10 °C
- Max. temperature
+55 °C
IP34
IP55
- Width
405 mm
- Height
1020 mm
- Depth
358 mm
- Dim
(W x H x D) 405 x 1020 x 358 mm
- Weight
69.25 kg
- Content
1 pc(s)
405 mm
Air/air
1020 mm
358 mm
AC
FALSE
TRUE
TRUE
1500 W
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386796 Rittal SK 3305.514 Cooler 115 V 1 kW (W x H x D) 405 x 1020 x 358 mm 1 pc(s)
Description
SK Blue e cooler, wall mount, NEMA 4X, 1.5 kW, 115 V, 1~, 50/60 Hz, stainless steel, BHT 405 x 1020 x 358 mm
Energy-efficient blue e wall-mounted cooling devices in the power classes 500 W to 2,500 W with standard integrated e-comfort controller and electrical condensation. Protection class NEMA 4X.
This text is machine translated.
Energy-efficient blue e wall-mounted cooling devices in the power classes 500 W to 2,500 W with standard integrated e-comfort controller and electrical condensation. Protection class NEMA 4X.
