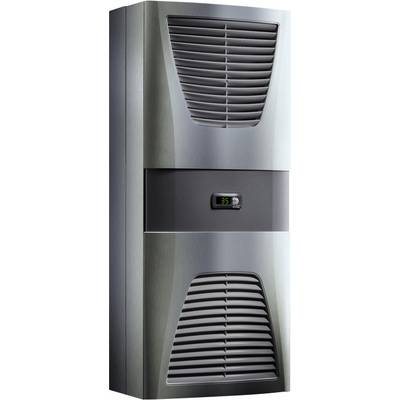

Rittal SK 3305.610 Cooler 115 V 1 kW (W x H x D) 400 x 950 x 260 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cooler
Operating voltage
115 V
Power
1 kW
Width
400 mm
Height
950 mm
Number
Total (€ 3,209.24 / piece)
€ 3,209.24
plus VAT.
Technical specifications
- Material: Stainless steel 1.4301 (AISI 304)
- Net weight: 46 kg
- Gross weight: 46 kg
- Dimensions: Width 400 mm
- Height: 950 mm
- Depth: 260 mm
- Benefit: Network-enabled with the IoT interface via Blue e IoT adapter for cooling devices starting with 500 W cooling power with e-Comfort controller
- Colour RAL 9007
- Design: Wall-mounting
- Air flow (free-blowing): External circuit: 805 m³/h.
- Internal circuit: 585 m³/h.
- Rated operating voltage 115 V, 1~, 50 Hz/60 Hz
- Temperature control: E-Comfort controller (factory setting +35 °C)
- Operating temperature range -10°C...55°C.
- Refrigerant/Coolant: Refrigerant: R-513A
- Quantity: 0.61 kg
- Global Warming Potential (GWP): 631
- CO2 equivalent (CODOS e): 0.38 t
- Rated power Pel: Rated power L35 L35/50 Hz: 0.87 kW
- Rated power L35 L35/60 Hz: 0.96 kW
- Rated power L35 L50/50 Hz: 0.91 kW
- Rated power L35 L50/60 Hz: 1 kW
- Rated current max.: At 50 Hz: 11.5 A
- At 60 Hz 12.5 A
- Starting current (max.): At 50 Hz: 26 A
- At 60 Hz 28 A
- Total cooling power according to DIN EN 14511: Cooling power L35 L35/50 Hz: 1.6 kW
- Cooling performance L35 L35/60 Hz: 1.73 kW
- Cooling performance L35 L50/50 Hz: 1.18 kW
- Cooling performance L35 L50/60 Hz: 1.26 kW
- Energy efficiency ratio (EER) 50/60 Hz L35 L35: Cooling rate L35 L35 (EER) 50 Hz: 1.83
- Cooling power L35 L35 (EER) 60 Hz: 1.79
- Protection class IP according to EN 60 529: External circuit IP 34
- Internal circuit IP 54
- Storage temperature range -40°C...70°C.
- Setting range 20 °C...55 °C
- Permissible operating pressure (p max.): 25 bar
- Fuse: Transformer circuit breaker: 14...20 A
- Protection class NEMA UL type 12
- Product type
Cooler
- Type
SK 3305.610
- Operating voltage
115 V
- Max. current consumption
28 A
1 kW
- Air flow rate
805 m³/h
585 m³/h
- Factory colour
Grey-aluminium (RAL 9007)
- Min. temperature
+10 °C
- Max. temperature
+55 °C
IP34
IP54
- Width
400 mm
- Height
950 mm
- Depth
260 mm
- Dim
(W x H x D) 400 x 950 x 260 mm
- Weight
46 kg
- Content
1 pc(s)
400
Other
950 mm
260 mm
AC
FALSE
TRUE
FALSE
10-55 °C
104-126 V
104-126 V
1500 W
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386794 Rittal SK 3305.610 Cooler 115 V 1 kW (W x H x D) 400 x 950 x 260 mm 1 pc(s)
Description
SK Blue e cooler, wall mount, 1.5 kW, 115 V, 1~, 50/60 Hz, stainless steel, BHT 400 x 950 x 260 mm
Energy-efficient blue e wall-mounted coolers in the power classes 300 W to 4000 W and starting from 1000 W with integrated electrical condensation. Available in the special formats "across" and "flat".
This text is machine translated.
Energy-efficient blue e wall-mounted coolers in the power classes 300 W to 4000 W and starting from 1000 W with integrated electrical condensation. Available in the special formats "across" and "flat".
