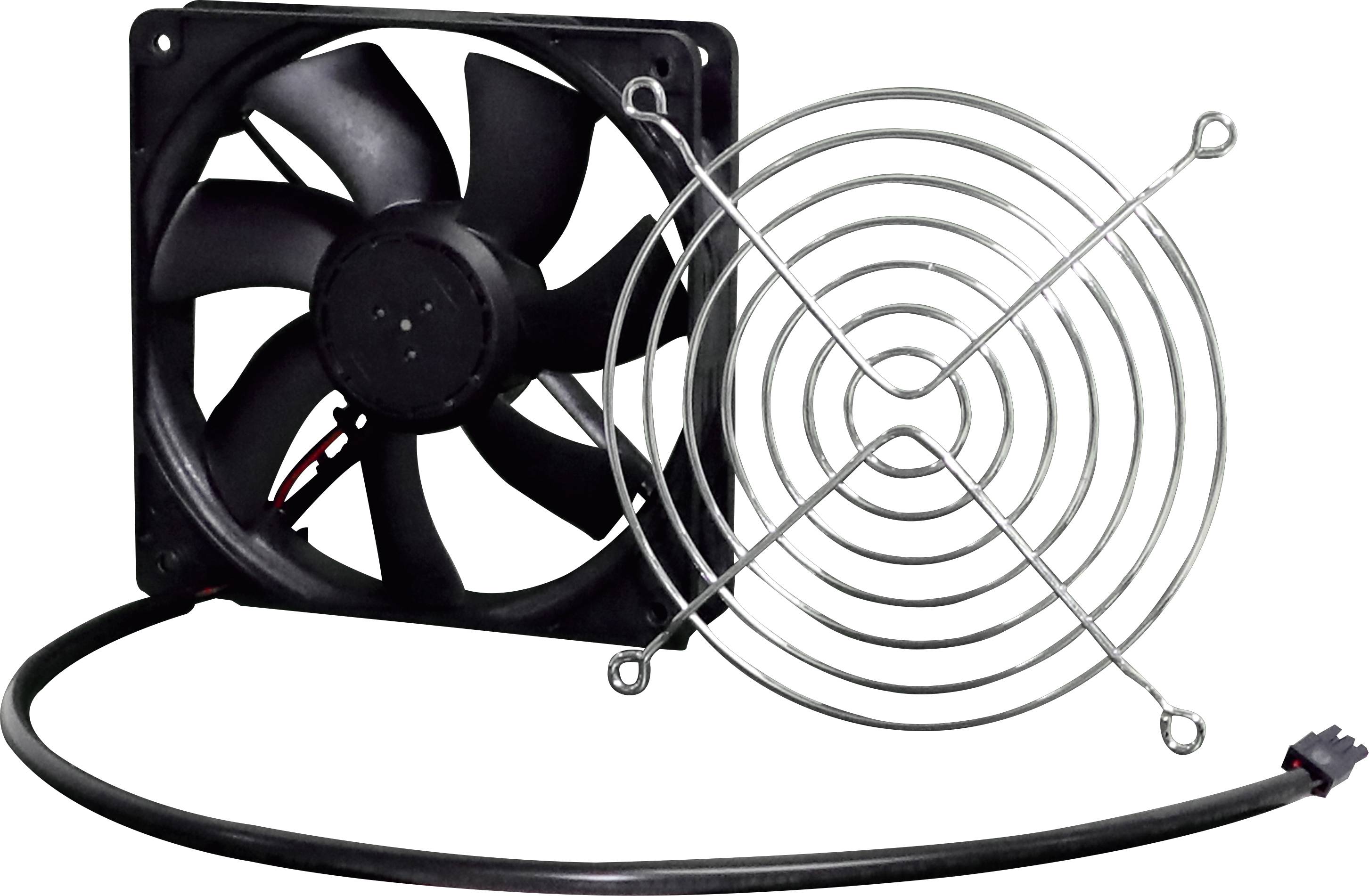

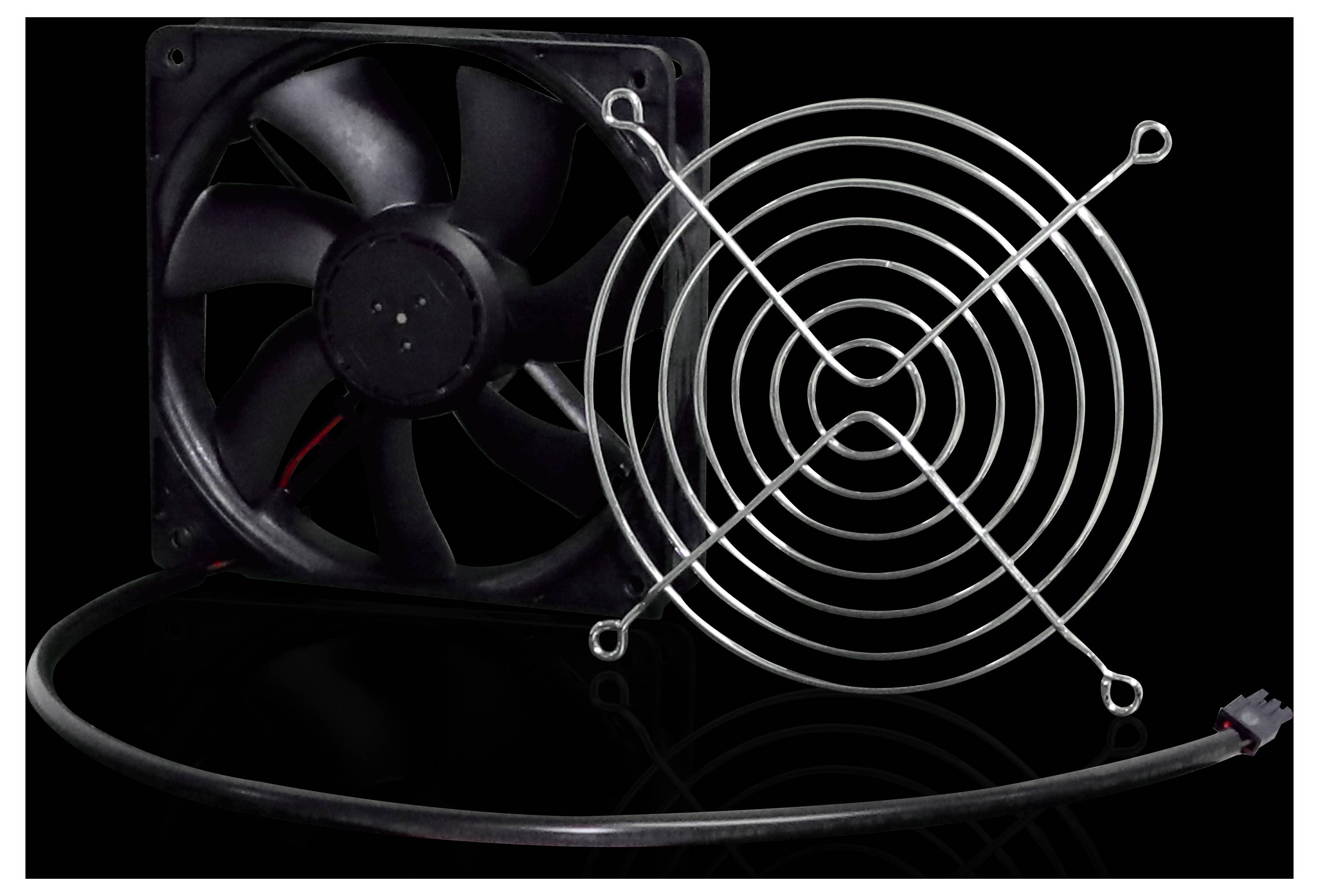

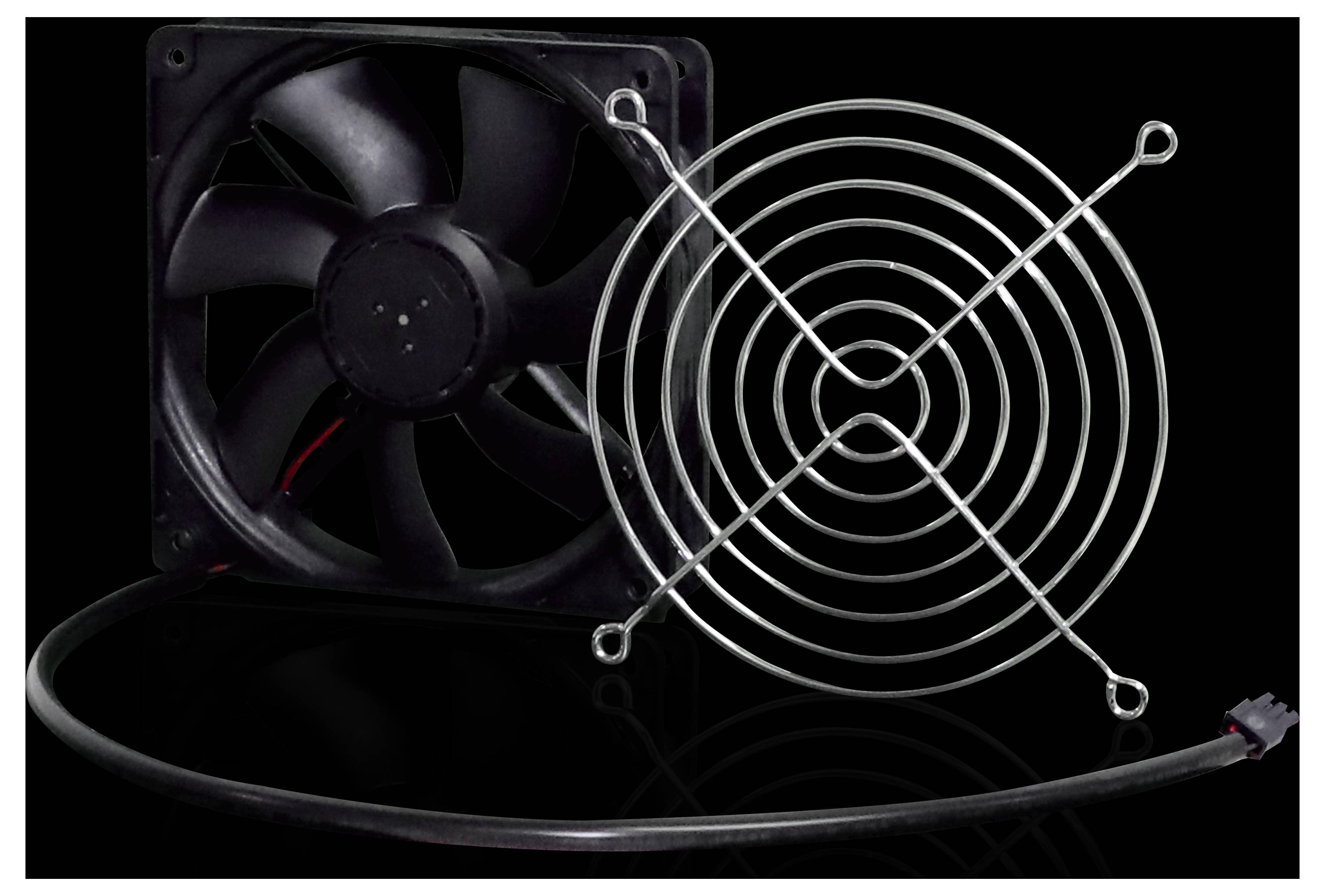

Rittal SK 7990.000 Fan expansion set 24 V DC 7.7 W (W x H x D) 119 x 25 x 119 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fan expansion set
Operating voltage
24 V DC
Power
7.7 W
Noise emission (max.)
44 dBa
Width
119 mm
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
14-day return policy included
SK fan extension set, speed-controlled, for fan modules
Technical specifications
- Material: plastic
- Net weight: 0.3 kg
- Gross weight: 0.308 kg
- Dimensions: Width 119 mm
- Height: 25 mm
- Depth: 119 mm
- Benefit: Ready to connect complete solution
- Energy efficient speed regulation with pre-set characteristic curve
- International approvals and multi-voltage capability for worldwide use
- Colour RAL 9005
- Design: Without roof sheet
- Rated operating voltage 24 V (DC)
- Operating temperature range -5°C...55°C.
- Rated current max.: At 50 Hz: 0.32 A
- At 60 Hz 0.32 A
- Air output (operating point): 150 m³/h.
- Speed 100%
- Sound pressure level (operating point): 44 dB(A)
- Rated output: 7.7 W
- Protection class IP according to IEC 60 529:IP 20
- Product type
Fan expansion set
- Type
SK 7990.000
- Operating voltage
24 V DC
- Max. current consumption
0.32 A
7.7 W
- Noise emission (max.)
44 dBa
- Air flow rate
150 m³/h
- Compatible with
Rittal
- Factory colour
Black (RAL 9005)
- Min. temperature
+5 °C
- Max. temperature
+55 °C
IP20
- Width
119 mm
- Height
25 mm
- Depth
119 mm
- Dim
(W x H x D) 119 x 25 x 119 mm
- Weight
0.3 kg
- Content
1 pc(s)
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3386809 Rittal SK 7990.000 Fan expansion set 24 V DC 7.7 W (W x H x D) 119 x 25 x 119 mm 1 pc(s)
Description
SK fan expansion set speed-controlled, 192 m³/h free-blowing, for fan modules, BHT:119x25x119 mm, RAL 9005
Fan expansion set with integrated speed controller for retrofitting in the fan modules 5503,010, 5503,020 and 5503,025.
This text is machine translated.
Fan expansion set with integrated speed controller for retrofitting in the fan modules 5503,010, 5503,020 and 5503,025.
