Rittal SZ 2482.310 Interface cover Die cast Graphite grey (RAL 7024) (W x H) 130 mm x 120 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Interface cover
Material
Die cast
Type
Mounting frame double, with plastic flap
Factory colour
Graphite grey (RAL 7024)
Datasheet (PDF)
Interface cover SZ
Technical specifications
- Packaging type
Piece
- Product type
Interface cover
- Type
Mounting frame double, with plastic flap
- Factory colour
Graphite grey (RAL 7024)
IP65
- Width
130 mm
- Height
120 mm
- Dim
(W x H) 130 mm x 120 mm
- Weight
0.000
- Material
Die cast
- Content
1 pc(s)
- Type
SZ 2482.310
- RoHS-compliant
Yes
Grey
130
Other
120 mm
21 mm
7024
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1048426 Rittal SZ 2482.310 Interface cover Die cast Graphite grey (RAL 7024) (W x H) 130 mm x 120 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1048426 Rittal SZ 2482.310 Interface cover Die cast Graphite grey (RAL 7024) (W x H) 130 mm x 120 mm 1 pc(s) Piece
Description
Can be used universally everywhere, where a quick access to interfaces and outlets is necessary. The affected housing remains closed and is thus protected against environmental influences and unauthorized access.
Space-saving installation, for example, in small cases and compact control cabinets as a programming interface for control systems; in IT and industrial distributors as a maintenance-free access networks; in PC-barriers and panel systems for temporary connection of additional devices; in mobile Industrial Workstations for quick connect to existing network structures; in command panel systems for programming and wait for integrated components.

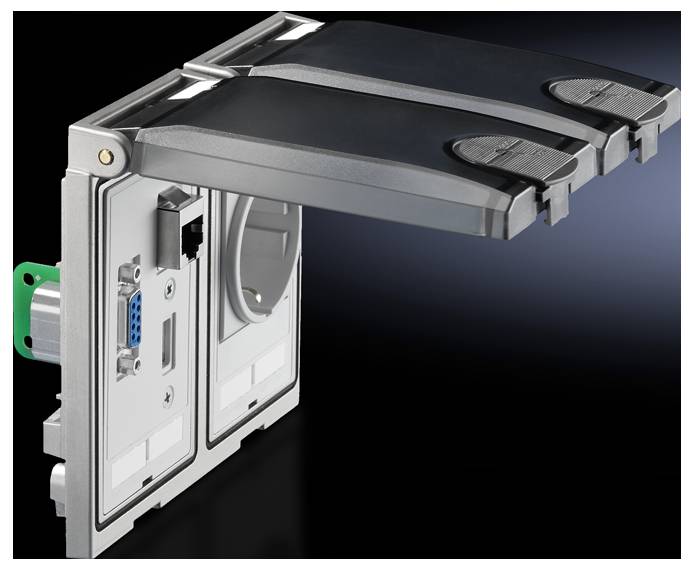

The built-in frame has a flap which in case of opening angles of 90 to 180 degrees in several steps snaps into place. A snap closure provides for a secure sealing. If needed, this can be locked.
This text is machine translated.
Space-saving installation, for example, in small cases and compact control cabinets as a programming interface for control systems; in IT and industrial distributors as a maintenance-free access networks; in PC-barriers and panel systems for temporary connection of additional devices; in mobile Industrial Workstations for quick connect to existing network structures; in command panel systems for programming and wait for integrated components.
The built-in frame has a flap which in case of opening angles of 90 to 180 degrees in several steps snaps into place. A snap closure provides for a secure sealing. If needed, this can be locked.
