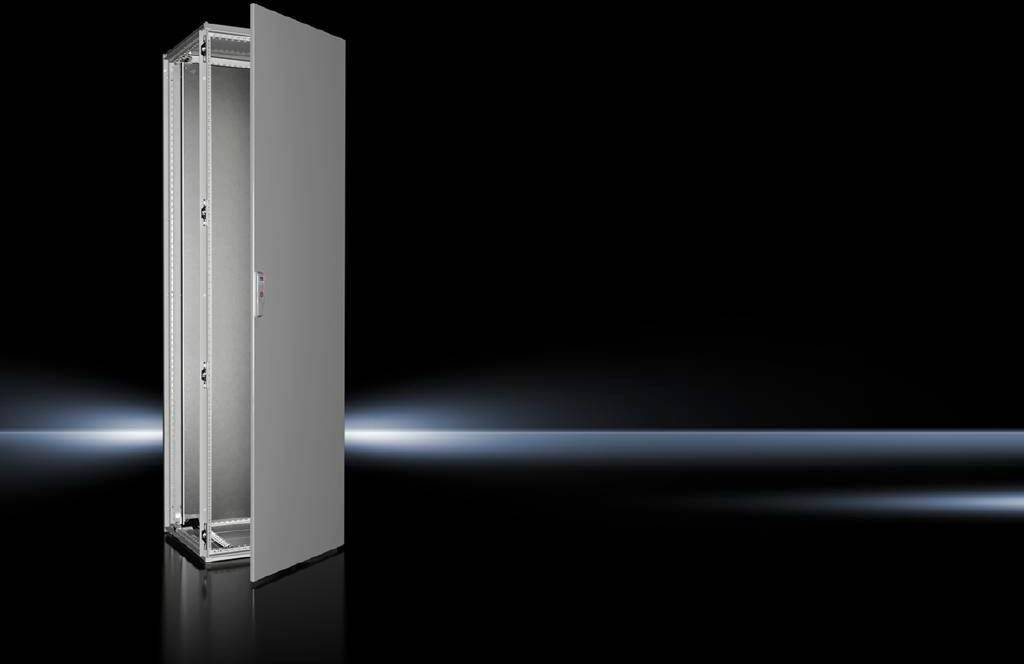

Rittal VX 8605.000 Switchboard cabinet 600 x 2000 x 500 Steel plate Grey-white (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Material
Steel plate
Width
600 mm
Height
2000 mm
Content
1 pc(s)
Datasheet (PDF)
Cabinet system VX25 basic cabinet
Technical specifications
- Cabinet structure: Steel sheet, 1.5 mm
- Roof: Steel sheet, 1.5 mm
- Door: Steel sheet, 2.0 mm
- Rear panel: Steel sheet, 1.5 mm
- Floor sheets: Steel sheet, 1.5 mm
- Mounting plate: Steel sheet, 3.0 mm
- Surface:
- Cabinet structure: Dip-primed
- Door, roof and rear wall: Dip-primed, powder-coated on the outside, structural lacquer
- Mounting plate and floor plates: Galvanized
- Product type
Switchboard cabinet
- Features
Double sided ward
- Material
Steel plate
IP55
- Factory colour
Grey-white (RAL 7035)
- Type
Control cabinet (door 1)
- Width
600 mm
- Height
2000 mm
- Weight
0
- Standards
Bureau Veritas: CSA: DNV-GL: Lloyds Register of Shipping: UL + C-UL:
- Content
1 pc(s)
- Type
VX 8605.000
- Dim
(W x H x D) 600 x 2000 x 500 mm
- Manufacturer part #
8605000
- Depth
500 mm
- Product type description
Rack
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2251131 Rittal VX 8605.000 Switchboard cabinet 600 x 2000 x 500 Steel plate Grey-white (RAL 7035) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2251131 Rittal VX 8605.000 Switchboard cabinet 600 x 2000 x 500 Steel plate Grey-white (RAL 7035) 1 pc(s)
Description
The standard in cabinet construction: Cabinet frame with one or two front doors, rear wall, mounting plate, roof panel, split floor panels. Perfectly suitable for an efficient cabinet extension.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Cabinet frame
- Door(s)
- Door stop on the right, can be changed to the left
- Top panel
- Rear panel
- Floor sheets
- Mounting plate
- 2 mounting rails 18 x 39 mm
- 3 mm double bit lock
