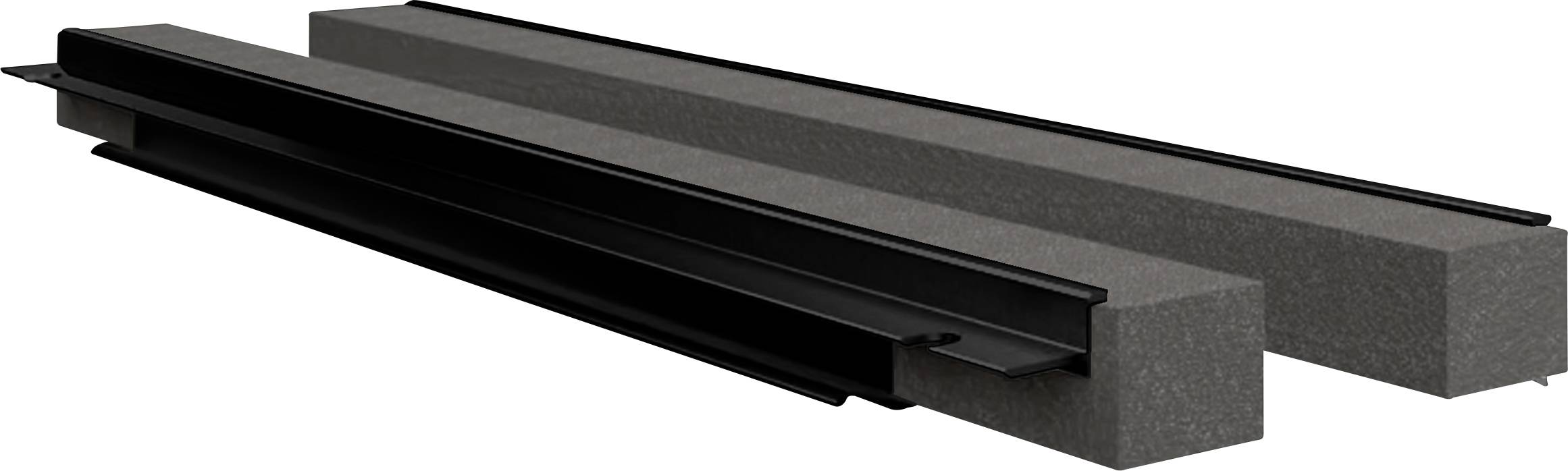

Rittal VX 8618.812 Cable router Snap-in fixing Aluminium Grey 4 pc(s)
EAN:
Part number:
Item no:
Product type
Cable router
Features
Snap-in fixing
Material
Aluminium
Type
Rear cable entry
Factory colour
Grey
Number (Package size 4 pc(s))
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Profile for cable entry, rear for VX, SE, TP
Technical specifications
- Product type
Cable router
- Features
Snap-in fixing
- Type
Rear cable entry
- Factory colour
Grey
- Material
Aluminium
- Compatible with (details)
For width 1000 mm
IP55
- Content
4 pc(s)
- Manufacturer part #
8618812
- Type
VX 8618.812
- Material properties
Aluminium alloy
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2251232 Rittal VX 8618.812 Cable router Snap-in fixing Aluminium Grey 4 pc(s)
Description
The profile is attached directly to the floor plates. Thus, when installing the mounting plate in an advanced installation position, the cables can be guided directly onto a cable support rail without any larger bending radii. In combination with the cable support rail, an optimal adjustment can be made between the cable entry and the mounting plate.
Benefits:
Easy to Set Up
Full surface area support
High sealing of the cables inserted in the cabinet
Application areas:
For attaching to floor plates
This text is machine translated.
Benefits:
Easy to Set Up
Full surface area support
High sealing of the cables inserted in the cabinet
Application areas:
For attaching to floor plates
This text is machine translated.
Scope of delivery
- Clip-on profiles, including elastic clamping profiles
Hints
Two pieces are required for each cable entry point
From cabinet width 1000 mm, the floor group is divided into two areas in width. Two cable entry points (left/right) can be inserted
