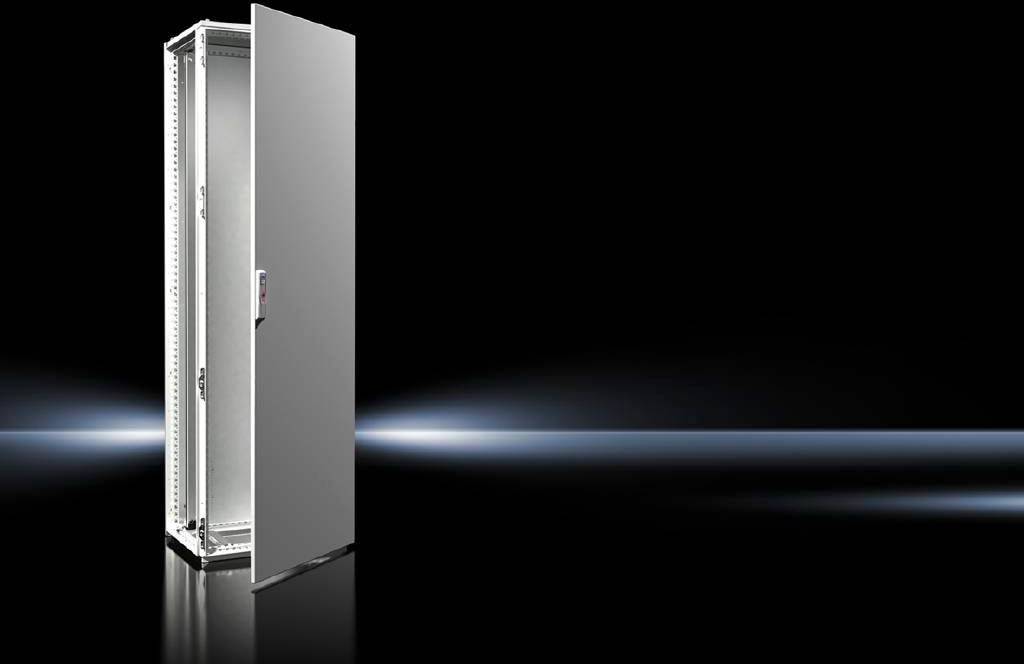

Rittal VX 8684.000 Switchboard cabinet 600 x 1800 x 400 Steel plate Grey-white (RAL 7035) 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Switchboard cabinet
Material
Steel plate
Width
600 mm
Height
1800 mm
Datasheet (PDF)
Cabinet system VX25 basic cabinet
Technical specifications
- Cabinet structure: Steel sheet, 1.5 mm
- Roof: Steel sheet, 1.5 mm
- Door: Steel sheet, 2.0 mm
- Rear panel: Steel sheet, 1.5 mm
- Floor sheets: Steel sheet, 1.5 mm
- Mounting plate: Steel sheet, 3.0 mm
- Surface:
- Cabinet structure: Dip-primed
- Door, roof and rear wall: Dip-primed, powder-coated on the outside, structural lacquer
- Mounting plate and floor plates: Galvanized
- Packaging type
Piece
- Product type
Switchboard cabinet
- Features
with lock
- Material
Steel plate
IP55
- Factory colour
Grey-white (RAL 7035)
- Type
1-door
- Width
600 mm
- Height
1800 mm
- Dimensions
600 x 1800 x 400 mm
- Weight
91.3 kg
- Standards
Bureau Veritas: CSA: DNV-GL: Lloyds Register of Shipping: UL + C-UL:
- Content
1 pc(s)
- Type
VX 8684.000
- Dim
(W x H x D) 600 x 1800 x 400 mm
- Manufacturer part #
8684000
- Depth
400 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2251294 Rittal VX 8684.000 Switchboard cabinet 600 x 1800 x 400 Steel plate Grey-white (RAL 7035) 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2251294 Rittal VX 8684.000 Switchboard cabinet 600 x 1800 x 400 Steel plate Grey-white (RAL 7035) 1 pc(s) Piece
Description
The standard in cabinet construction: Cabinet frame with one or two front doors, rear wall, mounting plate, roof panel, split floor panels. Perfectly suitable for an efficient cabinet extension.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Cabinet frame
- Door(s)
- Door stop on the right, can be changed to the left
- Top panel
- Rear panel
- Floor sheets
- Mounting plate
- 2 mounting rails 18 x 39 mm
- 3 mm double bit lock
