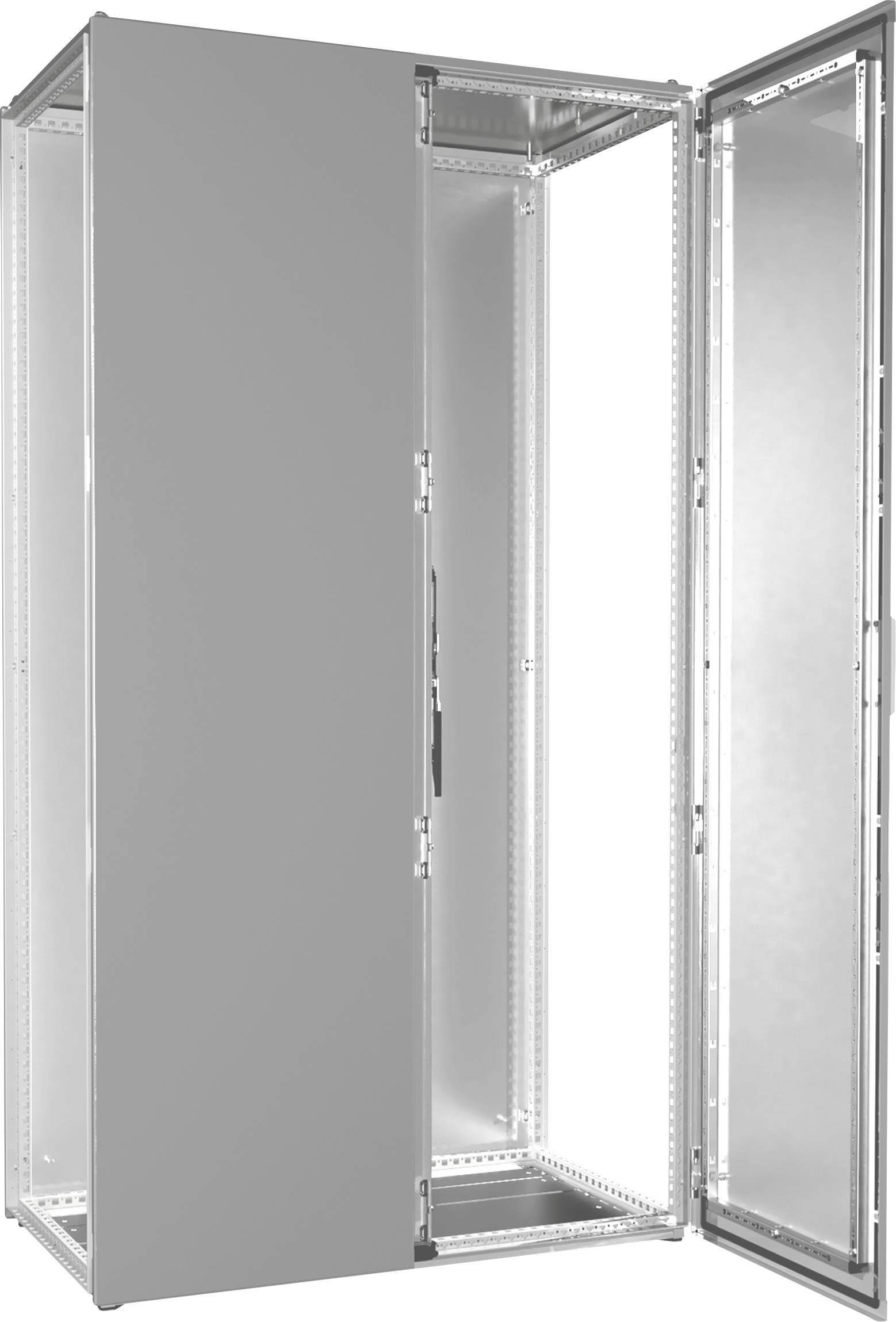

Rittal VX 9666.926 Switchboard cabinet 1100 x 2000 x 600 Steel plate Grey-white (RAL 7035) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Material
Steel plate
Width
1100 mm
Height
2000 mm
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 864.71 / piece)
€ 864.71
plus VAT.
Modular cabinet system VX25 Installation distributor
Technical specifications
- Sheet steel
- Surface:
- Cabinet structure: Dip-primed
- Door(s), roof, rear wall: Dip-primed, powder coated on the outside, structural lacquer
- Floor plates: Galvanized
- Product type
Switchboard cabinet
- Material
Steel plate
IP54
- Factory colour
Grey-white (RAL 7035)
- Type
2 door
- Width
1100 mm
- Height
2000 mm
- Weight
156 kg
- Standards
Bureau Veritas: DNV-GL:
- Content
1 pc(s)
- Type
VX 9666.926
- Dim
(W x H x D) 1100 x 2000 x 600 mm
- Manufacturer part #
9666926
- Depth
600 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2251321 Rittal VX 9666.926 Switchboard cabinet 1100 x 2000 x 600 Steel plate Grey-white (RAL 7035) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2251321 Rittal VX 9666.926 Switchboard cabinet 1100 x 2000 x 600 Steel plate Grey-white (RAL 7035) 1 pc(s)
Description
Stacking systems VX, as installation stand distributor, prepared for ISV expansion modules.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Cabinet frame
- Door(s)
- Door stop on the right, can be changed to the left
- Floor sheets
- Rear panel
- Top panel
- 3 mm double bit lock
Hints
For 600 mm wide installation distributor use VX basic cabinets
For a base height of 200 mm, 2 VE base corner pieces, 100 mm and base covers, 100 mm are required
