RJ45 plug-in connector VS-PPC-C1-MNNA-8Q5-EMC 1403367 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Sensor/actuator data cable
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
RJ45
Connection side B
Customisable
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Single
- Type
VS-PPC-C1-MNNA-8Q5-EMC
- Product type
Sensor/actuator data cable
- Connector type
Plug, straight
- Connector standard
Sensor connector
- Connection side A
RJ45
- Connection side B
Customisable
- No. of pins
8
- Nominal voltage
72 V DC
- Nominal current
1.75 A
- Nominal current - rounded value
1.75 A
- Connection
Cut & Clip
- Features
Push-Pull ADVANCE
- Seal type
Push-Pull
- Manufacturer part #
1403367
- Content
1 pc(s)
- Cable Ø (max.)
8.0 mm
- Cable Ø up to
5.0 mm
- Cable Ø range
5.0 - 8.0 mm
- Number of pins
8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 774025 RJ45 plug-in connector VS-PPC-C1-MNNA-8Q5-EMC 1403367 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 774025 RJ45 plug-in connector VS-PPC-C1-MNNA-8Q5-EMC 1403367 Phoenix Contact
Description

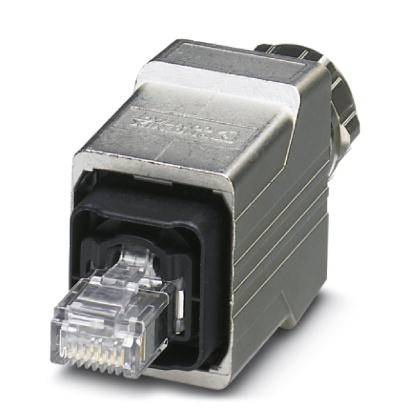

Push/pull plug-in connector (version 14), metal EMC, with 8-pos. RJ45 QUICKON plug-in connector insert, with QUICKON fast connection technology, for 26 ... 24 AWG 1-wire and 7-wire conductors, for 5.0 mm ... 8.0 mm cable diameter
Hints
Special order, no right of withdrawal.
