Robotis MBS-ANT-80
EAN:
Part number:
Item no:
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
14-day return policy included
Technical specifications
- SERVO MOTOR: DYNAMIXEL XC330-M181-T
- Weight: 23 g
- Dimensions 20 x 34 x 26 mm
- Gear-reduction ratio 18.62:1
- Torque: 5V 0.6 N.m
- Rpm 5 V 129
- Internal UC: ARM CORTEX-M0+ (64 [MHz], 32-bit)
- Encoder: Contactless magnet encoder
- Setting accuracy 0.088° x 4069 steps
- Operating voltage 3.7 - 6 V recommended 5 V.
- Protocol: Half duplex TTL
- ID: 0 - 253
- Baud rate:9600 bps - 4 Mbps
- Length
20 mm
- Width
34 mm
- Manufacturer part #
MBS-ANT-80
Description

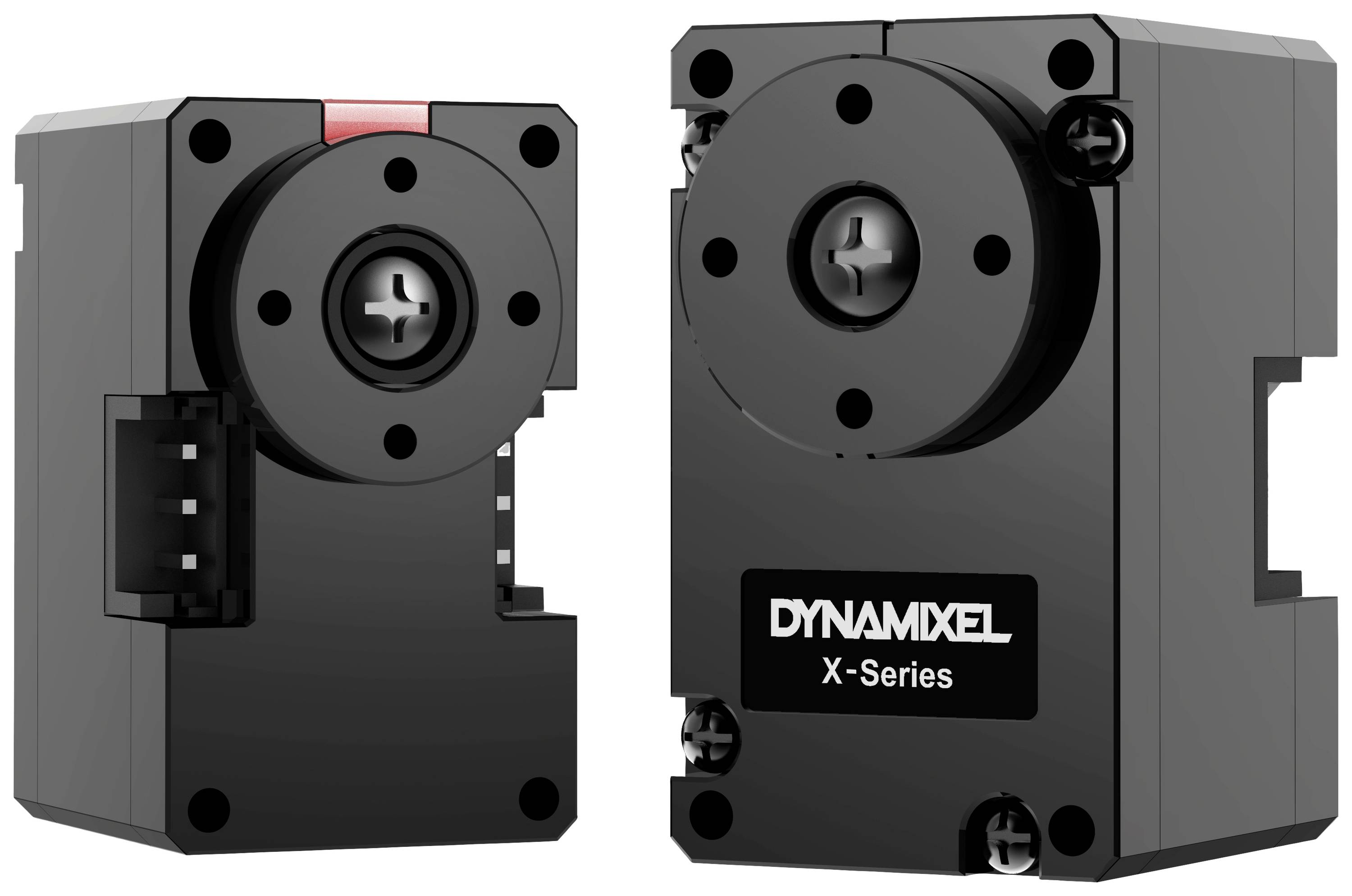

The Dynamix X-Series, is currently the latest network servo-motors series, by ROBOTIS. The XC330-M181-T servo motor features a non-contact magnetic encoder, allowing 360° rotation at speeds up to 106 rpm. A torque of up to 1.6 Nm is possible with a voltage of 12 V. These outstanding performance features combined with extremely low weight of only 65 g result in a very powerful servo motor for the universal application area. Beyond that the cable routing was fundamentally revised with the Dynamic X-series, whereby a still higher reliability was achieved. The cables are no longer connected to the rear of the servo motor as is usual in the AX/MX series, but are guided past the pivot and pivot points, thus reducing the cable strain and minimizing exposed cables. The Dynamic X series can be screwed together in different ways. When using mounting profiles, however, please take note that the spacers included in the delivery are used.
This text is machine translated.
This text is machine translated.
Features
- Dynamic X-Series actuator
- Half duplex TTL interface
- 0.6 N.m
- 129 R/min
- The DYNAMIXEL XC330-M181-T has the same structure as the XL330, but with 360° control mode and is suitable for robots that require a higher speed.
Scope of delivery
- 1X DYNAMIXEL XC330-M181-T
- 1x servo horn (HN11-N101)
- 1x data and power cable X3P
- 5x distancing rings
- Various screws and nuts
