Robotis Servo motor MBS-ANT-40
EAN:
Part number:
Item no:
Number (Package size 6 pc(s))
Total (€ 3,654.62 / piece)
€ 3,654.62
plus VAT.
14-day return policy included
Technical specifications
- Weight 153 g (per servo)
- Dimensions 40.2 x 65.1 x 46 mm
- Resolution 0.088°
- Reduction ratio 225:1
- Holding torque: Up to 10 Nm
- Adjustable 0 - 360° / adjustable continuous rotation
- Operating temperature: -5° - 80°C
- Voltage 10 - 14.8 V (recommended voltage 12 V)
- Data transfer TTL / 7343bps ~ 4.5 Mbps
- Motor by Maxon
- ID assignment up to 254
- Product type
Servo motor
- Manufacturer part #
MBS-ANT-40
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3090040 Robotis Servo motor MBS-ANT-40
Description
ROBOTIS is a well-known manufacturer of robotics development platforms and components. This company is also active under the name DYNAMIXEL, servomotors with industrial quality and interfaces HER. The MX-106T servo motors have an integrated reduction ratio of 225:1, a controller with feedback and driver Together with the TTL interface, the servos can be controlled very precisely and also give the control device a feedback signal at all times about the current position. The maximum resolution (position accuracy) is 0.088°. Because each servo can be assigned a unique ID, the servos can be connected in series (one after the other as shown below) and the cabling is reduced to a minimum.
This text is machine translated.
This text is machine translated.
Features
- Robotic Servo motors
- TTL interface with high baud rate of up to 4.5 Mbps
- 4096 positions / 0.088°
- Aluminium Front Case

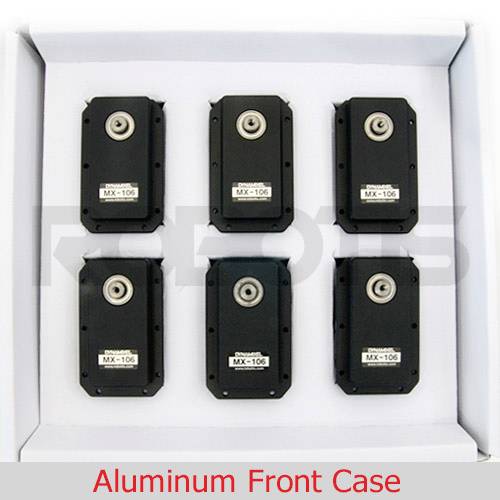

Scope of delivery
- 6x DYNAMIXEL MX-106T servo motors
