Robotis Servo motor MBS-ANT-61
EAN:
Part number:
Item no:
Number
Total (€ 735.29 / piece)
€ 735.29
plus VAT.
14-day return policy included
Technical specifications
- SERVO MOTOR XH540-V270-R
- Weight 165 g
- Dimensions 33.5 x 58.5 x 44 mm
- Gear-reduction ratio 272.5:1
- Torque 24V 9.2N.m
- Rev/min 24V 34
- Internal UC: STM32F103C8 72MHz Cortex M3
- Encoder: Contactless magnet encoder
- Setting accuracy 0.088° x 4096 steps
- Operating voltage:24 V
- RS485
- ID: 0 - 252
- Baud rate:9600 bps - 4.5 Mbps
- Product type
Servo motor
- Manufacturer part #
MBS-ANT-61
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3089987 Robotis Servo motor MBS-ANT-61
Description

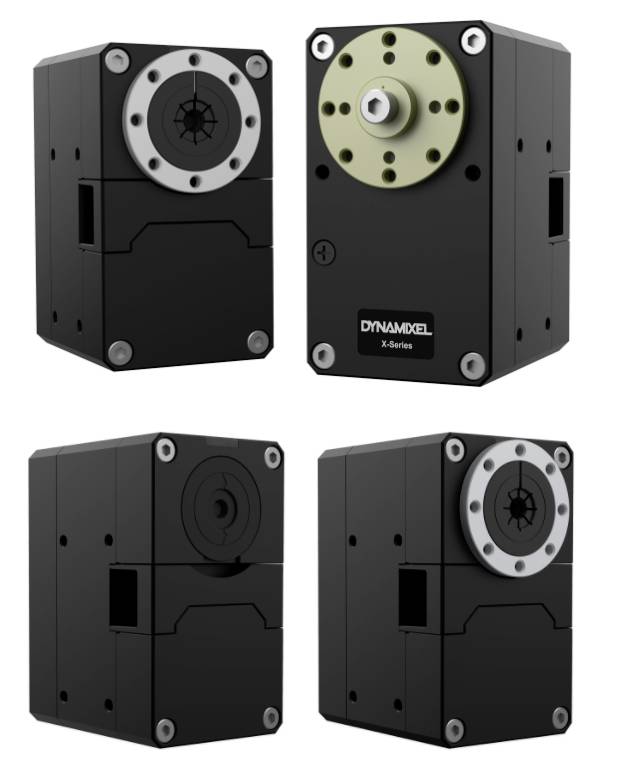

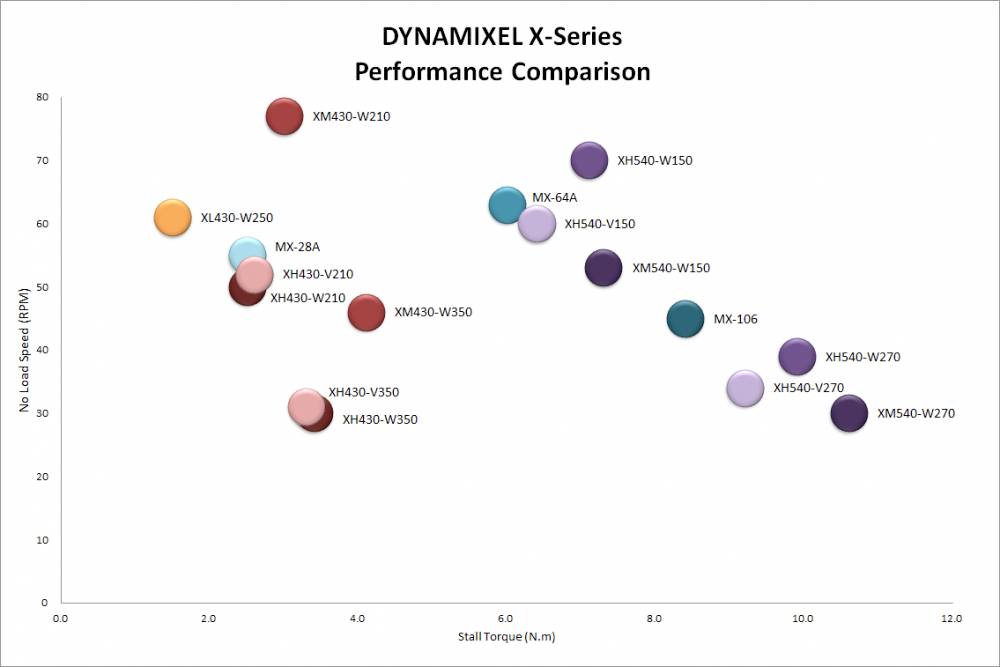

The DYNAMIXEL X540 series has a power similar to the MX106, but that volume has been reduced by 28.4%. The Dynamix X-Series, is currently the latest network servo-motors series, by ROBOTIS. The XH540-V270-R servo motor has contact-less magnetic encoder which enables 360° rotations with a speed of up to 34 RPM. A torque of up to 9.2 Nm is possible with a voltage of 24 V. These outstanding performance characteristics combined with extremely low weight of only 165 g result in a very powerful servo motor for the universal application area.
Cable duct
Beyond that the cable routing was fundamentally revised with the Dynamic X-series, whereby a still higher reliability was achieved. The cables are no longer connected to the rear of the servo motor as is usual in the AX/MX series, but are guided past the pivot and pivot points, thus reducing the cable strain and minimizing exposed cables.
Screwed
The Dynamic X series can be screwed together in different ways. When using mounting profiles, however, please take note that the spacers included in the delivery are used.
This text is machine translated.
Cable duct
Beyond that the cable routing was fundamentally revised with the Dynamic X-series, whereby a still higher reliability was achieved. The cables are no longer connected to the rear of the servo motor as is usual in the AX/MX series, but are guided past the pivot and pivot points, thus reducing the cable strain and minimizing exposed cables.
Screwed
The Dynamic X series can be screwed together in different ways. When using mounting profiles, however, please take note that the spacers included in the delivery are used.
This text is machine translated.
Features
- DYNAMIXEL XH540-V270-R SERVO MOTOR
- Dynamic X-Series actuator
- RS485 Interface
- 9.2 N.m
- 34 R/min
Scope of delivery
- 1x dynamic XH540-V270-R servo-motor
- 1x servo horn (HN13-N101)
- 1x data and power cable X4P
- 5x distancing rings
- Various screws and nuts
