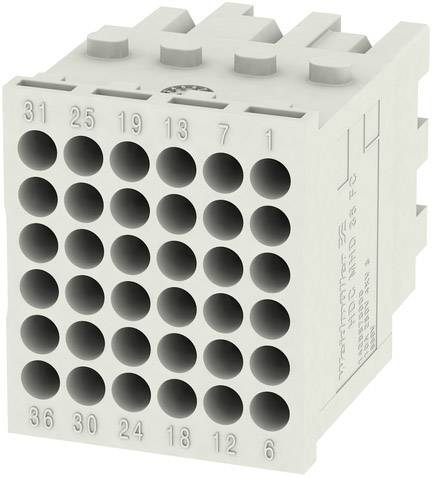

Rock Star ® MODU plug HDC MHD 36 FC Weidmüller Content: 1 pc(s) Module
EAN:
Part number:
Item no:
Product type
Module
Number of pins
36
Type
HDC MHD 36 FC
Manufacturer part #
1428870000
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Stripping length Rated connection: 8 mm
- Rated voltage (DIN EN 61984): 250 V
- Rated surge voltage (DIN EN 61984): 4 kV
- Rated current (DIN EN 61984): 10 A
- Required slots: 2
- Width: 29.2 mm
- Height: 40.9 mm
- Insulation resistance: 10 12 Ω
- Conductor cross-section AWG, max.: AWG 14
- conductor cross-section, max.: 2.5 mm²
- Plug-in cycles: ≥ 500
- Depth: 34 mm
- Type
HDC MHD 36 FC
- Product type
Module
- Manufacturer part #
1428870000
- Number of pins
36
- Connection
Crimp
- Total no. of pins
36
- Content
1 pc(s)
- Material
Polycarbonate (PC)
- Suitable for
ModuPlug
- Max. temperature
+125 °C
29.2
34 m
V0
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1670175 Rock Star ® MODU plug HDC MHD 36 FC Weidmüller Content: 1 pc(s) Module
User & Safety Instructions
User & Safety Instructions 1670175 Rock Star ® MODU plug HDC MHD 36 FC Weidmüller Content: 1 pc(s) Module
