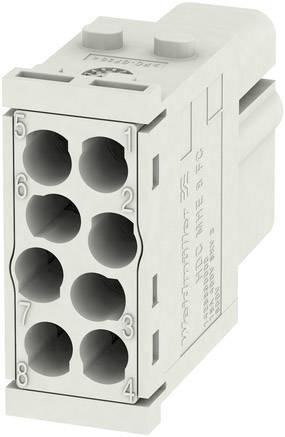

Rock Star ® MODU plug HDC MHE 8 FC Weidmüller Content: 1 pc(s) Module
EAN:
Part number:
Item no:
Product type
Module
Number of pins
8
Type
HDC MHE 8 FC
Manufacturer part #
1428890000
Connection
Crimp
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Only 5 Piece(s) available
Technical specifications
- Stripping length Rated connection: 7.5 mm
- Rated voltage (DIN EN 61984): 400 V
- Rated surge voltage (DIN EN 61984): 6 kV
- Rated current (DIN EN 61984): 16 A
- Required slots: 1
- Width: 14.5 mm
- Height: 41.6 mm
- Insulation resistance: 10 12 Ω
- Conductor cross-section AWG, max.: AWG 12
- conductor cross-section, max.: 4 mm²
- Plug-in cycles: ≥ 500
- Depth: 34 mm
- Type
HDC MHE 8 FC
- Product type
Module
- Manufacturer part #
1428890000
- Number of pins
8
- Connection
Crimp
- Total no. of pins
8
- Content
1 pc(s)
- Material
Polycarbonate (PC)
- Suitable for
ModuPlug
- Max. temperature
+125 °C
14.5
34 m
V0
TRUE
- UKCA
yes
