RockStar® HDC kits-Heavy Duty Connectors, Kit, HE, Size: 6, Poles: 1, PUSH IN spring connection, 500 V, 16 A, diecast al
EAN:
Part number:
Item no:
Product type
Connector set
Thread size
PG21
Connection
Push-in connector
Features
+ metal enclosure
powder-painted
+ PG screw
Series
RockStar® HDC HE
Datasheet (PDF)
Highlights & Details
RockStar® HDC kits-Heavy Duty Connectors, Kit, HE, Size: 6, Poles: 1, PUSH IN spring connection, 500 V, 16 A, diecast aluminium, PG
- HDC KIT U P 16.120
Technical specifications
- Series: HE
- Surface: Powder coating
- Size: 6
- Connection type PE: Screw connection
- Product type
Connector set
- Features
+ metal enclosure
powder-painted
+ PG screw
- Series
RockStar® HDC HE
- Thread size
PG21
- Connection
Push-in connector
- Rated voltage
500 V
- Test current
16 A
- Case material
Aluminium, die cast
- Total no. of pins
16 + PE
- Content
1 pc(s)
- Core cross section (max.)
4 mm²
- Core cross section (min.)
0.5 mm²
- Number of pins
16
- Width
150 mm
- Height
165 mm
- Length
70 mm
IP65
- Max. temperature
+100 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 195907 RockStar® HDC kits-Heavy Duty Connectors, Kit, HE, Size: 6, Poles: 1, PUSH IN spring connection, 500 V, 16 A, diecast al
User & Safety Instructions
User & Safety Instructions 195907 RockStar® HDC kits-Heavy Duty Connectors, Kit, HE, Size: 6, Poles: 1, PUSH IN spring connection, 500 V, 16 A, diecast al
Description
HDC kits are standardized kits for assembling complete plug-in connectors.
The HDC kits normally consist of a male insert, a female insert,a plug housing, a bulkhead housing and a cable gland.
Weidmüller offers a range of standard connector combinations with metric or PG cable entry threads.
The PUSH IN connection is a direct-insert method of connection. The preprocessed wire can be inserted directly into the wire connection without the need for any tools.
PUSH IN technology
The HDC kits normally consist of a male insert, a female insert,a plug housing, a bulkhead housing and a cable gland.
Weidmüller offers a range of standard connector combinations with metric or PG cable entry threads.
The PUSH IN connection is a direct-insert method of connection. The preprocessed wire can be inserted directly into the wire connection without the need for any tools.
PUSH IN technology

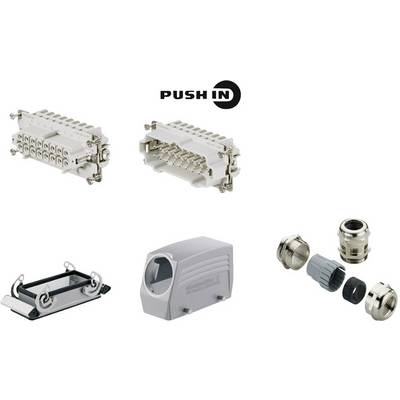

Scope of delivery
- Socket insert
- Connector insert
- Attachment housing
- Connector Cases
- Cable gland
