Rohde A4-35.P400.N01 Handle Silver (L x W x H) 420 x 35 x 65 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Handle
Material
Aluminium
Dim
(L x W x H) 420 x 35 x 65 mm
Width
35 mm
Height
65 mm
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 50.41 / piece)
€ 58.82
-14 %
€
Highlights & Details
Rohde oval profile grip d.series A4, insertable/thigh PA6, aluminum colors, bridge natural anodized
- Content: 1 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer color: Silver side and bridge
- Mounting method: Internal thread
- Series name: A4-35
- Handle type (series): Grip series A4
- Hole diameter: M8
- Dim
(L x W x H) 420 x 35 x 65 mm
- Product type
Handle
- Material
Aluminium
- Width
35 mm
- Height
65 mm
- Length
420 mm
- Hole spacing
400 mm
- Factory colour
Silver
- Content
1 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
A4-35.P400.N01
Documents & Downloads

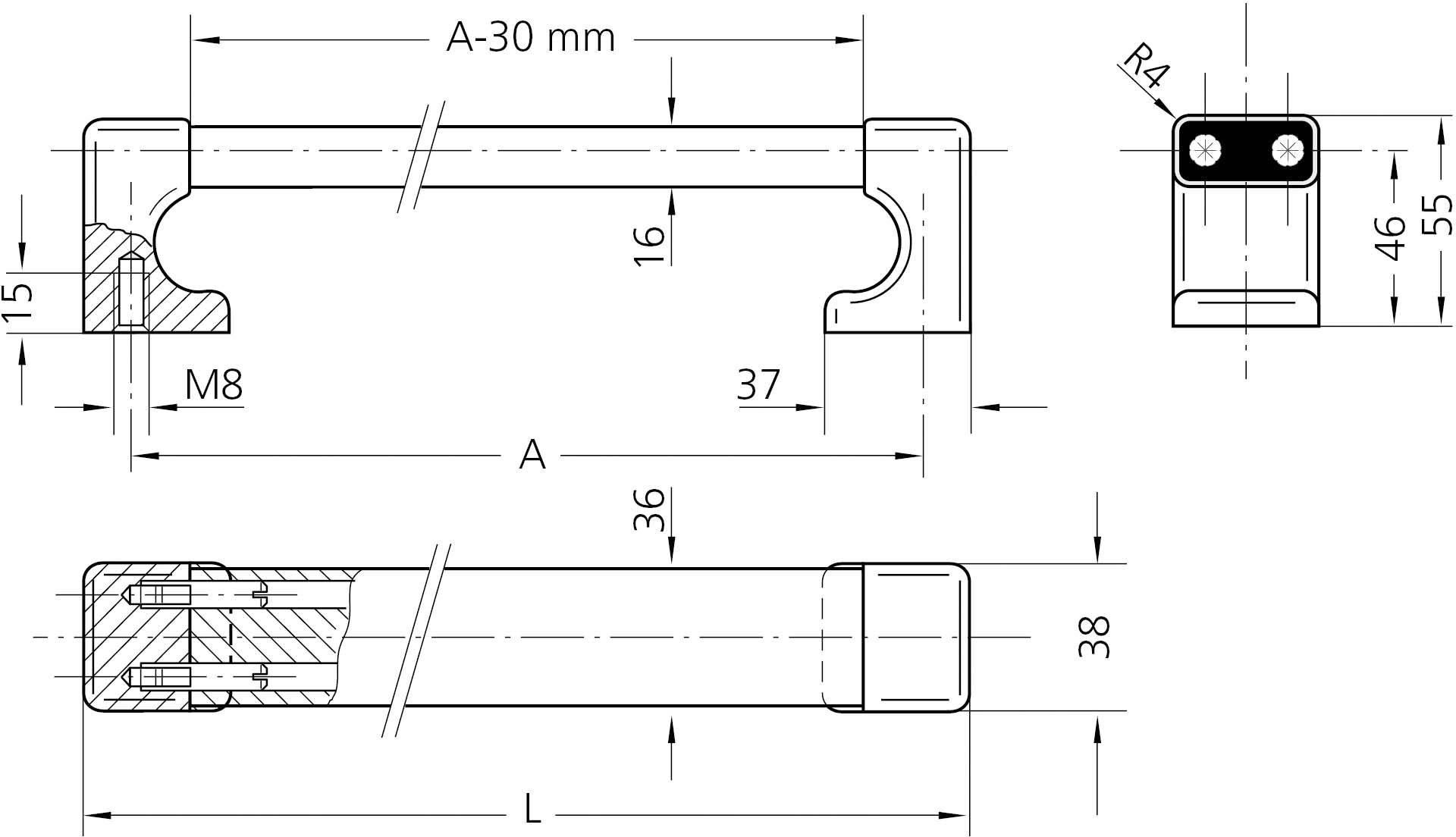

Datasheet
Datasheet 2343430 Rohde A4-35.P400.N01 Handle Silver (L x W x H) 420 x 35 x 65 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343430 Rohde A4-35.P400.N01 Handle Silver (L x W x H) 420 x 35 x 65 mm 1 pc(s)
Description
Collapsible oval profile -
handles.
Material and surface:
Handle and oval joint profile
made of extruded
Aluminum AlMgSi 0.5.
Handle legs matt-gloss
Anodized, connection profiles
matt and anodized.
Handle design in different
Color combinations.
This text is machine translated.
handles.
Material and surface:
Handle and oval joint profile
made of extruded
Aluminum AlMgSi 0.5.
Handle legs matt-gloss
Anodized, connection profiles
matt and anodized.
Handle design in different
Color combinations.
This text is machine translated.
