Rohde EE-02.R120.39 Folding handle Stainless steel (L x W x H) 120 x 120 x 20 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Folding handle
Material
Steel
Dim

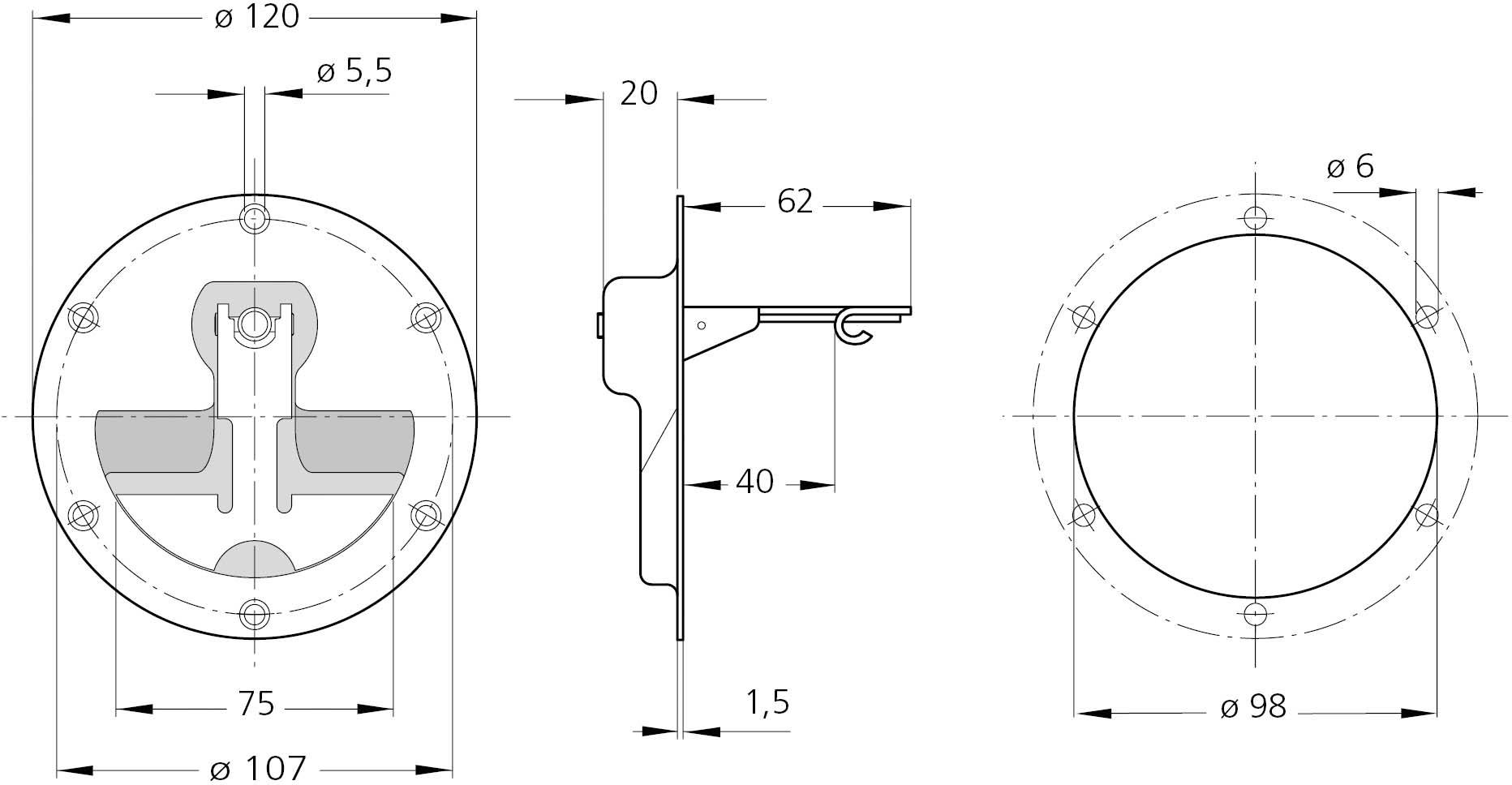

(L x W x H) 120 x 120 x 20 mm
Width
120 mm
Height
20 mm
Datasheet (PDF)
Highlights & Details

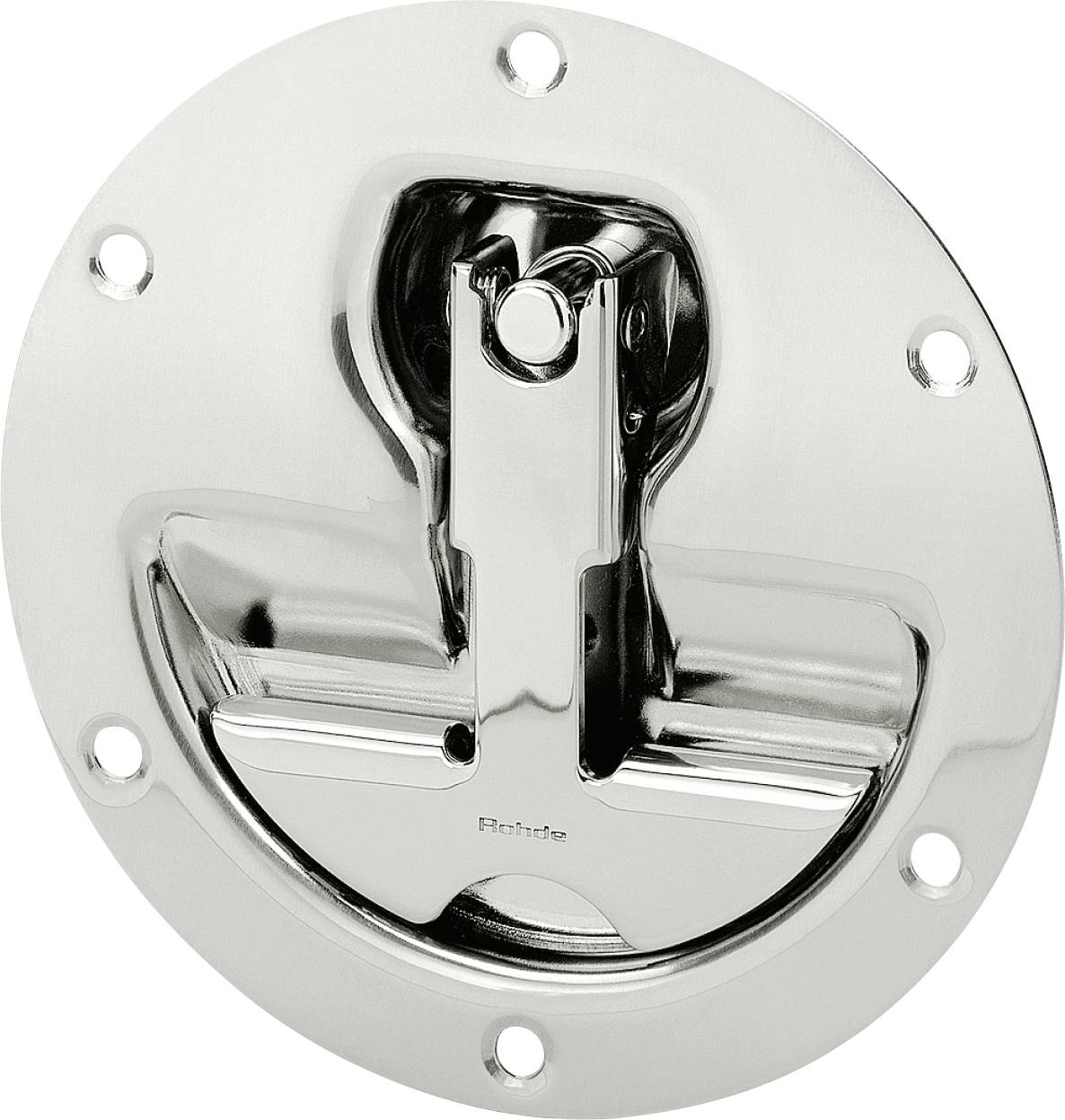

Rohde stainless steel folding handle made of 1.4301, , with return spring
- Content: 1 pcs.
Technical specifications
- Surface treatment: highly electropolished
- Material (material): 1.4301 (304)
- Manufacturer's color: High-gloss polished stainless steel
- Mounting method: c:Round bore
- Series name: EE-02
- Handle type (series): Stainless steel mounting handles EE
- Hole diameter: M6
- Dim
(L x W x H) 120 x 120 x 20 mm
- Product type
Folding handle
- Material
Steel
- Width
120 mm
- Height
20 mm
- Length
120 mm
- Factory colour
Stainless steel
- Content
1 pc(s)
- Hole Ø
6 mm
- Max. load capacity
200 N
- Type
EE-02.R120.39
Documents & Downloads
Datasheet
Datasheet 2343540 Rohde EE-02.R120.39 Folding handle Stainless steel (L x W x H) 120 x 120 x 20 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343540 Rohde EE-02.R120.39 Folding handle Stainless steel (L x W x H) 120 x 120 x 20 mm 1 pc(s)
Description
Stainless steel folding handles with less
Installation depth, for floor and
Mounting plates, devices and
Folding doors.
Material and surface:
High-gloss stainless steel electropolished, material no. 1.4301;
Design EE-03 additionally in
Brushed design and
Made of material no. 1.4404
available.
Design features:
With handle return spring of
The working position to the rest position.
Design EE-04 with rotation and
Lockable pre-driver
For folding doors.
This text is machine translated.
Installation depth, for floor and
Mounting plates, devices and
Folding doors.
Material and surface:
High-gloss stainless steel electropolished, material no. 1.4301;
Design EE-03 additionally in
Brushed design and
Made of material no. 1.4404
available.
Design features:
With handle return spring of
The working position to the rest position.
Design EE-04 with rotation and
Lockable pre-driver
For folding doors.
This text is machine translated.
