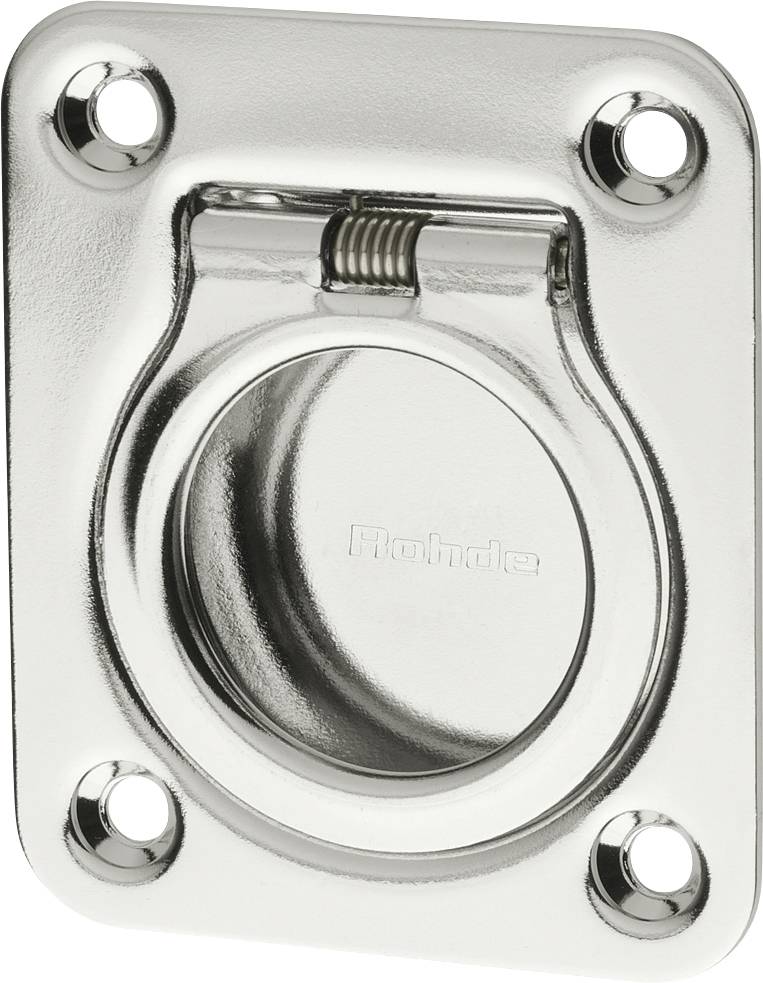

Rohde EE-05.060.39 Folding handle Stainless steel (L x W x H) 50 x 60 x 10 mm 3 pc(s)
EAN:
Part number:
Item no:
Product type
Folding handle
Material
Steel
Dim
(L x W x H) 50 x 60 x 10 mm
Width
60 mm
Height
10 mm
Datasheet (PDF)
Highlights & Details
Rohde stainless steel folding handle made of 1.4301, with return spring, high-gloss electropolished
- Content: 3 pieces
Technical specifications
- Surface treatment: highly electropolished
- Material (material): 1.4301 (304)
- Manufacturer's color: High-gloss polished stainless steel
- Mounting method: c:Round bore
- Series name: EE-05
- Handle type (series): Stainless steel mounting handles EE
- Hole diameter: M4
- Dim
(L x W x H) 50 x 60 x 10 mm
- Product type
Folding handle
- Material
Steel
- Width
60 mm
- Height
10 mm
- Length
50 mm
- Hole spacing
35 mm
- Factory colour
Stainless steel
- Content
3 pc(s)
- Hole Ø
4 mm
- Max. load capacity
200 N
- Type
EE-05.060.39
Documents & Downloads
Datasheet
Datasheet 2343545 Rohde EE-05.060.39 Folding handle Stainless steel (L x W x H) 50 x 60 x 10 mm 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2343545 Rohde EE-05.060.39 Folding handle Stainless steel (L x W x H) 50 x 60 x 10 mm 3 pc(s)
Description
Stainless steel folding handles with less
Installation depth, for floor and
Mounting plates, devices and
Folding doors.
Material and surface:
High-gloss stainless steel electropolished, material no. 1.4301;
Design EE-03 additionally in
Brushed design and
Made of material no. 1.4404
available.
Design features:
With handle return spring of
The working position to the rest position.
Design EE-04 with rotation and
Lockable pre-driver
For folding doors.
This text is machine translated.
Installation depth, for floor and
Mounting plates, devices and
Folding doors.
Material and surface:
High-gloss stainless steel electropolished, material no. 1.4301;
Design EE-03 additionally in
Brushed design and
Made of material no. 1.4404
available.
Design features:
With handle return spring of
The working position to the rest position.
Design EE-04 with rotation and
Lockable pre-driver
For folding doors.
