Rohde EK-10.100.31 Folding handle Stainless steel (L x W x H) 109 x 10 x 44 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Folding handle
Material
Steel
Dim

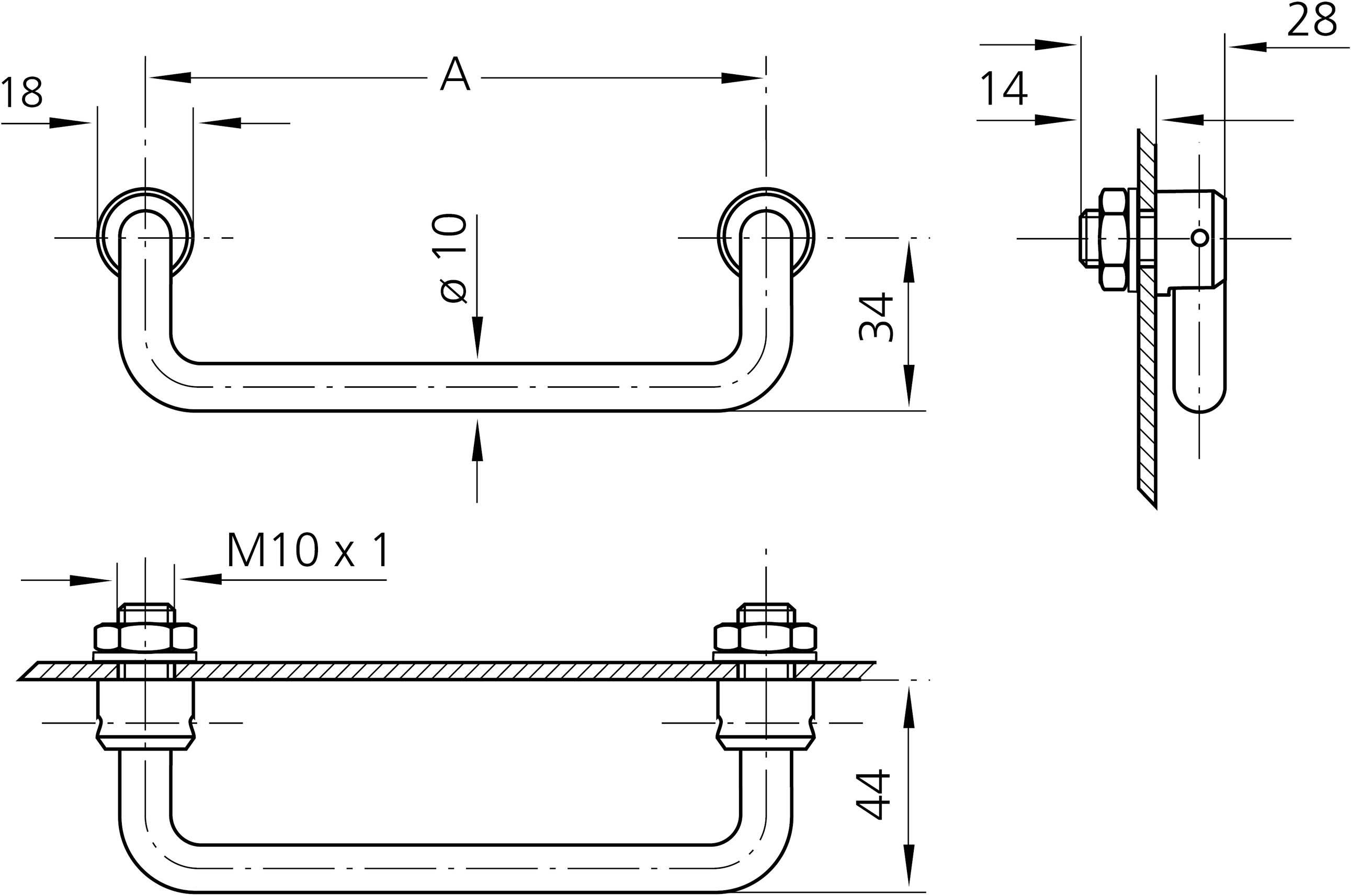

(L x W x H) 109 x 10 x 44 mm
Width
10 mm
Height
44 mm
Datasheet (PDF)
Highlights & Details

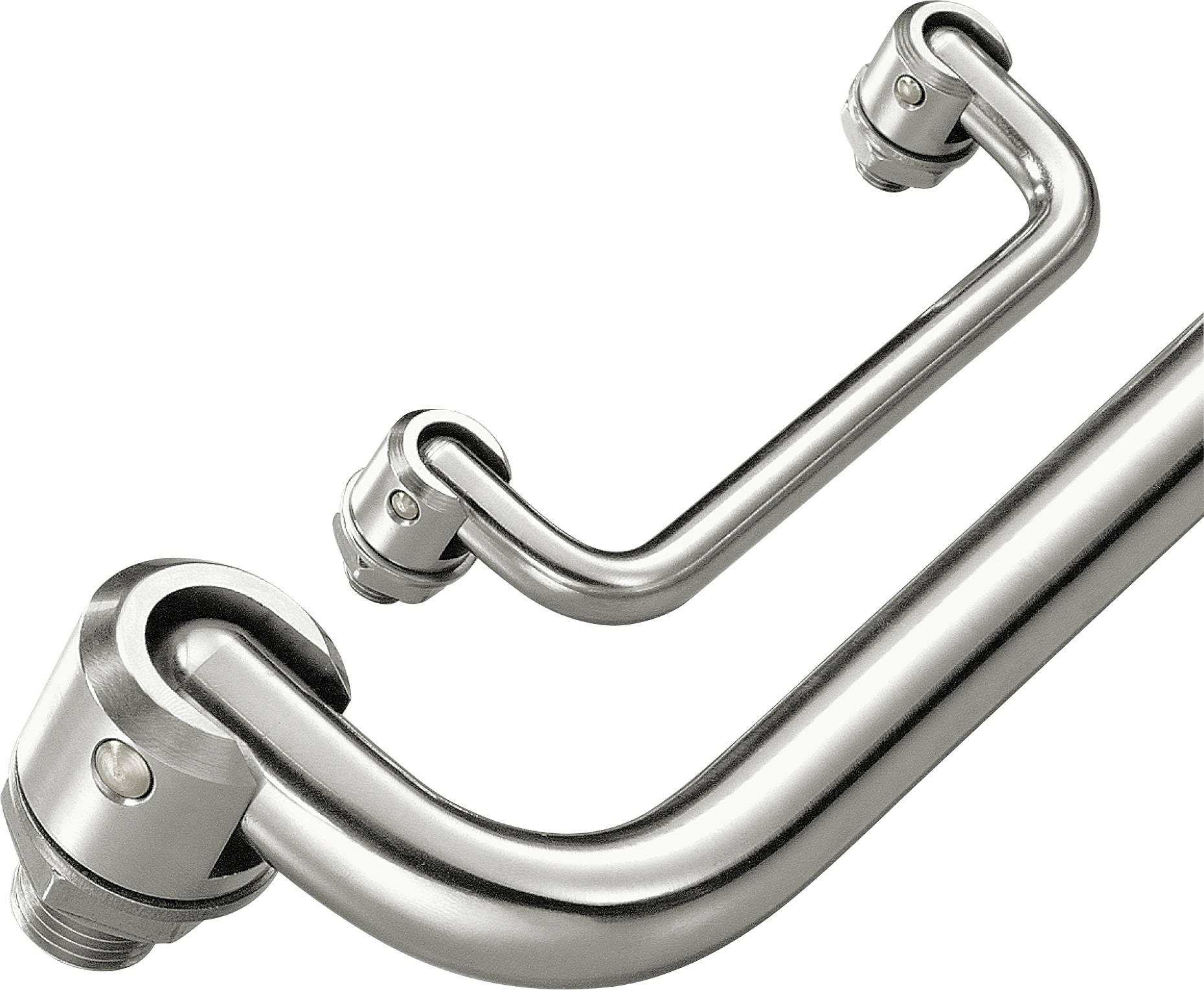

Rohde folding handle made of round stainless steel
- Content: 1 pcs.
Technical specifications
- Surface treatment: Brushed
- Material (material): 1,4305 (303)
- Manufacturer color: Stainless steel semi-gloss
- Mounting method: a:Male thread
- Series name: EK-10
- Handle type (series): Stainless steel folding handles EK
- Hole diameter: M10x1
- Dim
(L x W x H) 109 x 10 x 44 mm
- Product type
Folding handle
- Material
Steel
- Width
10 mm
- Height
44 mm
- Length
109 mm
- Hole spacing
100 mm
- Factory colour
Stainless steel
- Content
1 pc(s)
- Hole Ø
10 mm
- Max. load capacity
1000 N
- Type
EK-10.100.31
Documents & Downloads
Datasheet
Datasheet 2343558 Rohde EK-10.100.31 Folding handle Stainless steel (L x W x H) 109 x 10 x 44 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343558 Rohde EK-10.100.31 Folding handle Stainless steel (L x W x H) 109 x 10 x 44 mm 1 pc(s)
Description
Material and surface:
Individual parts made of round stainless steel,
Material no. 1.4305; semi-gloss
Surface. Design features:
Spring lock in both end positions.
This text is machine translated.
Individual parts made of round stainless steel,
Material no. 1.4305; semi-gloss
Surface. Design features:
Spring lock in both end positions.
This text is machine translated.
Scope of delivery
- Delivery scope
- Delivery including under -
- Washers and nuts
- Stainless steel.
