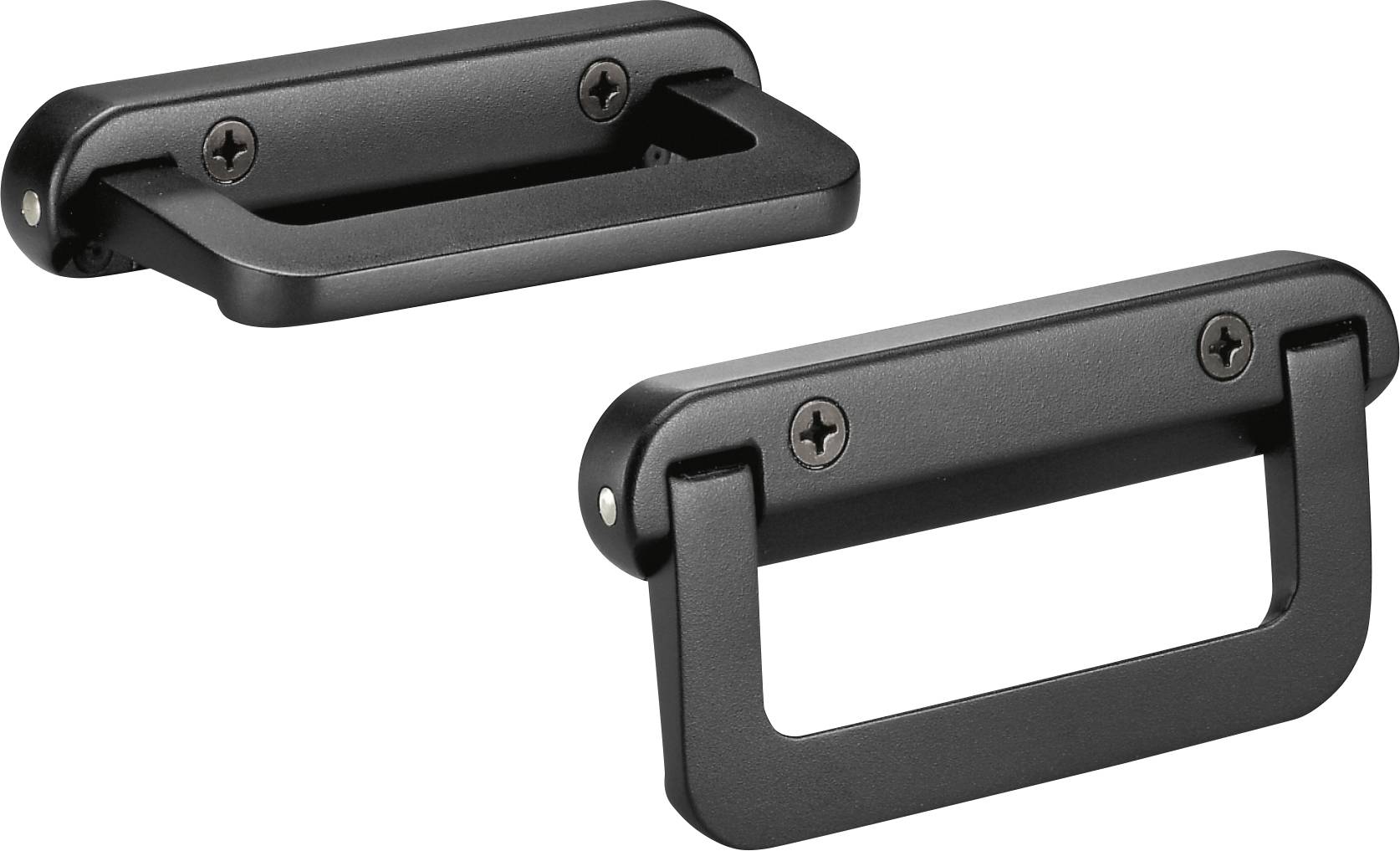

Rohde KK-18.120.84 Folding handle Black (L x W x H) 154 x 77 x 18 mm 2 pc(s)
EAN:
Part number:
Item no:
Product type
Folding handle
Material
Polyamide
Dim
(L x W x H) 154 x 77 x 18 mm
Width
77 mm
Height
18 mm
Datasheet (PDF)
Highlights & Details
Rohde plastic folding handle, , incl. BEF. Materials
- Content 2 pcs.
Technical specifications
- Material (material): PA6
- Manufacturer color: Black
- Mounting method: c:Round bore
- Series name: KK-18
- Handle type (series): Folding handle KK
- Hole diameter: M6

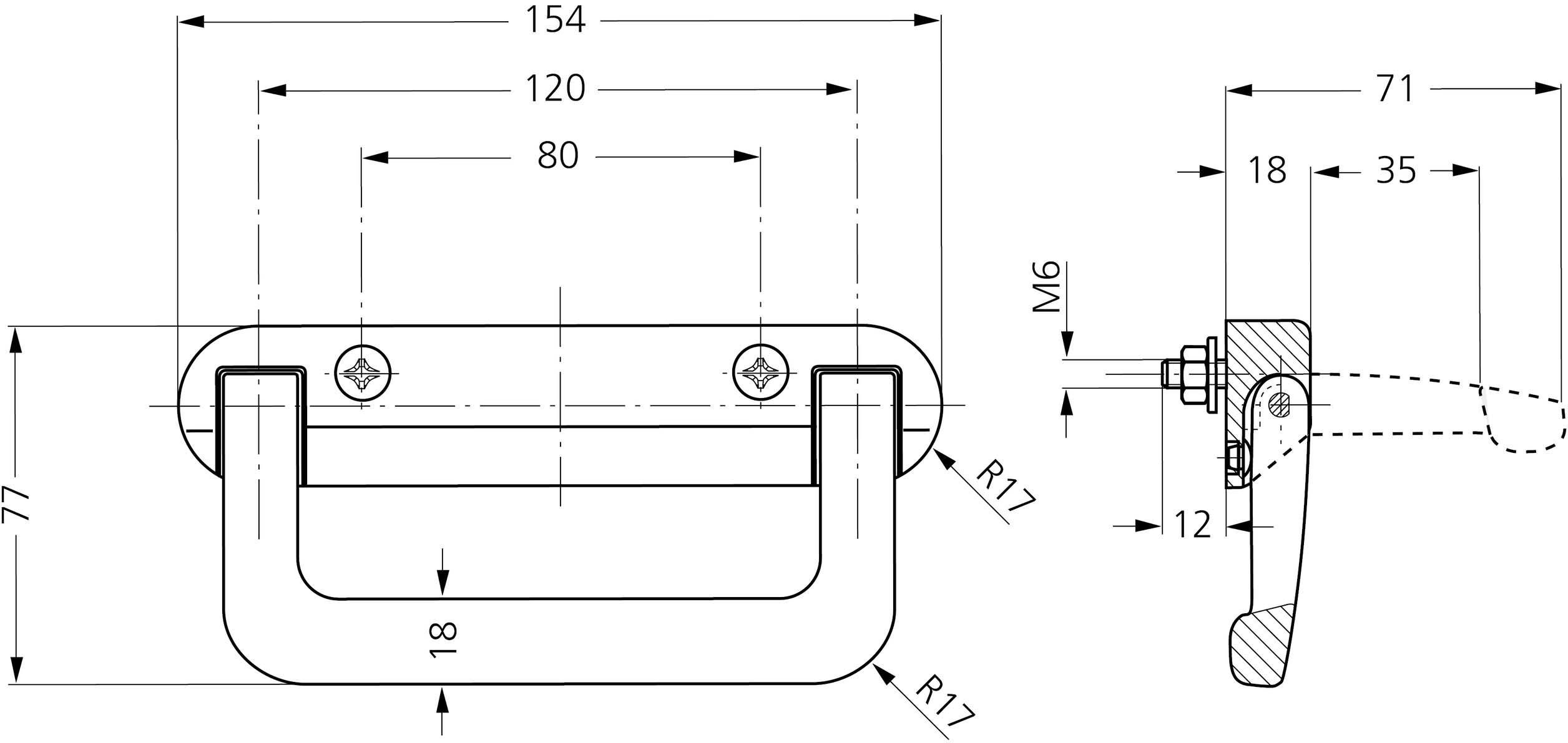

- Dim
(L x W x H) 154 x 77 x 18 mm
- Product type
Folding handle
- Material
Polyamide
- Width
77 mm
- Height
18 mm
- Length
154 mm
- Hole spacing
80 mm
- Factory colour
Black
- Content
2 pc(s)
- Hole Ø
6 mm
- Max. load capacity
300 N
- Type
KK-18.120.84
Documents & Downloads
Datasheet
Datasheet 2343720 Rohde KK-18.120.84 Folding handle Black (L x W x H) 154 x 77 x 18 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343720 Rohde KK-18.120.84 Folding handle Black (L x W x H) 154 x 77 x 18 mm 2 pc(s)
Description
Can be screwed on the housing wall
Plastic folding handle,
self-springback.
Material and surface:
Holder and handle made of highly resilient polyamide PA 6,
glass ball reinforced, black,
Similar to RAL 9005, semi-matt
With fine structure.
Axles and return spring
Stainless steel.
This text is machine translated.
Plastic folding handle,
self-springback.
Material and surface:
Holder and handle made of highly resilient polyamide PA 6,
glass ball reinforced, black,
Similar to RAL 9005, semi-matt
With fine structure.
Axles and return spring
Stainless steel.
This text is machine translated.
Scope of delivery
- Delivery scope
- Including galvanic
- Black Zinc Plated Lower -
- screws (chrome VI free) with
- Phillips M6 x 30 DIN 965,
- DIN 934 nuts with under -
- Washers DIN 125.
