Rohde KT-20.084.2009 Handle Orange (L x W x H) 180 x 20 x 80 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Handle
Material
Aluminium

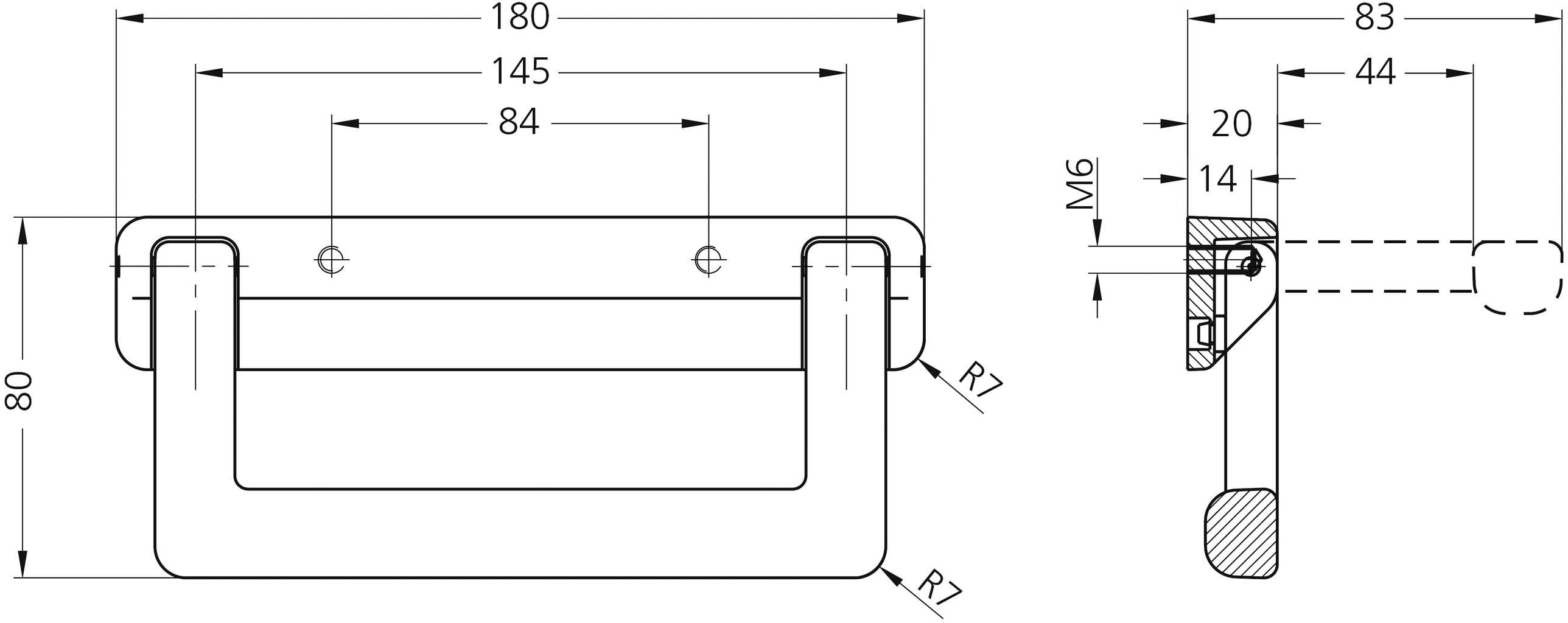

Dim
(L x W x H) 180 x 20 x 80 mm
Width
20 mm
Height
80 mm
Datasheet (PDF)
Highlights & Details
Rohde folding handle made of aluminum, die cast, powder coated, in orange RAL 2009
- Content: 1 pcs.
Technical specifications
- Surface treatment: Powder coated
- Material (material): GD-AlSi9Cu3
- Manufacturer's color: orange
- Mounting method: Internal thread
- Series name: KT-20
- Handle type (series): Folding handle KT
- Hole diameter: M6
- Dim
(L x W x H) 180 x 20 x 80 mm
- Product type
Handle
- Material
Aluminium
- Width
20 mm
- Height
80 mm
- Length
180 mm
- Hole spacing
84 mm
- Factory colour
Orange
- Content
1 pc(s)
- Hole Ø
6 mm
- Max. load capacity
800 N
- Type
KT-20.084.2009
Documents & Downloads
Datasheet
Datasheet 2343728 Rohde KT-20.084.2009 Handle Orange (L x W x H) 180 x 20 x 80 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343728 Rohde KT-20.084.2009 Handle Orange (L x W x H) 180 x 20 x 80 mm 1 pc(s)
Description

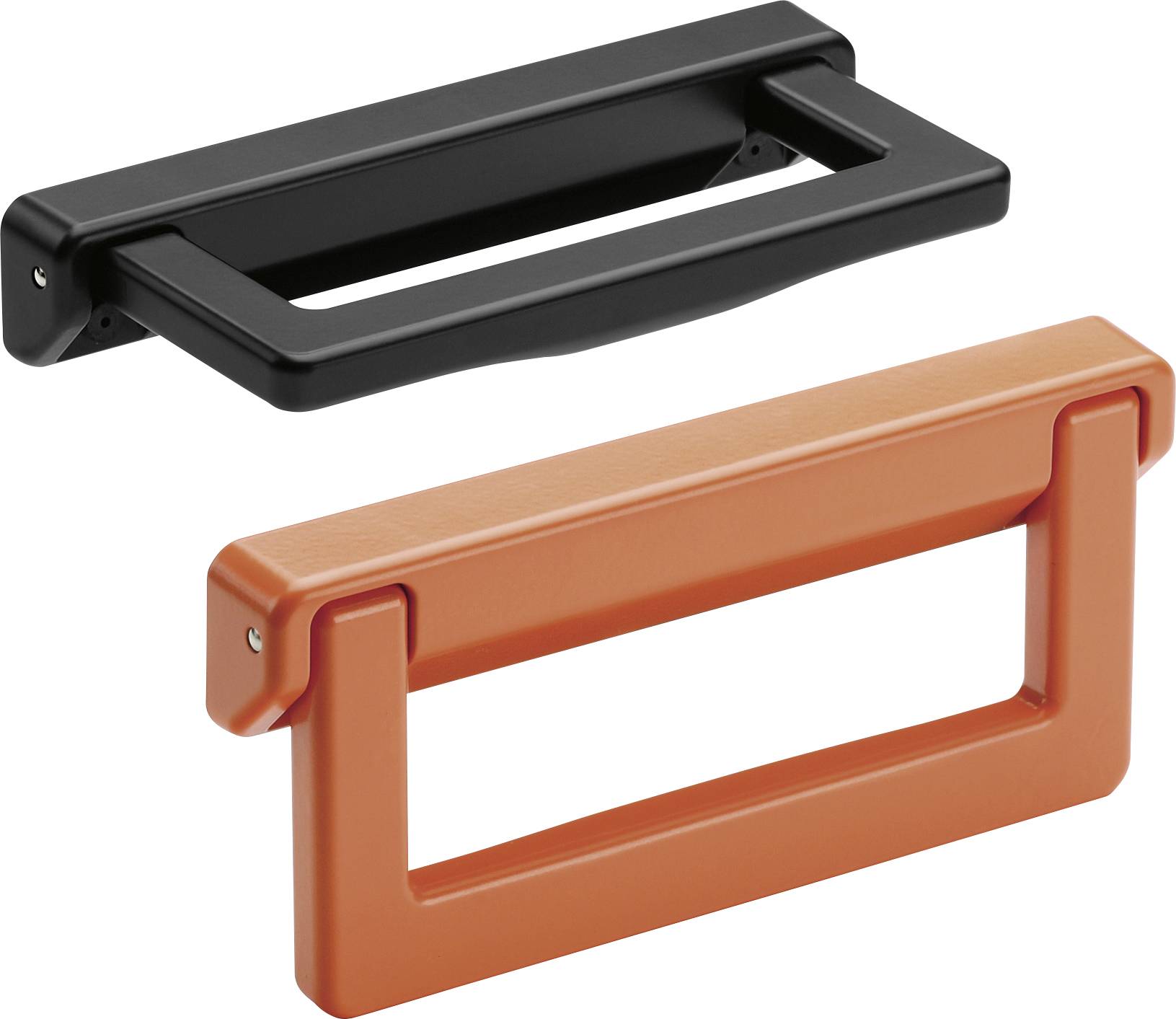

Self-springback
Carry handle made of aluminum for
Screw fastening on the back.
Material and surface:
Holder and handle made of die-cast aluminum
GD-AlSi9Cu3
(Alloy 226).
Powder-coated, semi-matt in
Black (similar to RAL 9005)
Or orange (similar to RAL 2009).
Axles and return spring
Stainless steel.
This text is machine translated.
Carry handle made of aluminum for
Screw fastening on the back.
Material and surface:
Holder and handle made of die-cast aluminum
GD-AlSi9Cu3
(Alloy 226).
Powder-coated, semi-matt in
Black (similar to RAL 9005)
Or orange (similar to RAL 2009).
Axles and return spring
Stainless steel.
This text is machine translated.
