Buy Rohde MO-20.128.01 Machine handle Silver (L x W x H) 141 x 20 x 50 mm 4 pc(s)

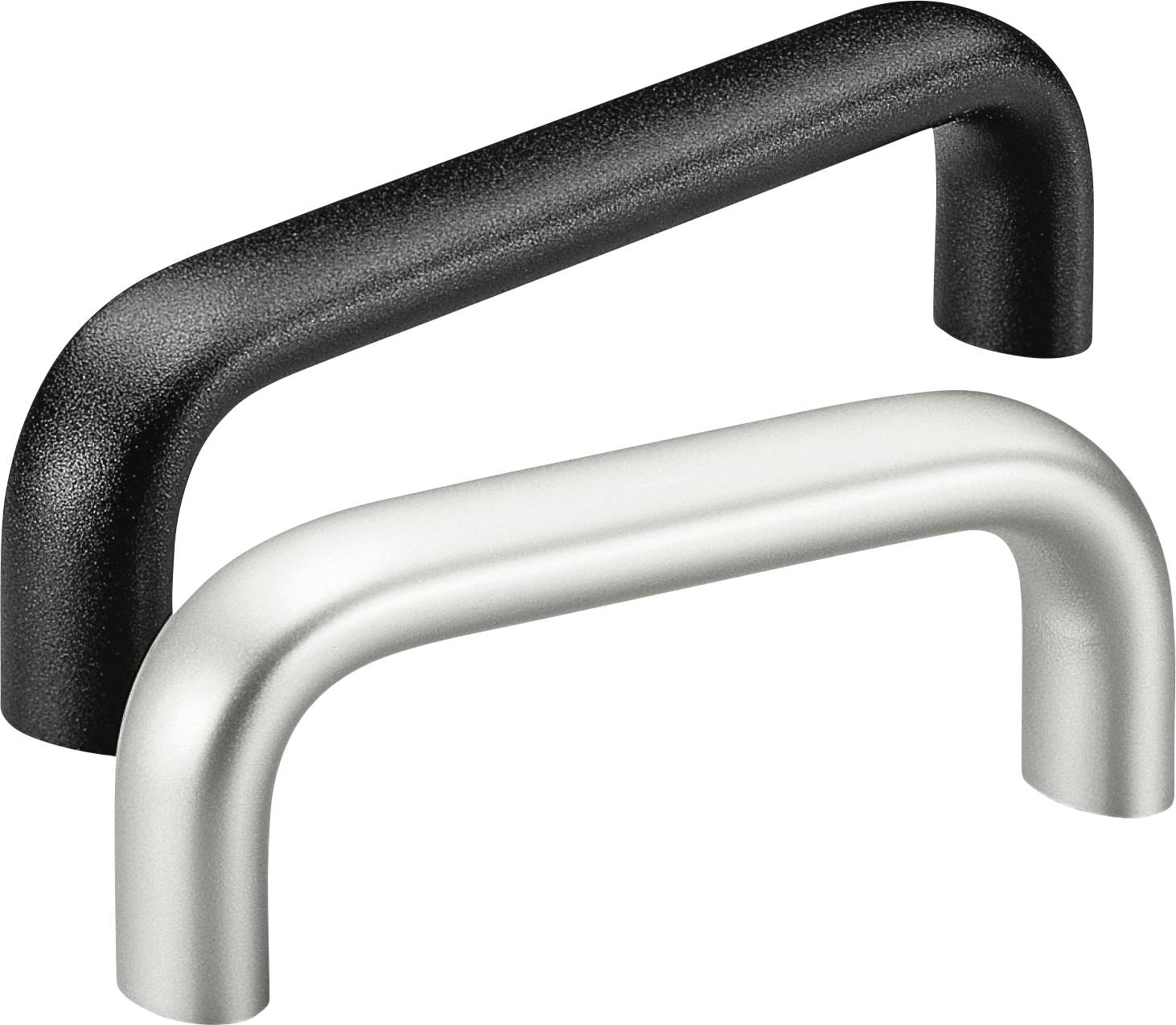

Two cupboard handles, one matte black, the other silver and glossy, positioned side by side on a white background.

Image similar

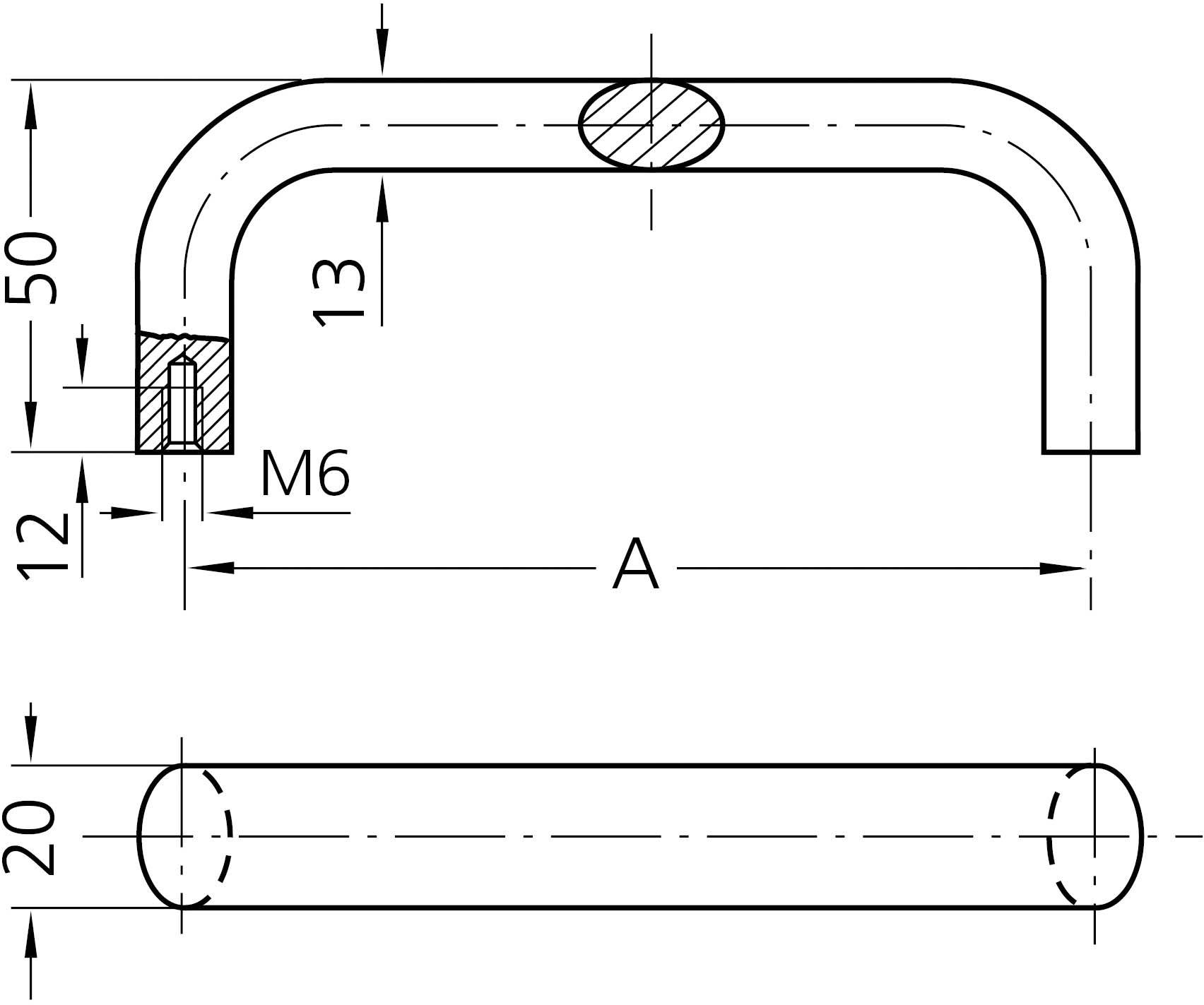

Technical drawing of a curved pipe with dimensions. Top: Bend with diameter 50, M6 hole, length 12, 13 high. Bottom: Length 20.

1/2

Image similar

Product type

Machine handle

Material

Aluminium

Dim

(L x W x H) 141 x 20 x 50 mm

Width

20 mm

Height

50 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Rohde machine handle, made of oval aluminum

Content: 4 pieces

Technical specifications

Surface treatment: Anodized
Material (material): AlMgSi 0.5
Manufacturer color: silver
Mounting method: Internal thread
Series name: MON-20
Handle type (series): Grip series MO
Hole diameter: M6

Dim: (L x W x H) 141 x 20 x 50 mm

Product type: Machine handle

Material: Aluminium

Width: 20 mm

Height: 50 mm

Length: 141 mm

Hole spacing: 128 mm

Factory colour: Silver

Content: 4 pc(s)

Hole Ø: 6 mm

Max. load capacity: 1000 N

Type: MO-20.128.01

Documents & Downloads

Datasheet

Datasheet 2343895 Rohde MO-20.128.01 Machine handle Silver (L x W x H) 141 x 20 x 50 mm 4 pc(s)

User & Safety Instructions

User & Safety Instructions 2343895 Rohde MO-20.128.01 Machine handle Silver (L x W x H) 141 x 20 x 50 mm 4 pc(s)

Description

For machine, device and
Apparatus construction in two surface qualities.
For screw mounting
from front or rear.

Material and surface:
Oval profile aluminum
AlMgSi 0.5.
Standard design:
Surface ground, matt
and natural or black
anodized. Powder-coated with fine structure
in silver or
Black.
Semi-gloss design:
Surface glass-ball-blasted,
satin and natural colors or
black anodized.

This text is machine translated.
