Buy Rohde MO-20.F120.04 Machine handle Black (L x W x H) 133 x 20 x 50 mm 2 pc(s)

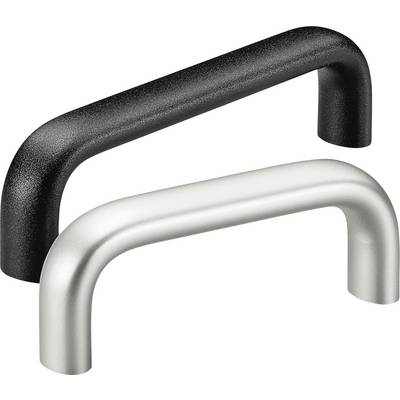

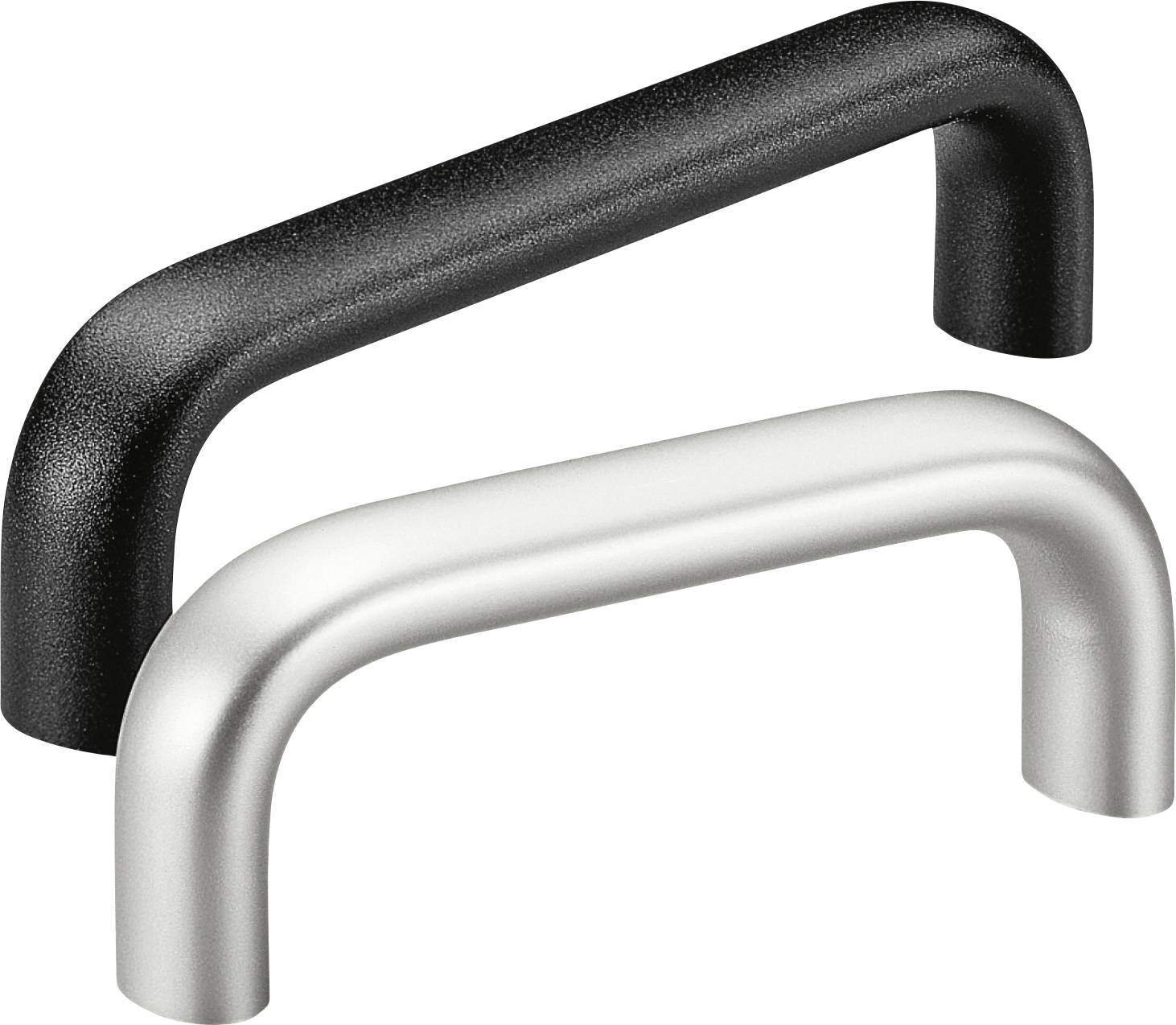

Two door handles: one black, one silver, in a U-shape with a smooth surface.

Image similar

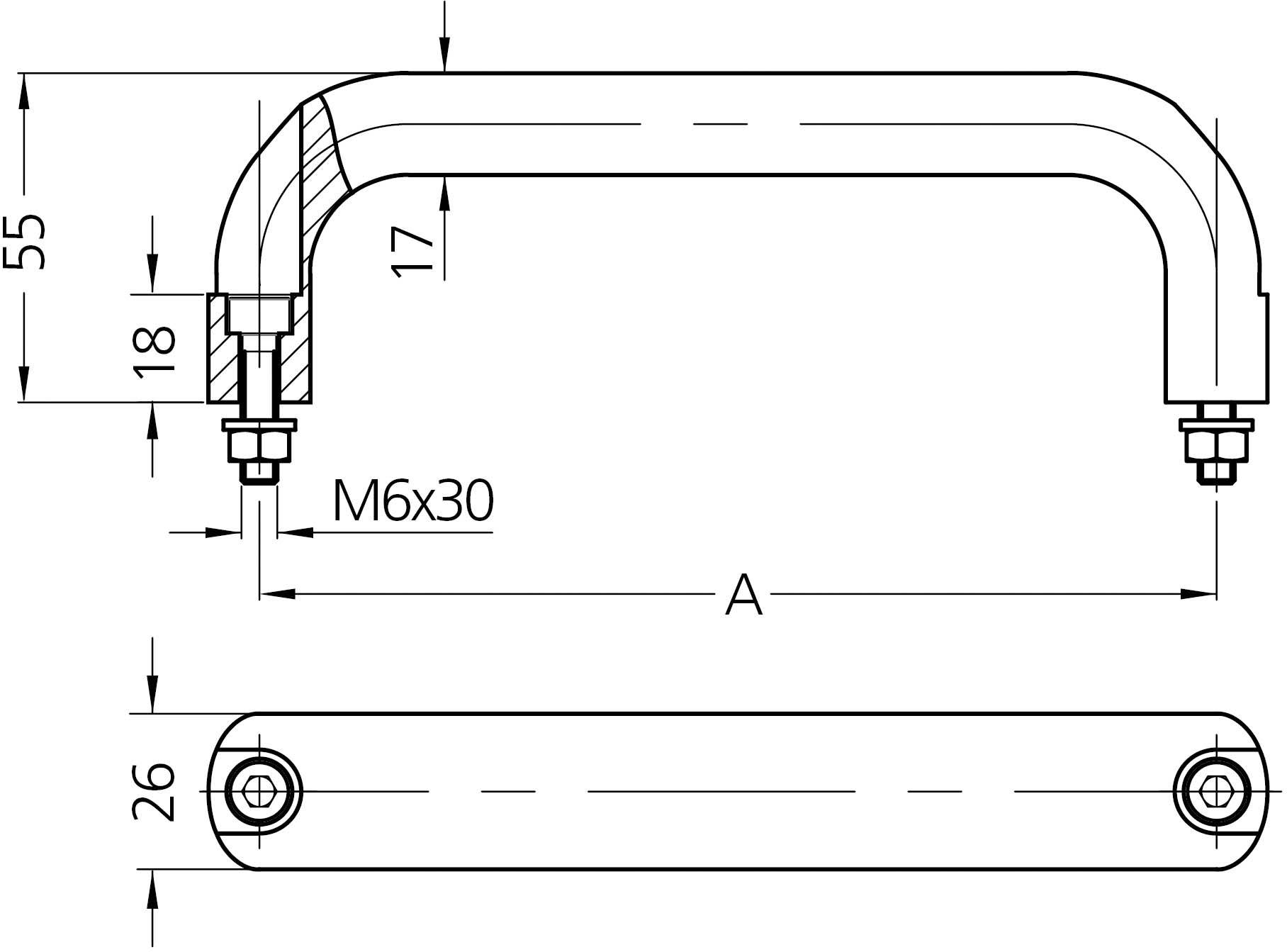

'Technical drawing of a handle with dimensions: 55 mm height, 26 mm width, 18 mm thread length, thread size M6x30. Top view and side view.'

1/2

Image similar

Product type

Machine handle

Material

Aluminium

Dim

(L x W x H) 133 x 20 x 50 mm

Width

20 mm

Height

50 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Rohde machine handle made of oval aluminum., for front mounting, black anodized

Content 2 pcs.

Technical specifications

Surface treatment: Anodized
Material (material): AlMgSi 0.5
Manufacturer color: Black
Mounting method: c:Round bore
Series name: MON-20
Handle type (series): Grip series MO
Hole diameter: M5

Dim: (L x W x H) 133 x 20 x 50 mm

Product type: Machine handle

Material: Aluminium

Width: 20 mm

Height: 50 mm

Length: 133 mm

Hole spacing: 120 mm

Factory colour: Black

Content: 2 pc(s)

Hole Ø: 5 mm

Max. load capacity: 1000 N

Type: MO-20.F120.04

Documents & Downloads

Datasheet

Datasheet 2343907 Rohde MO-20.F120.04 Machine handle Black (L x W x H) 133 x 20 x 50 mm 2 pc(s)

User & Safety Instructions

User & Safety Instructions 2343907 Rohde MO-20.F120.04 Machine handle Black (L x W x H) 133 x 20 x 50 mm 2 pc(s)

Description

For machine, device and
Apparatus construction in two surface qualities.
For screw mounting
from front or rear.

Material and surface:
Oval profile aluminum
AlMgSi 0.5.
Standard design:
Surface ground, matt
and natural or black
anodized. Powder-coated with fine structure
in silver or
Black.
Semi-gloss design:
Surface glass-ball-blasted,
satin and natural colors or
black anodized.
